PDC (Park Distance Control) parking sensor wiring harnesses are critical components connecting ultrasonic sensors to your vehicle's control module. These cables transmit sensor data and power, enabling accurate distance detection during parking maneuvers. Degraded or damaged harnesses cause sensor malfunctions, error codes, and disabled parking assistance systems across Audi, Volkswagen, Skoda, Porsche, and BMW models.

Understanding PDC Wiring Harness Construction

Modern PDC harnesses use multi-conductor shielded cables to prevent electromagnetic interference. The shielding protects low-voltage sensor signals (typically 12V DC) from engine bay interference and electrical noise. Premium harnesses feature UV-resistant insulation rated for -40°C to +125°C, essential for bumper-mounted components exposed to weather extremes. Connector housings use sealed designs with rubber gaskets, preventing moisture ingress that causes corrosion and intermittent faults.

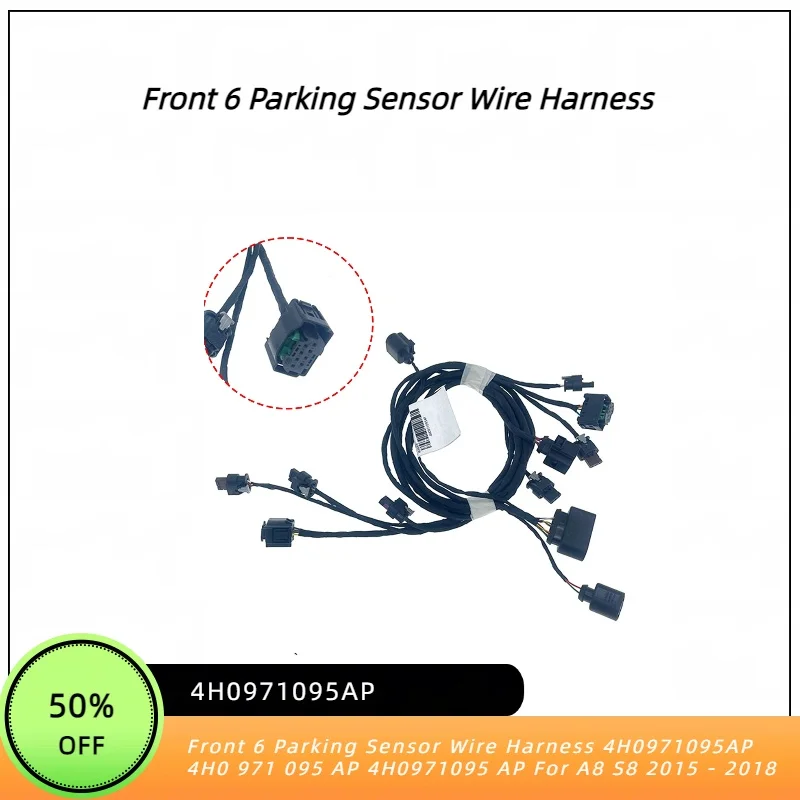

Front harnesses typically accommodate 4-6 sensors, while rear harnesses handle 4 sensors on most applications. Higher-end models like the Front 6 Parking Sensor Wire Harness 4H0971095AP for A8 S8 (2015-2018) support additional sensors for enhanced coverage. The PDC Park Pilot Kit Front Rear 8K OPS Parking Sensor System Kit For Golf 7 MK7 5Q0 919 294 E represents a complete system with both front and rear harnesses plus control module integration.

Vehicle-Specific Compatibility Considerations

VAG group vehicles require precise OEM part number matching due to connector variations across generations. The For A6 S6 C6 4F Rear parking sensor PDC wiring loom 4F0971085 (2005-2008) uses different connectors than later C7-generation A6 models, making cross-generation compatibility impossible without modification. Even within the same model line, mid-cycle refreshes often introduce revised electrical architectures.

Audi A4 and A5 models demonstrate this evolution clearly. The 8K0971095D For A5 (2013-) Front Parking Sensor Wiring Harness serves 8K-chassis vehicles, while the newer 8W0971095B For A4 B9 (2016-2023) Parking Sensor Harness Wiring Loom Front Bumper requires MLB-platform-specific wiring. Golf MK7 variants need generation-specific parts: the For GOLF MK7 Front PDC Parking Aid Wiring Harness 5G0971095M differs from Golf 8 applications requiring 5H0971095S harnesses.

SUV and Commercial Applications

SUV models present unique challenges due to increased ground clearance and bumper size. The For Q5 80A Front Bumper Parking Sensors Wiring Harness 80A971095R features longer cable runs than sedan equivalents, accommodating wider front fascias. Tiguan MK2 applications use 5NA971104P rear harnesses with reinforced strain relief at mounting points, addressing vibration issues common in higher-riding vehicles. The Transporter T6 commercial van requires heavy-duty 7E0971095 front harnesses designed for frequent loading dock use.

Common Failure Modes and Diagnostics

PDC harness failures typically manifest as intermittent sensor warnings, permanent error codes (P3009, P3013 common), or complete system shutdown. Water infiltration through damaged insulation causes resistance changes detectable with multimeter testing. Proper harnesses maintain 50-75 ohm impedance per circuit; deviations indicate corrosion or conductor breakage. Chafing against subframe components gradually wears through insulation, creating short circuits that trigger multiple sensor errors simultaneously.

Cold weather exacerbates brittle insulation problems. Low-quality harnesses use PVC insulation that cracks below -15°C, while OEM-spec harnesses employ cross-linked polyethylene maintaining flexibility to -40°C. The Sensor-Park Assist Cable Repair Kit Front Fits Superb II (2008-2015) 3T0971095B addresses specific failure points with reinforced sections at common wear locations, offering targeted repair without full harness replacement.

Installation Best Practices

Proper routing prevents premature failure. Harnesses must follow factory paths avoiding heat sources like exhaust manifolds and turbochargers. Secure cables every 150-200mm using OEM-style clips; excessive slack causes abrasion against metal brackets during suspension travel. When routing through body panel holes, always use protective grommets to prevent sharp edge damage. Connector orientation matters—reversed connections won't damage electronics but prevent proper sensor detection.

Rear harnesses require particular attention during bumper removal. The For Q5 Rear Bumper Parking Sensor Loom Harness 80A971104K connects behind the rear bumper fascia with limited access. Mark connector positions before disconnection to ensure correct reassembly. Front harnesses like the 4GD971095B 2015-2018 Front bumper radar harness for A6 A7 C7 Q3 integrate with radar modules requiring calibration after installation on equipped vehicles.

BMW-Specific Installation Notes

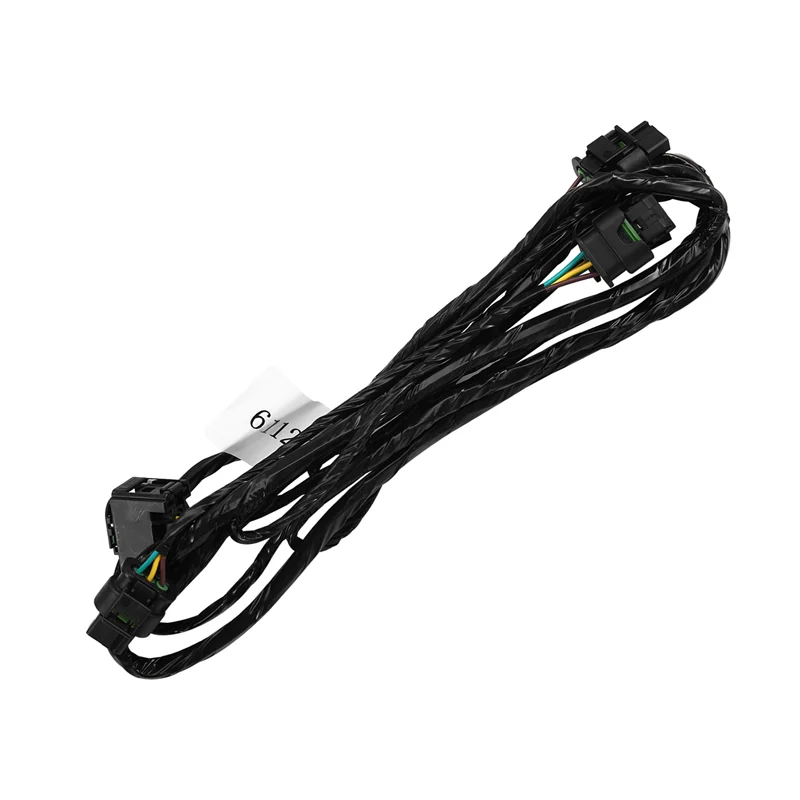

BMW applications use different connector systems than VAG products. The 61129313607 Front Bumper Parking Sensor Wiring Harness for 4 series F82 M4 (2013-2017) features BMW-specific Tyco/AMP connectors incompatible with VAG components. Mercedes applications like the 2215401205 Front Bumper Parking Sensor Wire Harness For W221 S550 CL550 similarly require brand-specific parts. Cross-brand installations always necessitate connector adapters and module reprogramming.

Quality Indicators for Aftermarket Harnesses

Premium aftermarket harnesses replicate OEM specifications precisely. Check for correct wire gauge—typically 22-24 AWG for sensor circuits. Connectors should feature gold-plated terminals preventing oxidation; cheaper harnesses use tin-plated terminals prone to corrosion. Proper harnesses include correct-length pigtails with heat-shrink sealing at solder joints. The presence of ferrite beads on quality harnesses provides additional EMI suppression critical for radar-equipped vehicles.

Verify cable color coding matches factory diagrams. VAG harnesses typically use brown (ground), black/white (signal), and red/black (power) color schemes. Mismatched colors indicate non-OEM manufacturing that may use incompatible wire specifications. Connector shell markings should include part numbers and manufacturer codes; unmarked connectors suggest lower-quality tooling producing dimensional inaccuracies causing poor terminal contact.

Adapter Cables and System Integration

Certain applications require adapter cables for retrofitting or module replacement. The For A4 A8 S8 Adapter Cable Loom 4H0971086C bridges different module generations, enabling updated control units in older chassis. These adapters handle pin-out differences and voltage conversions between incompatible systems. Passat B8 and Arteon models sometimes share harnesses; the 5QB971566 wiring set cable air conditioning Harness For Arteon Passat B8 KODIAQ demonstrates platform commonality across Volkswagen Group brands.

Electric vehicle applications introduce unique requirements. The 4K Rear Parking Sensor Wiring Harness For ID.4 E21 11B971104A accommodates high-voltage system proximity with enhanced insulation and routing isolation. EV harnesses avoid EMI-sensitive areas near battery management systems and inverter modules, requiring longer cable runs and additional shielding layers.

Key Takeaways

• Always verify exact OEM part numbers against your vehicle's build data—generation and model year determine compatibility
• Quality harnesses feature shielded construction, UV-resistant insulation rated -40°C to +125°C, and sealed connectors with gold-plated terminals
• Front and rear harnesses differ in sensor count (4-6 front, typically 4 rear) and cable length based on vehicle size
• Proper installation requires factory routing paths, 150-200mm clip spacing, and protective grommets at body penetrations
• BMW and Mercedes applications need brand-specific harnesses with incompatible connector systems requiring adapters for cross-platform use

Frequently Asked Questions

Can I use a Golf MK7 harness in a Golf MK8?

No, Golf 8 models require 5H0971095S harnesses with updated connector configurations and different pinouts than MK7's 5G0971095M parts. Module communication protocols changed between generations, making cross-compatibility impossible without coding errors.

Why do parking sensors fail more in winter?

Cold temperatures below -15°C cause inferior PVC insulation to crack, exposing conductors to moisture and salt spray. Quality harnesses use cross-linked polyethylene maintaining flexibility to -40°C. Thermal cycling between extreme temperatures accelerates connector seal degradation, allowing corrosion.

Do front and rear harnesses interchange?

No, front harnesses typically accommodate 4-6 sensors with longer cable runs, while rear harnesses handle 4 sensors with shorter lengths. Connector pinouts differ, and control modules assign specific addresses to front versus rear sensor circuits. Using incorrect harnesses causes permanent fault codes.

What causes multiple sensor errors simultaneously?

Harness short circuits from chafed insulation trigger multiple errors as damaged conductors contact ground or each other. Main harness connector corrosion affects all downstream sensors. Control module ground faults also manifest as system-wide failures requiring harness continuity testing and resistance measurements.
