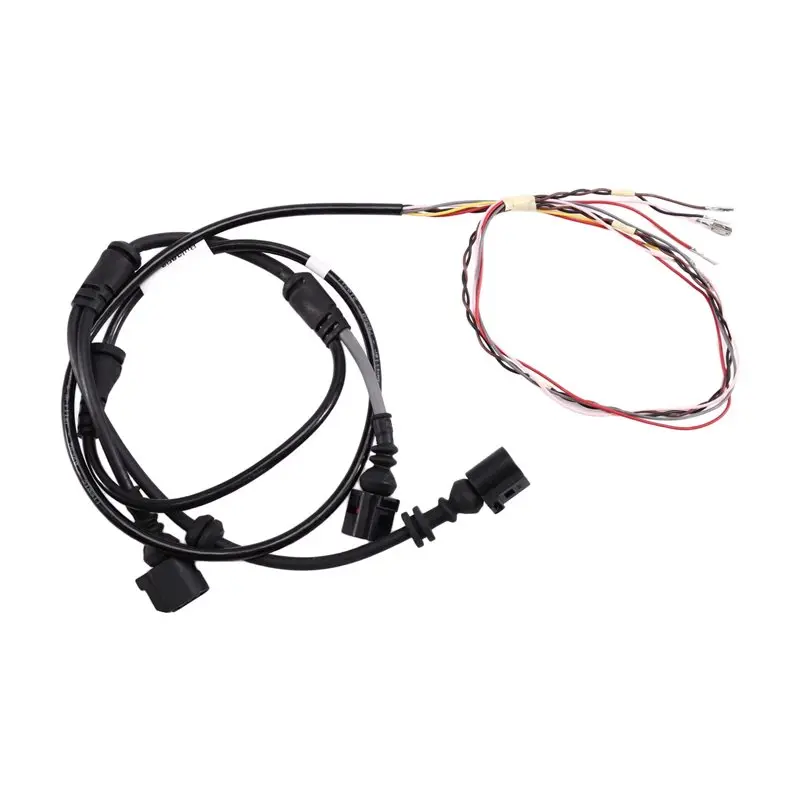

The 4F0972252A is a right front wheel speed sensor wiring harness designed specifically for Audi A6, S6, and A6L models (chassis codes 4F, 4F2, 4F5) manufactured between 2004-2011. This harness features green and black wires that connect the right front wheel speed sensor to the ABS control module at pins T47/41 (black) and T47/26 (green), making it a critical component for proper ABS and traction control operation.

Technical Specifications and Connector Details

The harness utilizes a precise wire color coding system where the black wire terminates at ABS control module pin T47/41, while the green wire connects to pin T47/26. This color-coded configuration ensures proper signal transmission from the wheel speed sensor to the ABS control module. The wiring is constructed with plastic-coated conductors designed to withstand harsh underbody conditions including moisture, road salt, and temperature fluctuations.

Rubber grommets are integrated into the harness design at suspension mounting points, providing strain relief and preventing wire chafing against metal components during suspension travel. The harness merges with other vehicle wiring systems using fabric tape wrapping, which protects against abrasion while maintaining flexibility. This OEM-style construction ensures compatibility with factory routing paths and mounting points.

Right Front vs Left Front Harness Differences

The 4F0972252A For A6 S6 A6L 4F 4F2 4F5 FRONT SPEED SENSOR WIRING SET is specifically engineered for the right front position. The corresponding left front harness carries part number 4G0972251E and features yellow and red wire colors instead of green and black. These harnesses are not interchangeable due to different connector pin assignments, wire lengths, and routing requirements specific to each wheel position.

When diagnosing ABS faults, it's essential to identify which side requires replacement. Fault codes referencing the right front wheel speed sensor (typically C1141 or similar) indicate potential issues with the 4F0972252A harness, while left front codes point to the 4G0972251E harness. Mixing these components will result in continued ABS malfunctions and illuminated warning lights.

Common Failure Modes and Diagnostic Indicators

Speed sensor wiring harnesses fail primarily due to wire insulation breakdown from repeated flexing during suspension movement. The front wheel area experiences constant articulation, causing fatigue in the plastic coating over time. Corrosion at connector pins is another frequent issue, particularly in regions where road salt is used during winter months. Water intrusion through compromised grommets accelerates wire corrosion.

Symptoms of harness failure include intermittent or permanent ABS warning light illumination, traction control system malfunctions, and inaccurate speedometer readings. Advanced diagnostic equipment may show implausible wheel speed signals or complete loss of communication from the affected sensor. Visual inspection often reveals cracked insulation, exposed copper wire, or green corrosion deposits at connector terminals.

OEM Repair Procedures and Installation Approach

Audi's official repair methodology emphasizes complete harness replacement rather than wire splicing or soldering repairs. This approach ensures long-term reliability and maintains the electrical characteristics necessary for accurate wheel speed signal transmission. Attempting to splice damaged sections can introduce resistance changes or signal interference that compromises ABS system performance.

Installation requires routing the new harness along factory paths, securing rubber grommets to designated suspension mounting points, and ensuring proper connector seating at both the wheel sensor and ABS control module ends. The harness must have sufficient slack to accommodate full suspension travel without tension. Verify that fabric tape wrapping is intact where the harness merges with other wiring bundles to prevent chafing against sharp edges.

Pin Contact Verification

Before connecting the new harness, inspect ABS control module pins T47/41 and T47/26 for corrosion, bent contacts, or debris. Clean pins using electrical contact cleaner and ensure they maintain proper spring tension for secure connection. Similarly, inspect the wheel speed sensor connector for damage or contamination. Poor pin contact at either end will cause continued fault codes despite new harness installation.

Compatibility Across Model Variants

The 4F0972252A harness fits all Audi A6, S6, and A6L variants built on the C6 platform (chassis codes 4F, 4F2, 4F5) from model years 2004 through 2011. This includes both sedan (4F2) and Avant wagon (4F5) body styles. The harness is compatible with all engine configurations offered during this production run, as the ABS system architecture remained consistent across variants.

Verify your vehicle's chassis code using the VIN plate or service documentation before ordering. While the model year and body style provide general guidance, the chassis code ensures precise compatibility. Some regional market variations may exist, particularly for the A6L long-wheelbase version primarily sold in China, though the front speed sensor wiring architecture remains standardized.

Quality Indicators for Replacement Harnesses

Aftermarket replacement harnesses should feature proper wire gauge matching OEM specifications, correct connector shell design with positive locking mechanisms, and appropriate grommet durometer for secure suspension mounting. The plastic insulation must be rated for automotive underbody temperature ranges, typically -40°C to +125°C. Wire color coding should match factory specifications to prevent installation errors.

Examine connector pin material and plating quality, as inferior metallurgy leads to premature corrosion and contact resistance issues. Genuine OEM connectors use gold or tin plating on copper alloy pins for corrosion resistance. The fabric tape used at harness merge points should be tightly woven with adhesive backing that withstands temperature cycling without becoming brittle or losing adhesion.

Key Takeaways

• Part number 4F0972252A is specific to right front wheel position with green/black wire colors and designated ABS module pins T47/26 and T47/41
• Left front position uses different part number 4G0972251E with yellow/red wires; these harnesses are not interchangeable
• OEM repair procedures mandate complete harness replacement rather than splicing or soldering damaged sections
• Compatible with all Audi A6/S6/A6L models on C6 platform (4F, 4F2, 4F5 chassis codes) from 2004-2011
• Proper installation requires correct routing with secure grommet mounting and verified pin contact at both connectors

Frequently Asked Questions

Can I repair damaged wires in the 4F0972252A harness instead of replacing it?

While technically possible, Audi's official repair procedures specify complete harness replacement rather than splicing or soldering. Wire repairs can introduce resistance changes or signal interference that compromise ABS system accuracy and long-term reliability. The investment in a complete replacement harness ensures proper electrical characteristics and durability.

How do I confirm whether I need the right or left front speed sensor harness?

Diagnostic trouble codes from your scan tool will specify which wheel position is affected. The 4F0972252A serves the right front wheel with green and black wires, while the left front uses part 4G0972251E with yellow and red wires. Visual inspection of wire colors at the damaged area can also confirm which harness you need.

Will this harness fit both sedan and wagon body styles?

Yes, the 4F0972252A harness is compatible with both sedan (4F2 chassis) and Avant wagon (4F5 chassis) variants, as well as the A6L long-wheelbase version. The front suspension and ABS architecture remained consistent across all body styles for the C6 platform from 2004-2011.

What causes these harnesses to fail prematurely?

The primary failure mechanism is wire insulation breakdown from repeated flexing during suspension articulation. Corrosion at connector pins from water intrusion through compromised grommets is the secondary failure mode, particularly in regions using road salt. Regular inspection of grommet condition and connector sealing can extend harness lifespan.
