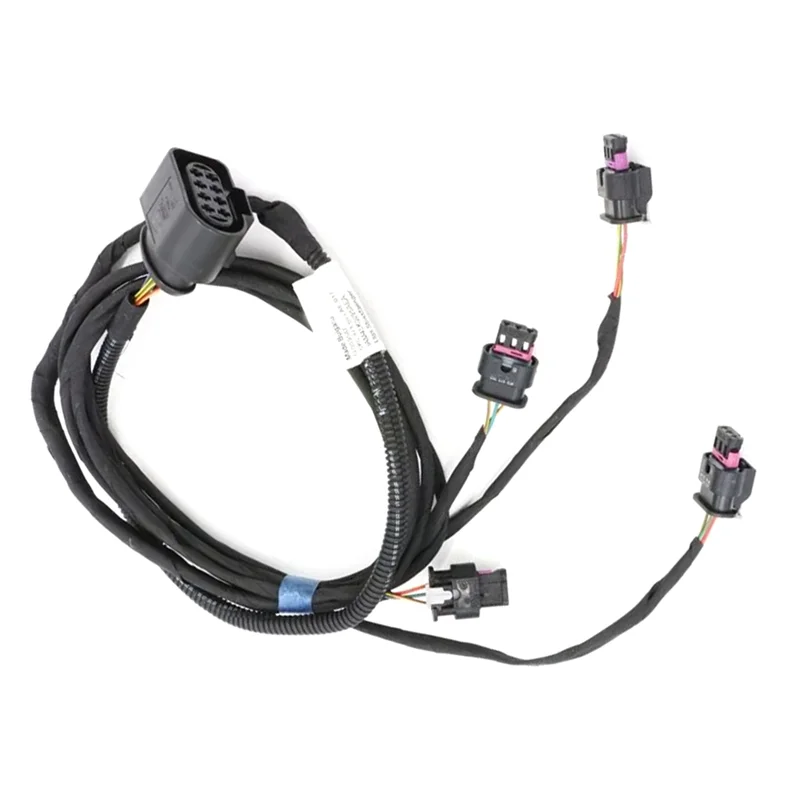

The Front Bumper Parking Sensor Wiring Cable Harness For Golf 6 MK6 2009-2013 5K0971095AE 5K0971095M serves as the communication backbone between your parking distance control sensors and the vehicle's main computer. This harness connects four front bumper sensors to the PDC module, transmitting ultrasonic data that alerts you to obstacles during parking maneuvers.

Understanding Part Number Variations

The Golf 6 MK6 platform uses two primary part numbers for front parking sensor harnesses: 5K0971095AE and 5K0971095M. Both variants are functionally identical and directly interchangeable across all Golf 6 models from 2009-2013. The letter suffix indicates production revision dates, not functional differences. Volkswagen updated connector sealing and wire gauge specifications during the production run, but both versions maintain identical pin configurations and electrical specifications.

The 5K0 prefix identifies this as a VW Group component designed specifically for the MQB-predecessor platform. The 971 designation indicates wiring harness category, while 095 specifies front bumper PDC application. This standardized numbering helps ensure correct fitment when ordering replacement parts.

Fitment Specifications and Compatibility

This harness fits all Golf 6 MK6 variants equipped with factory parking sensors from model years 2009 through 2013. This includes base models retrofitted with PDC, as well as GTI, GTD, and R models with factory-installed systems. The harness connects to four parking sensors mounted in the front bumper cover at standardized spacing intervals of approximately 40-50cm between sensors.

The connector end features a 12-pin Volkswagen-specific connector that mates with the main PDC control module mounted behind the front bumper reinforcement bar. Wire length measures approximately 180-200cm from the central connector to the furthest sensor position, accommodating the Golf 6's bumper dimensions. Each sensor lead includes weatherproof connectors with rubber seals to prevent moisture intrusion.

Common Failure Points and Symptoms

Front bumper parking sensor harnesses fail primarily due to water ingress at connector points and physical damage from front-end impacts or improper bumper removal. Symptoms include intermittent PDC warnings, constant beeping, specific sensor failures, or complete system malfunction. The dashboard typically displays a parking sensor fault message when harness issues occur.

Wire chafing occurs where the harness routes through bumper mounting brackets, particularly on vehicles driven in harsh climates. Salt exposure accelerates connector corrosion on the sensor-side weatherpack connectors. The central 12-pin connector rarely fails unless subjected to water damage during pressure washing or flood conditions.

Installation Considerations

Replacing the front parking sensor harness requires complete front bumper removal on the Golf 6 MK6. This involves disconnecting fog light connectors, removing wheel arch liner screws, and unclipping the bumper from its mounting points. The process typically takes 45-60 minutes for experienced DIY mechanics with proper tools.

The harness routes behind the bumper reinforcement bar and requires careful positioning to avoid interference with the crash bar and air conditioning condenser. Secure all clips properly to prevent wire movement that could cause abrasion failures. Test all four sensors individually after installation using VCDS or dealer diagnostic equipment to verify proper signal transmission.

Apply dielectric grease to all connector pins before mating to enhance corrosion resistance and electrical conductivity. Ensure the central connector clicks firmly into place and verify the locking tab engages completely. Route sensor leads through the factory guide channels to maintain proper clearance from moving components.

OEM vs Aftermarket Quality Indicators

Genuine VW harnesses feature multi-strand copper wire with automotive-grade insulation rated for -40°C to +125°C temperature ranges. The wire gauge meets VW specifications for signal integrity across the harness length. Aftermarket versions may use lower-grade PVC insulation that becomes brittle in cold climates, leading to premature cracking and wire exposure.

Examine connector molding quality carefully. OEM-specification connectors use glass-filled nylon with precise tolerances for weatherproof sealing. Budget aftermarket units often feature softer plastic that may not maintain seal integrity over time. The rubber seals should be supple and precisely fitted to the connector housing with no gaps or compression set.

Wire color coding should match VW factory standards: typically black, brown, blue, and yellow for the four sensor positions. Inconsistent color coding complicates troubleshooting and may indicate non-compliant manufacturing. The 12-pin connector must be keyed correctly to prevent reverse insertion into the PDC module.

Diagnostic and Testing Procedures

Before replacing the harness, verify sensor functionality by testing each unit individually with a multimeter set to resistance mode. Functional sensors typically measure 300-600 ohms resistance at room temperature. A reading outside this range indicates sensor failure rather than wiring issues.

Check harness continuity by disconnecting both ends and measuring resistance between corresponding pins. Readings should show less than 1 ohm resistance for each wire. Infinite resistance indicates an open circuit within the harness. Test for short circuits between adjacent wires and between wires and ground—any continuity indicates harness damage requiring replacement.

Key Takeaways

• Part numbers 5K0971095AE and 5K0971095M are directly interchangeable across all 2009-2013 Golf 6 MK6 models
• Complete front bumper removal is required for harness replacement, typically requiring 45-60 minutes
• Common failure points include connector corrosion and wire chafing at mounting bracket contact points
• OEM-specification harnesses use automotive-grade wire insulation rated for -40°C to +125°C
• Proper routing through factory channels prevents premature wear and interference issues

Frequently Asked Questions

Can I use this harness on Golf 5 or Golf 7 models?

No, the 5K0971095AE/M harness is specifically designed for Golf 6 MK6 (2009-2013) with unique connector configurations and wire lengths. Golf 5 uses the 1K0 part number series, while Golf 7 uses 5G0-series harnesses with different pin layouts and sensor spacing.

Will this harness work if I'm retrofitting parking sensors to a base model Golf 6?

Yes, provided you also install four compatible PDC sensors and have the PDC control module coded via VCDS to activate the parking assist function. The harness alone won't enable PDC functionality without proper sensors, module, and coding.

How do I identify if my parking sensor problem is the harness or the sensors themselves?

Use a multimeter to test each sensor's resistance (should read 300-600 ohms) and check harness continuity. If sensors test within specification but you still have faults, the harness is likely defective. VCDS diagnostic software can identify which specific sensor position is reporting errors.

What tools are needed to replace this harness?

You'll need T25 and T30 Torx drivers, a 10mm socket, flat-blade screwdriver for clips, and optionally a trim removal tool set. VCDS or equivalent diagnostic software is recommended for post-installation testing and fault code clearing.
