Upgrading factory infotainment systems requires specialized retrofit cables that maintain OEM integration while enabling modern features like CarPlay, Android Auto, and navigation upgrades. These harnesses bridge the gap between legacy head units and contemporary connectivity, using precise connector standards, HSD LVDS video protocols, and CAN bus integration across BMW CIC/NBT/EVO, VW MIB/MIB2, Audi MQB, and Mercedes NTG platforms.

Understanding HSD Cable Technology and Applications

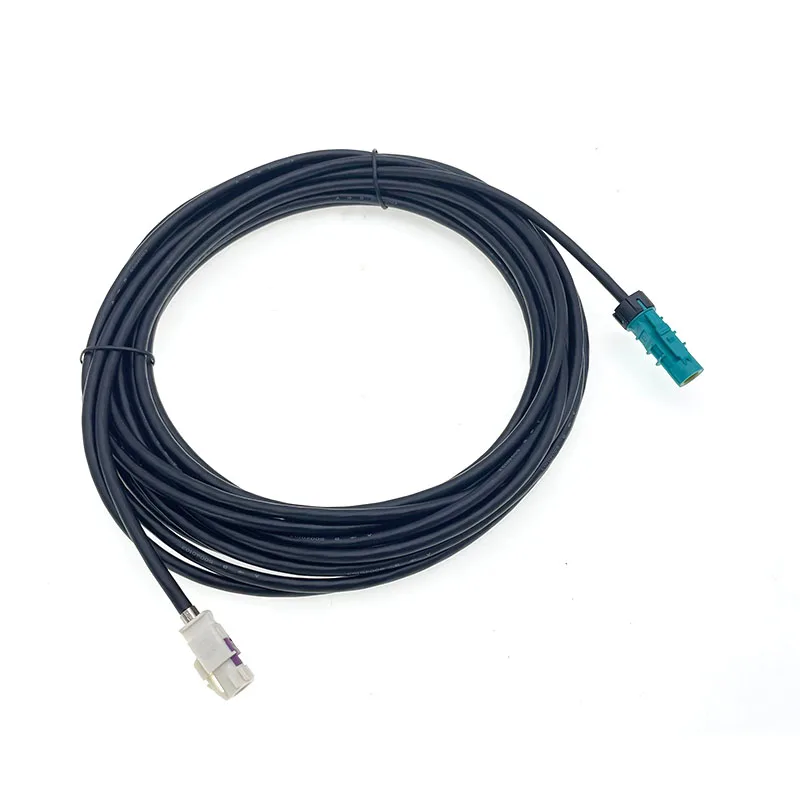

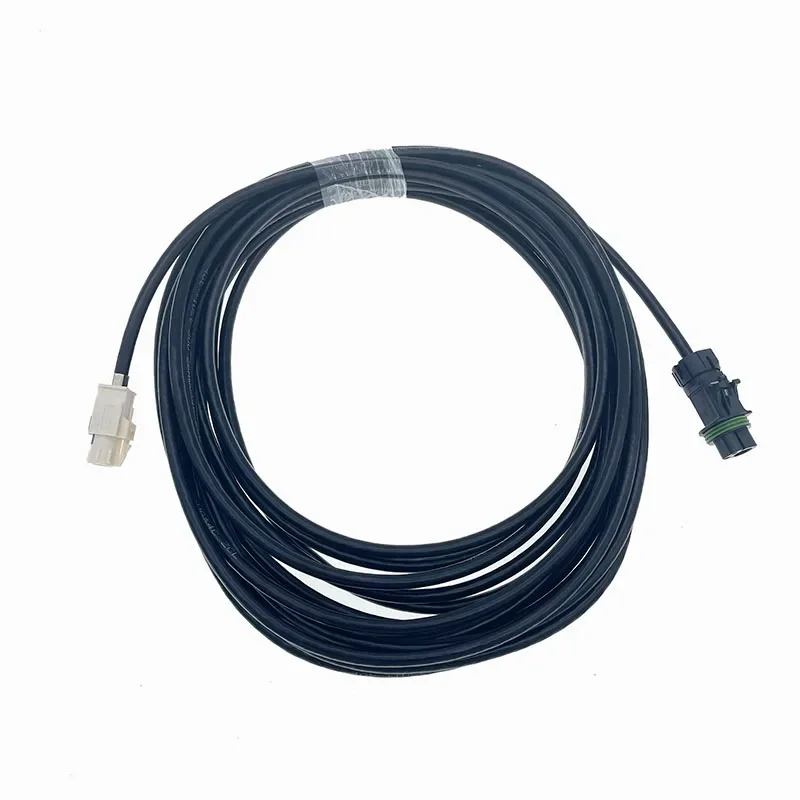

High-Speed Data (HSD) cables form the backbone of modern infotainment retrofits, transmitting LVDS video signals between head units, displays, and auxiliary modules. Cable length matters critically—the HSD Wire LVDS Cable 1m for F20 F22 F34 F32 F15 F16 X5 X6 NBT EVO suits compact installations, while the 6.5M Camera harness For F07 F10 F11 F12 F01 F02 F03 accommodates rear camera routing in large sedans. Most applications require 0.8m to 3.5m lengths, with longer runs risking signal degradation.

LVDS (Low-Voltage Differential Signaling) technology ensures clean video transmission with minimal electromagnetic interference. The HUD Head Up Display cable LVDS Video Line harness for G30 G31 G12 G11 demonstrates specialized applications where precise signal timing prevents display flickering. Match cable impedance to your specific head unit—CIC systems use different specifications than NBT EVO units.

VW/Audi MQB Platform Retrofit Solutions

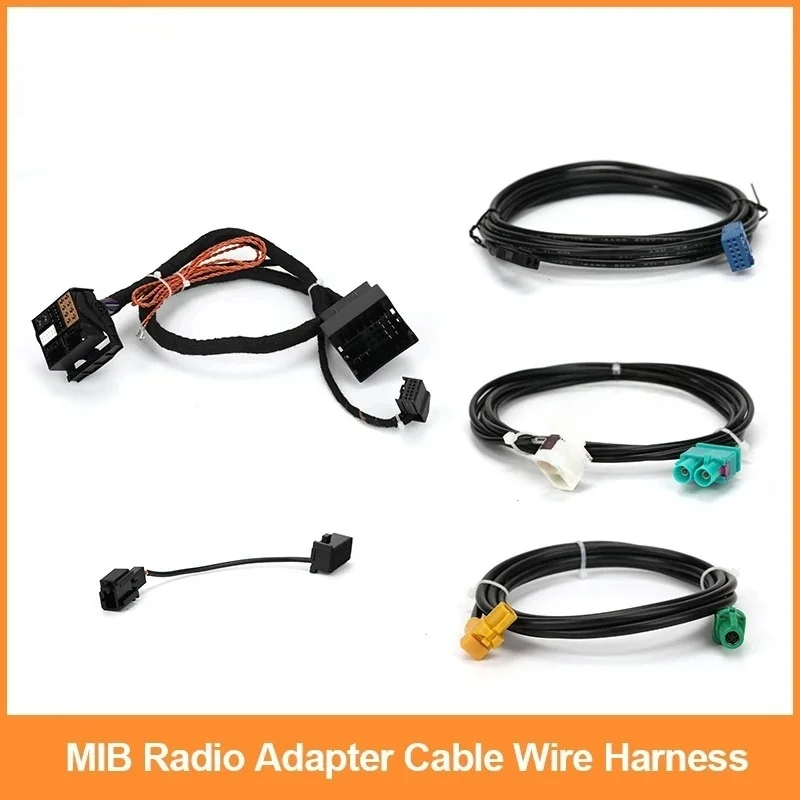

Volkswagen MQB vehicles (Golf MK7, Passat B8, Tiguan) use standardized Quadlock connectors requiring specific harness adapters. The MQB CAR MIB2 STD2 ZR NAV Discover Pro Radio Adapter Cable Wire harness includes essential 2-to-2 cable configurations maintaining vehicle CAN bus communication. OEM part number 5QD036726E references the factory USB/AUX module used in Golf MK7 applications.

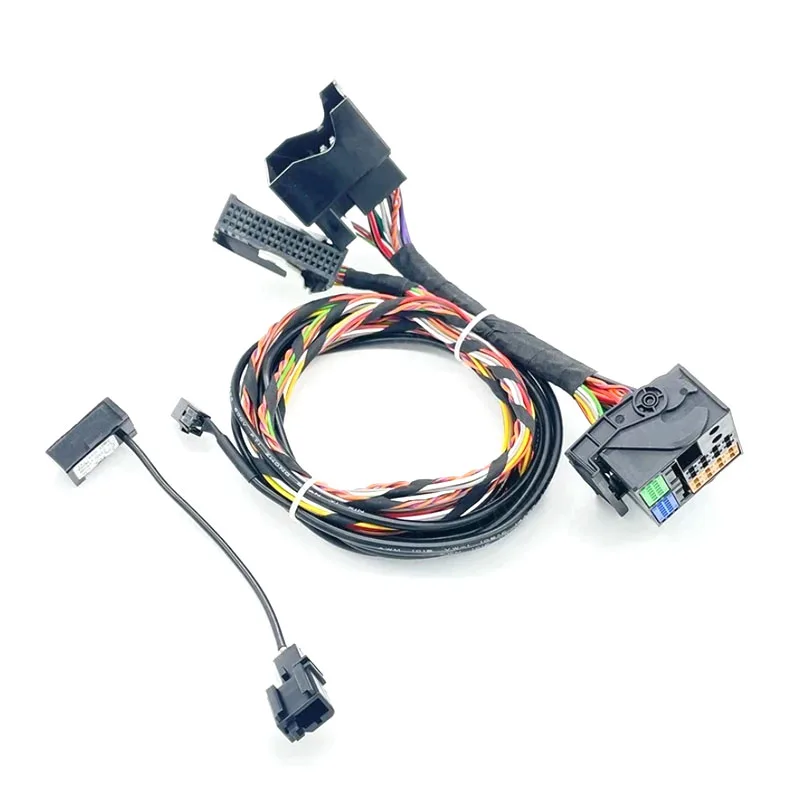

The for MIB Carplay Media AUX USB Socket Switch AMI Install Plug Button Harness for Golf MK7 5QD036726E enables plug-and-play CarPlay integration without coding. MIB2 systems require proper button harness connections to enable media source switching. For older PQ-platform vehicles (Golf MK5/MK6, Passat B6), ISO-to-Quadlock adapters convert factory wiring for RCD330/RCD340G head unit installations.

The Android Auto Carplay Button New Upgrade RCD330 RCD330G Plus Car Radio With Adapter English For Passat B6 GOLF MK5 MK6 provides complete retrofit packages including necessary harnesses. RCD330 units from Desay (187B with 1G RAM) or Noname (280B) variants require verification of rear USB port compatibility and rearview camera harness adaptation before purchase.

BMW F/G-Series Navigation and iDrive Upgrades

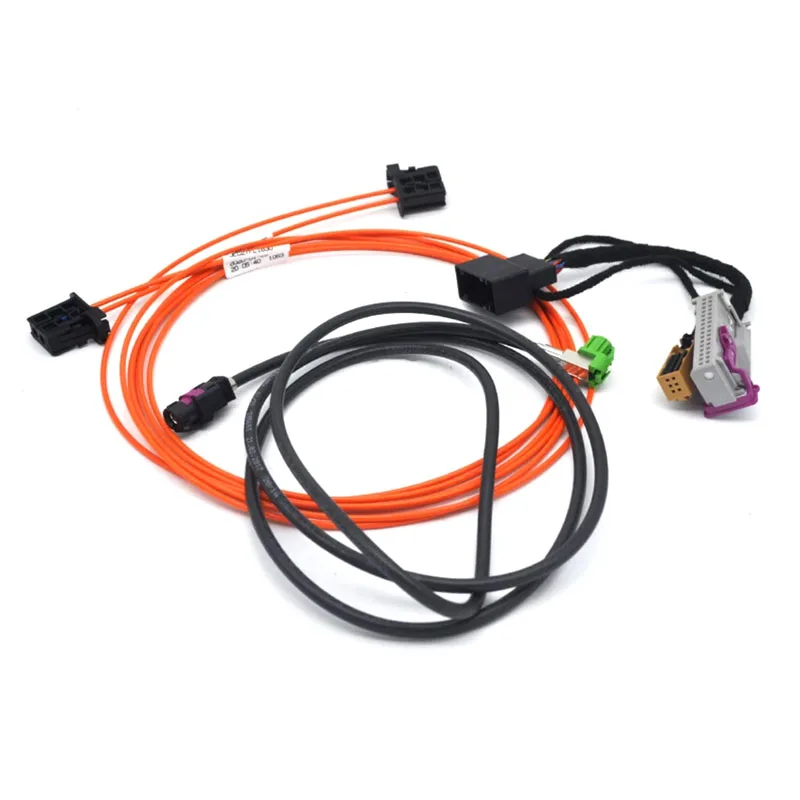

BMW's modular infotainment architecture from CIC through NBT EVO to MGU systems requires generation-specific harnesses. The Retrofit OABR Adapter cable for EVO ID5 ID6 Navigation F30 F25 F10 F01 F32 enables optical fiber connection conversion when upgrading from NBT to EVO systems. OABR (Optical Audio Bus Ring) carries audio signals through MOST (Media Oriented Systems Transport) protocols.

Upgrading from CIC to NBT requires multiple components: video cables, USB socket adapters, and touch controller harnesses. The Retrofit HSD cable USB socket Cable For CIC NBT F30 F35 F31 E90 E70 1.5m handles video transmission, while separate Plug&play touch idrive retrofit navi adapter kcan2 For F10 F20 F30 F25 NBT units manage controller integration. KCAN2 (K-line CAN bus 2) communication ensures proper vehicle system messaging.

Audio system retrofits demand specific harnesses—the Retrofit fibre 5m cable For F10 F01 F25 F15 F30 Logic 7 HIFI and Retrofit adaptor cable For F10 F01 F34 F15 F30 Logic 7 M3 maintain premium audio functionality when upgrading head units. Logic 7 amplifiers require maintained MOST connections or sound quality degrades significantly.

HUD and Digital Cluster Integration

Head-Up Display retrofits require dedicated LVDS harnesses maintaining precise timing specifications. The HUD Head Up 6WB digital cluster retrofit cable For 5 er 7er series G12 G30 enables virtual cockpit upgrades in G-series vehicles. These installations demand calibration through BMW diagnostic software post-installation.

Camera integration uses dedicated HSD harnesses—the Side front bump Camera Wiring Harness WIRE For 5 SER F10 F11 & LCI 2009-2017 maintains compatibility across pre-LCI and LCI (Life Cycle Impulse) model variants. BMW part number 9244256 references the E70 X5 HSD cable standard used in multiple applications.

Mercedes-Benz NTG System Retrofits

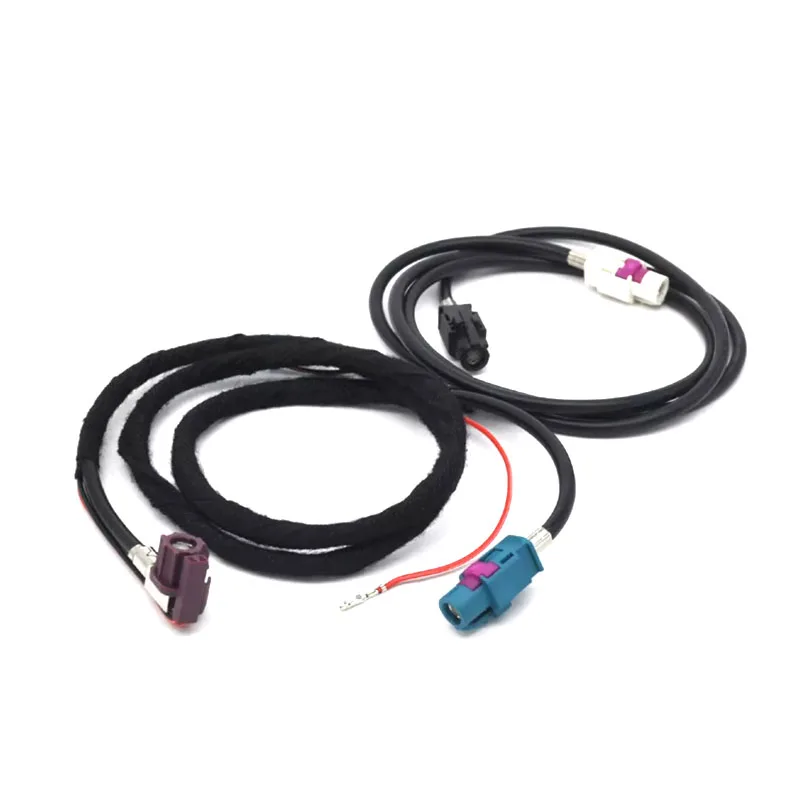

Mercedes NTG (New Telematic Generation) systems progressed from NTG4 through NTG6, each requiring specific harness configurations. The Retrofit NTG5.5 HSD USB Cable Kit For C-class W205 GLC E W213 provides complete wiring for modern W205/W213 chassis CarPlay integration. NTG5.5 systems use different connector pinouts than earlier NTG4 variants.

Display cable adapters like the Retrofit NTG5.5 HSD monitor screen disp Cable For C W205 E W213 GLC enable aftermarket display upgrades while maintaining OEM quality. The Radio video Cable Adaptor 4.3m amplier For W213 NTG6 HU6 specifically addresses amplifier integration in Burmester-equipped vehicles, requiring extended length for proper routing.

Instrument cluster retrofits need specialized harnesses—the Retrofit Instrument adaptor Dash Speaker Center cable For W204 W212 GLK manages dashboard speaker integration concurrent with head unit upgrades. W204/W212 platforms share many connector standards simplifying cross-platform compatibility.

Audi MQB and MLB Platform Solutions

Audi's MIB (Modularer Infotainment Baukasten) systems share architecture with VW MQB platforms but use different software configurations. The FOR A4 B9 Q5 Q7 A6/C8 2017+ MIB2 MIB2.5 video unit and display Cable MIB screen DVD player line 1.8M addresses B9 A4/A5 and MLB-platform Q5/Q7 requirements. Part number 4M0959613B references overhead console switch integration in Q7 applications.

The 8W2971192A For A4 B9 FRONT CAMERA 4 PIN ADAPTER CABLE LOOM enables front camera integration in B9-generation vehicles. Audi's 4-pin camera standard differs from VW's RCA-based systems despite shared MQB architecture. The Virtual Cockpit FPC Combi Instrument Adapter Digital Tacho Retrofit For a3 8V allows digital cluster upgrades using FPC (Flexible Printed Circuit) connections maintaining OEM functionality.

Virtual cockpit retrofits require 1.8m LVDS harnesses connecting instrument clusters to head units. The 1.8M FOR HSD A3/A4/A5/Q5/Q7 liquid crystal Screen Virtual Cluster LVDS LCD Install Special Wiring harness Wire provides appropriate length for dashboard routing without excess cable management requirements.

Bluetooth and Connectivity Module Harnesses

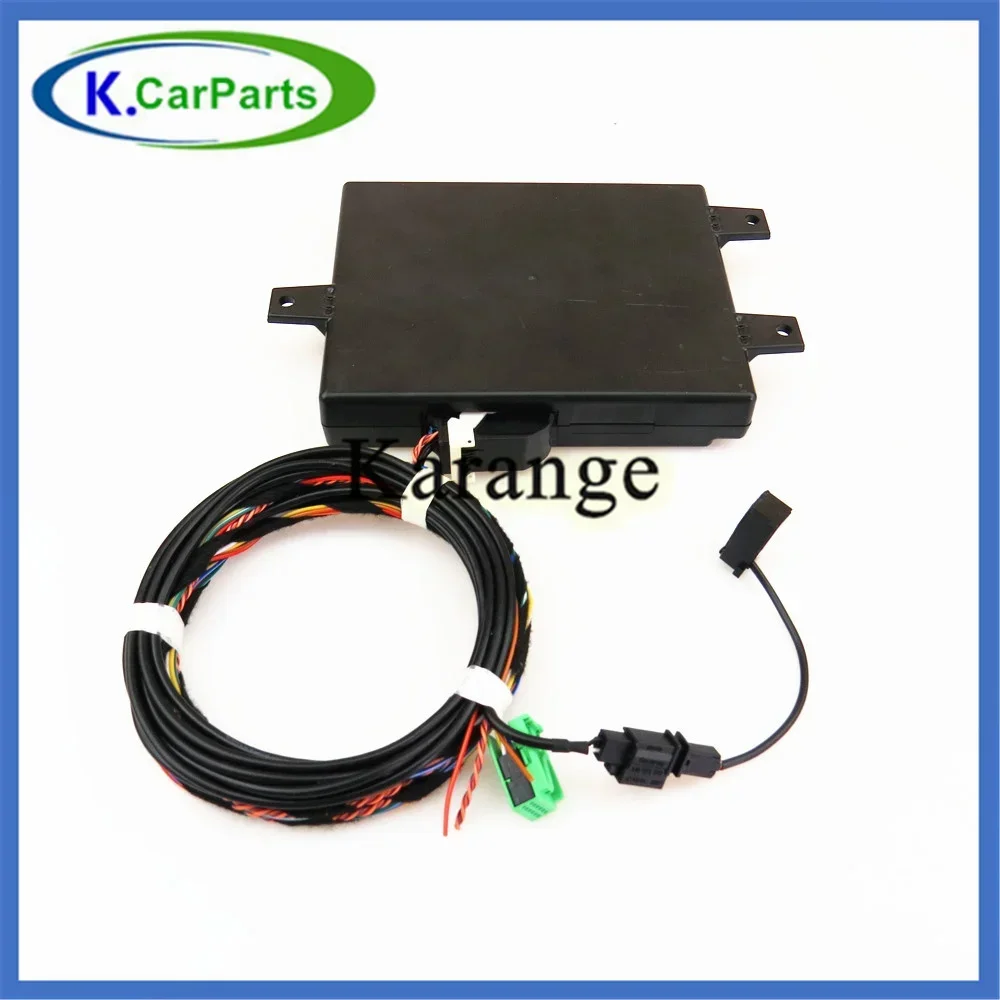

Legacy vehicles lacking factory Bluetooth require module-specific harnesses. The 1K8035730D 1K8 035 730 D 9W2 Bluetooth Module Plug Play Wiring Harness For Golf MK6 Passat B6 For Tiguan RCD510 Microphone integrates 9W2 Bluetooth modules into RCD510/RNS510 systems. Part number 1K8035730D represents the complete wiring harness including microphone routing—purchasing modules without matched harnesses creates installation complications.

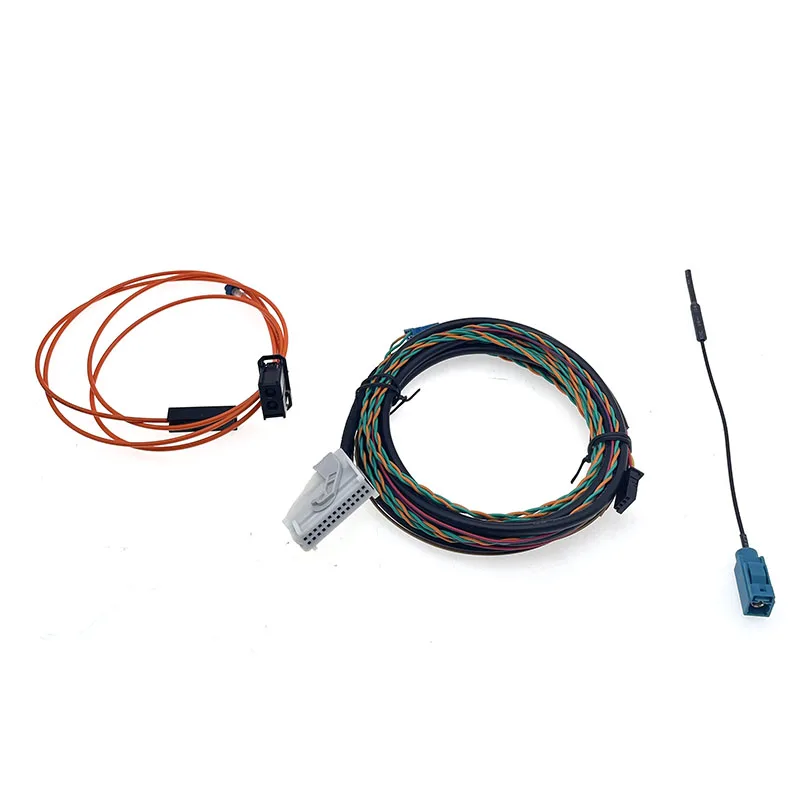

BMW Combox retrofits demand USB, MOST, and antenna connections. The Retrofit Combox Bluetooth most usb Harness Cable For E60 E90 F10 CIC addresses E-series and early F-series installations. Combox units enable Bluetooth streaming, USB connectivity, and smartphone integration in CIC-equipped vehicles originally lacking these features.

Installation Considerations and Compatibility

Connector standards determine retrofit success—BMW uses proprietary rectangular HSD connectors, Mercedes uses FAKRA variants, and VW/Audi standardize on Quadlock. Verify exact connector types before purchasing; generic "universal" harnesses rarely maintain proper impedance matching. HSD cables require 100-ohm impedance for video signals—cheaper aftermarket cables using incorrect specifications cause display artifacts.

Cable routing affects signal quality—avoid routing HSD cables parallel to power wires exceeding 2A current draw. Maintain 5cm minimum separation from high-current circuits. Use provided cable clips and OEM routing paths; improvised routing risks pinching during seat adjustments or climate control servicing.

CAN bus integration requires proper termination—most retrofit harnesses include necessary resistors, but verify specifications match your vehicle's communication protocol. K-CAN, PT-CAN, and MOST systems use different voltage levels and termination requirements. Incorrect CAN bus connections trigger warning lights or disable safety systems.

Quality Indicators and Common Issues

Premium retrofit harnesses use OEM-specification connectors with gold-plated contacts and double-shielded cable construction. Check for proper strain relief at connector bodies—inadequate strain relief causes intermittent connections within months. Legitimate harnesses reference OEM part numbers (5QD036726E, 1K8035730D, 4M0959613B) indicating reverse-engineered OEM specifications.

Common installation failures stem from mismatched cable generations—NBT and NBT EVO use identical physical connectors but different pinouts. CIC-to-NBT upgrades require complete harness replacements; individual cable substitutions fail. Verify your exact head unit version before purchasing—iDrive controller versions (standard vs. touch) require different harness configurations.

Key Takeaways

• HSD LVDS cables require precise length matching—excess length causes signal reflections, insufficient length creates installation stress
• Platform-specific harnesses (MIB2, NBT EVO, NTG5.5) are not interchangeable despite similar connector appearances
• Complete retrofit kits include video, USB, CAN bus, and control harnesses—missing components prevent full functionality
• OEM part number references (5QD036726E, 1K8035730D) indicate proper reverse-engineering from factory specifications
• Bluetooth module harnesses must include microphone routing—modules alone are insufficient for complete integration

Frequently Asked Questions

What cable length do I need for BMW F30 NBT retrofits?

Most F30 installations require 1.5m HSD cables for display connections and 1.2m cables for armrest USB integration. The center console to dashboard routing uses shorter cables than rear seat entertainment applications requiring 3.5m or longer runs.

Can I use VW MIB2 harnesses for Audi A3 8V installations?

Yes, VW Golf MK7 and Audi A3 8V share MQB platform architecture using identical MIB2 connector standards. Verify your specific head unit generation (MIB2 Standard vs. MIB2 High) as USB socket pinouts differ between variants.

Do RCD330 retrofits require vehicle coding after installation?

Most RCD330 installations in Golf MK5/MK6 and Passat B6 vehicles work plug-and-play with proper ISO-to-Quadlock harnesses. Steering wheel controls and rearview camera integration may require VCDS (VAG-COM Diagnostic System) coding to enable full functionality.

What's the difference between CIC and NBT HSD cables?

CIC and NBT systems use identical HSD connector shells but different LVDS signal pinouts and voltage levels. Using CIC cables with NBT head units causes no display output or corrupted video. Generation-specific harnesses maintain proper signal integrity and impedance matching requirements.
