Headlight control switches and wiring harnesses are critical components for VW and Audi lighting systems, enabling proper operation of standard, xenon, and LED headlamps. These parts control beam adjustment, adaptive lighting functions, and automatic leveling systems. Understanding compatibility and OEM part numbers ensures reliable replacement and successful upgrades.

Audi A4, A5, Q5, and Q7 Headlight Control Switches

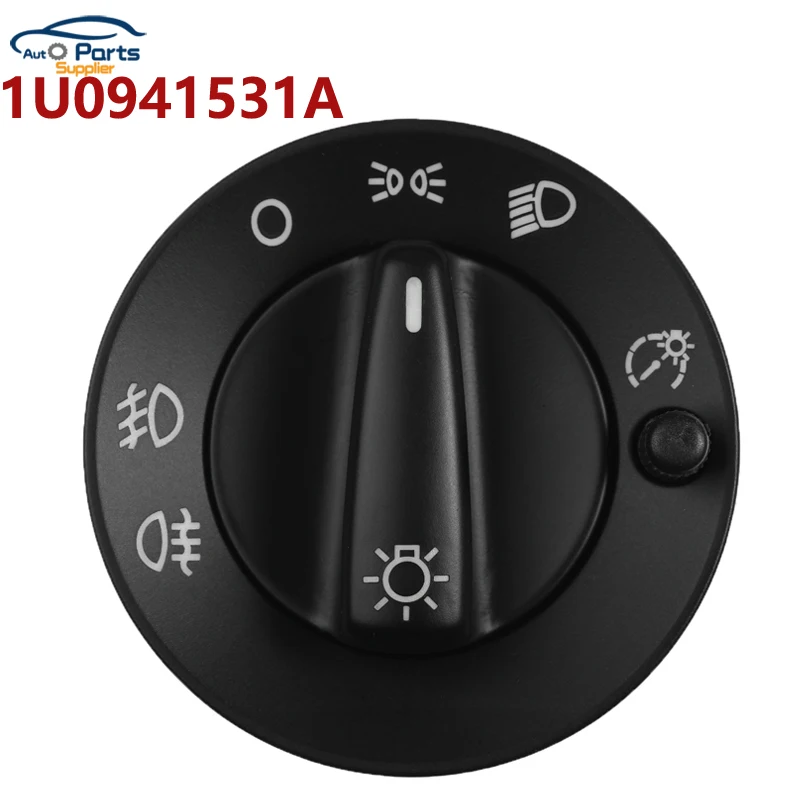

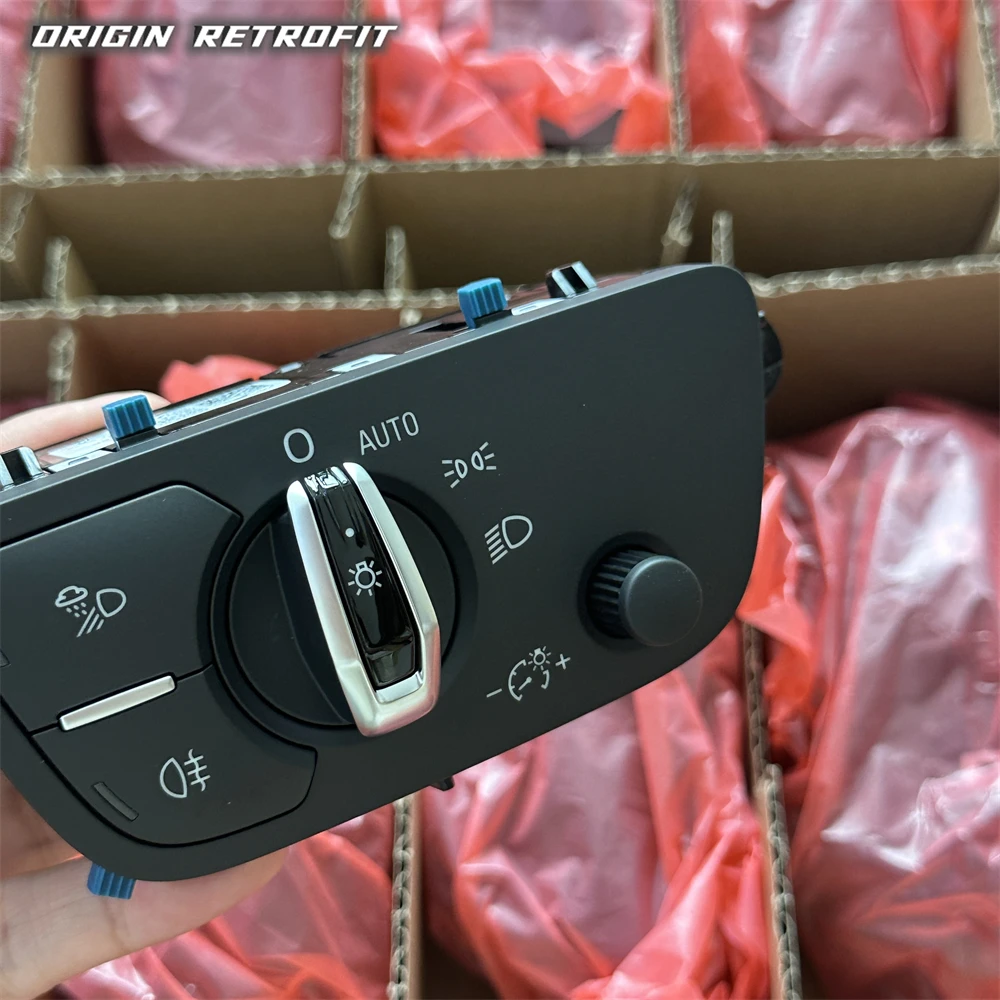

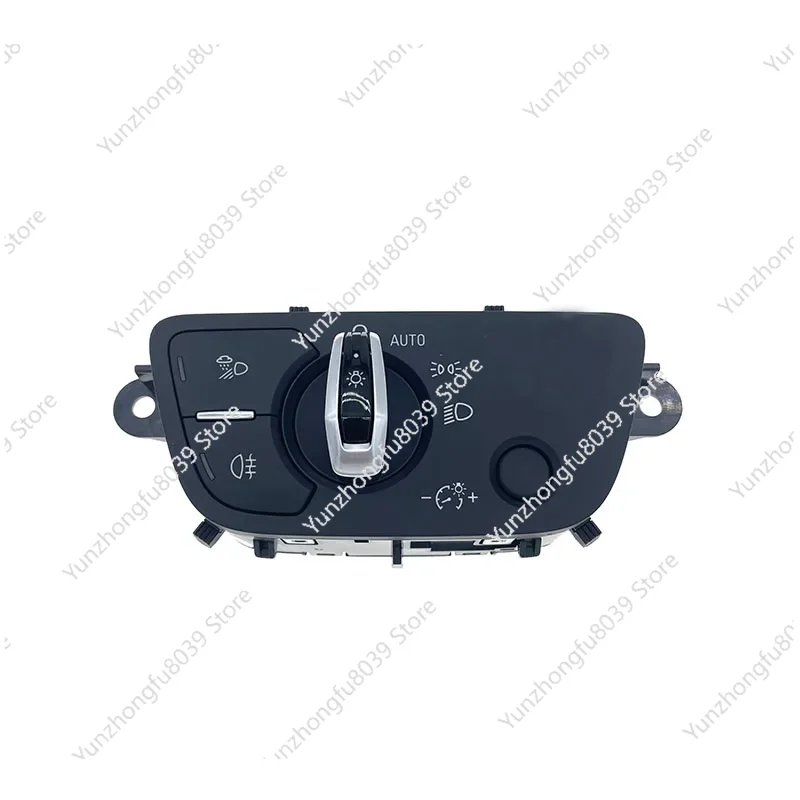

The 4M0941531AA headlight control switch serves as the primary lighting control interface for Audi A4 MK5 (B9 generation from 2016 onward), A5, S5, Q5, and Q7 models. This switch manages headlight adjustment, fog lights, and automatic lighting functions. The part number 4M0941531AB represents a later revision with identical mounting and connector configurations but potentially updated software calibration for newer LED systems.

These switches integrate with Audi's advanced lighting management systems, including automatic headlight leveling and cornering light functions. The switches feature rotary dials for manual beam adjustment (0-4 positions based on vehicle load) and buttons for fog lamp activation. OEM quality switches maintain proper resistance values (typically 1-10kΩ across adjustment positions) ensuring accurate communication with the headlight control module.

Installation and Compatibility Notes

The 4M0941531 series switches mount in the dashboard left control panel using a simple push-lock mechanism. Installation requires removing the side trim panel and disconnecting the 12-pin connector. The switch communicates via LIN bus protocol with the central electronics module, so coding may be necessary when replacing with a different version. Check existing part numbers on your original switch to ensure electrical compatibility.

For Q7 and A4 B9 installations, the 4M0941531AB control unit may be required for vehicles with matrix LED or adaptive lighting packages. This variant includes additional circuits for controlling dynamic beam pattern adjustments. The connector pinout remains identical, but software configuration differs for high-beam assist and traffic sign recognition integration.

Volkswagen Golf Headlight Control Switches

The 5GG941431D chrome headlight switch control for Golf MK7 replaces the standard lighting control found in 2013-2020 Golf models. This switch features chrome accents for enhanced interior aesthetics while maintaining full functionality with standard halogen, xenon, and LED headlight systems. The switch includes rotary control for beam adjustment and AUTO position for light sensor operation.

Golf MK7 switches operate on 12V systems with integrated rain and light sensors communicating through the switch assembly. The 5GG858060A switch bracket cover provides the mounting structure for LED control switches, securing the assembly to the dashboard frame. This bracket is essential when upgrading from halogen to LED systems as it accommodates different switch depths and connector orientations.

Advanced Golf MK7 Switch Options

The 5G0959442AA switch with ACC button adds adaptive cruise control functionality to the lighting control panel. This combination switch integrates lighting controls with driver assistance features, requiring compatible wiring harness connections. Installation on vehicles without factory ACC requires coding through VCDS or dealer programming to activate the additional functions.

For complete sensor integration, the car headlight switch with humidity and rain sensor (part 81D955547 5GG941431D) combines lighting control with automatic wiper activation. This dual-function unit mounts behind the rearview mirror with separate wiring to both the lighting module and wiper control unit. Proper calibration ensures rain sensor sensitivity matches driving conditions.

Wiring Harnesses and Xenon Adapters

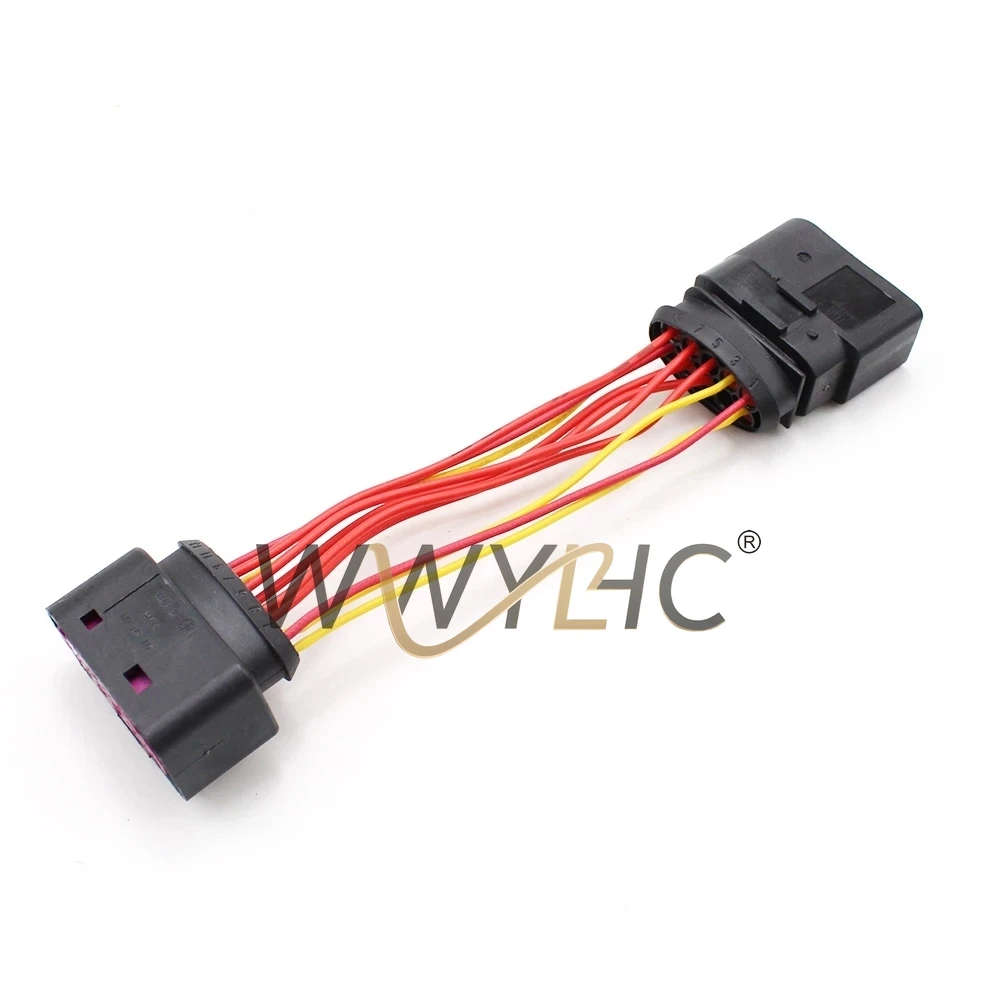

Upgrading from halogen to xenon or LED headlights requires specific wiring harnesses and adapters. The xenon adapter for A4 B8 8K headlight wiring harness provides the necessary connections for bi-xenon systems, including ballast power supply (typically 85V ignition voltage, 42V operating) and D1S/D3S bulb connections. These adapters include proper gauge wiring (16-18 AWG for ballast power) and weatherproof connectors.

The halogen to xenon head light cable adaptor for R32 Golf MK4 and Bora (1998-2006) enables xenon retrofits on older VAG platforms. This harness includes relay circuits for high-current ballast operation and integrates with the vehicle's CAN bus for error-free operation. Proper installation requires coding the instrument cluster to recognize xenon headlights and disable bulb-out warnings for halogen circuits.

Model-Specific Wiring Harnesses

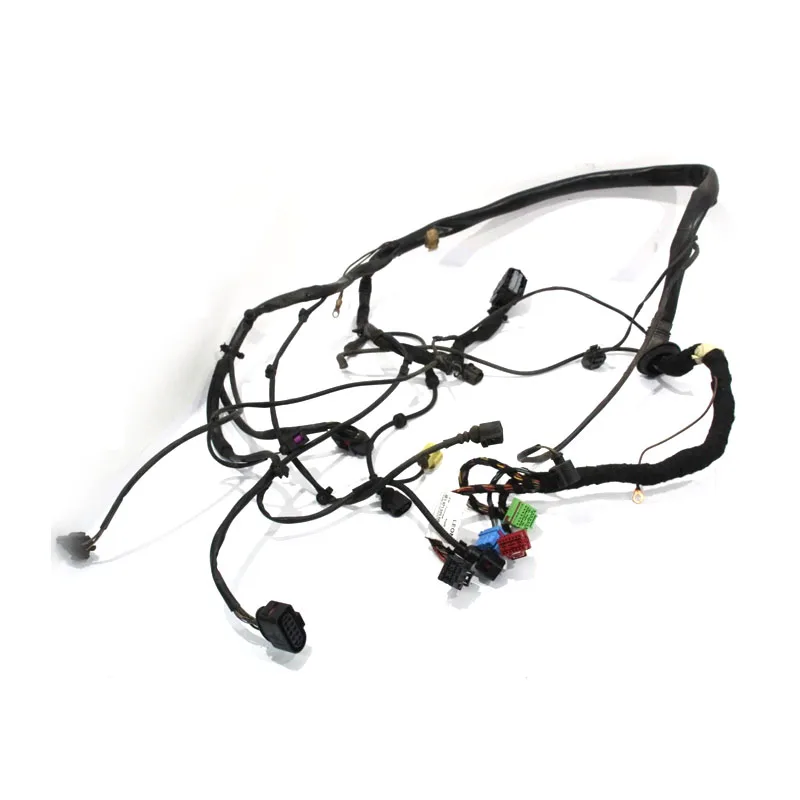

The 8E1971075CB automatic headlamp control cable for A4 B7 manages connections between the headlight switch, light sensor, and headlamp control module. This harness includes shielded wiring to prevent electromagnetic interference affecting sensor readings. The harness terminates at the convenience system control module (address 09 in VCDS), enabling automatic light activation based on ambient conditions.

For A6 4F models, the 4F1971075BS wiring harness for headlight range control connects the dashboard adjustment switch to the headlamp leveling motors. This harness carries both power (12V, 2A max per motor) and position feedback signals. The harness routes through the front bulkhead with separate branches to each headlamp assembly, incorporating weatherproof seals at penetration points.

ID.4 and ID.5 Electric Vehicle Lighting Controls

The 10D941193 headlight switch control for ID.4 and ID.5 represents VW's latest generation lighting control designed for MEB platform electric vehicles. This switch integrates capacitive touch controls with haptic feedback, replacing mechanical rotary dials. The part number 10A941193Q indicates the variant with Travel Assist integration, adding lane-keeping control adjacent to the lighting functions.

These switches communicate via CAN-FD protocol at 500 kbps, enabling faster response times for dynamic lighting adjustments. Installation requires updating the gateway control module to recognize the new switch, typically performed through dealer programming. The switch draws minimal current (under 50mA standby) to preserve battery range in electric vehicles.

Advanced Lighting Control Modules

The 3Q0907338F steering headlamp follow-up control module for Tiguan and Passat B8 manages dynamic cornering light systems. This module receives steering angle input (via CAN bus from steering column sensor) and calculates appropriate headlight swivel angles (typically 0-15 degrees). The module operates headlamp stepper motors at 12V with pulse-width modulation for smooth, progressive beam movement.

Mercedes retrofit applications use the facelift LCI LED multbeam head light cable wiring harness for W166 ML GLE 63, enabling upgrades from standard LED to multibeam LED systems. This harness includes additional circuits for individual LED matrix control (typically 24+ separate LED elements per headlamp) and high-resolution camera integration for traffic detection.

Installation Considerations and Quality Indicators

When selecting headlight control switches and harnesses, verify OEM part number compatibility using your vehicle's VIN. Genuine VAG parts feature laser-etched part numbers on connector housings and date codes on wiring insulation. Aftermarket alternatives should include identical connector types (typically AMP Superseal or Bosch Junior Power Timer series) with proper pin retention force (minimum 30N extraction force).

Wiring harness quality depends on conductor material and insulation temperature rating. Automotive-grade harnesses use TXL or GXL wire rated to 125°C minimum, with cross-linked polyethylene insulation resistant to abrasion and chemical exposure. Copper conductors should meet SAE J1128 specifications with minimum 98% copper content for proper current carrying capacity.

Testing and Diagnostic Procedures

Before installation, test switch resistance values using a multimeter. Headlight adjustment switches typically show resistance ranging from 0Ω (position 0) to 10kΩ (position 4) in 2-3kΩ increments. Button switches should show infinite resistance when open and less than 1Ω when closed. Wiring harness continuity testing requires checking each circuit individually, with maximum acceptable resistance of 0.5Ω per meter of wire length.

For CAN bus-connected switches, diagnostic tools like VCDS or OBDeleven can verify proper communication. Check for fault codes in the central electronics module (address 09) and headlight range control module (address 55). Common errors include implausible signals from adjustment switches or loss of communication with leveling motors, indicating wiring harness issues or faulty switch contacts.

Key Takeaways

• Verify exact OEM part numbers (4M0941531 series for Audi B9/Q5/Q7, 5GG941431D for Golf MK7) before ordering to ensure electrical and mechanical compatibility
• Xenon and LED retrofits require specific wiring harnesses with proper gauge wire (16-18 AWG minimum) and ballast/driver connections rated for high-voltage ignition circuits
• Advanced switches with ACC or sensor integration need vehicle coding through diagnostic tools to activate additional functions
• Quality indicators include proper connector types (AMP/Bosch series), automotive-grade TXL/GXL wire rated to 125°C, and resistance values matching OEM specifications
• Model-specific harnesses (A4 B7, A6 4F, Tiguan AD) include unique routing and connector configurations that cannot be substituted between platforms

Frequently Asked Questions

Can I use 4M0941531AA switch on A4 B8 models?

No, the 4M0941531AA switch is designed for B9 generation A4 (MK5) from 2016 onward. B8 models (2008-2015) use different part numbers like 8K0941531 series with different connector pinouts and mounting dimensions. Using incorrect switches will result in non-functional controls and potential CAN bus communication errors.

Do xenon adapter harnesses work with LED headlights?

Standard xenon adapters designed for ballast connections do not work with LED systems. LED headlights use different drivers operating at lower voltages (typically 12-24V) with different current requirements. LED retrofits require specific harnesses with appropriate connectors for LED driver modules and control signal wiring for adaptive functions.

What tools are needed to replace headlight control switches?

Basic switch replacement requires plastic trim removal tools, T20 Torx driver, and 10mm socket for some mounting screws. For coding and diagnostics, VCDS (VAG-COM) or OBDeleven tools enable module adaptation and fault code clearing. Multimeter testing helps verify switch operation before installation.

Will aftermarket switches require coding after installation?

Most direct OEM replacement switches with identical part numbers do not require coding. However, switches with different feature sets (like adding ACC buttons or sensor integration) need adaptation through dealer programming or diagnostic tools to activate new functions and match vehicle equipment configuration stored in the gateway module.
