The 3Q0 980 654 H lane departure warning system camera serves as the primary visual sensor for advanced driver assistance systems (ADAS) in Volkswagen MQB platform vehicles and compatible Audi models. This windshield-mounted camera detects lane markings and alerts drivers when unintentional lane drift occurs, functioning as part of the vehicle's integrated safety architecture.

Vehicle Compatibility and Platform Requirements

The 3Q0 980 654 H camera specifically fits VW MQB (Modular Transverse Matrix) platform vehicles including Golf Mk7, Passat B8, Tiguan MK2, and Arteon models. This part number also appears in Audi and Skoda vehicles sharing the MQB architecture. The camera integrates with existing vehicle communication networks through the CAN bus system, requiring proper coding and calibration after installation. Compatibility extends to vehicles equipped with Lane Assist or Lane Keeping Assist systems from the factory or those being retrofitted with these safety features.

Multiple part number variants exist within this system family, including 3Q0 980 654 A and 3Q0 980 654 L designations. These letter suffixes typically indicate hardware revisions or software updates rather than fundamental design changes. When sourcing a replacement camera, verify your existing part number through ETKA (Electronic Parts Catalogue) or by physically inspecting the current unit's label to ensure direct compatibility without requiring additional programming modifications.

Technical Specifications and Camera Features

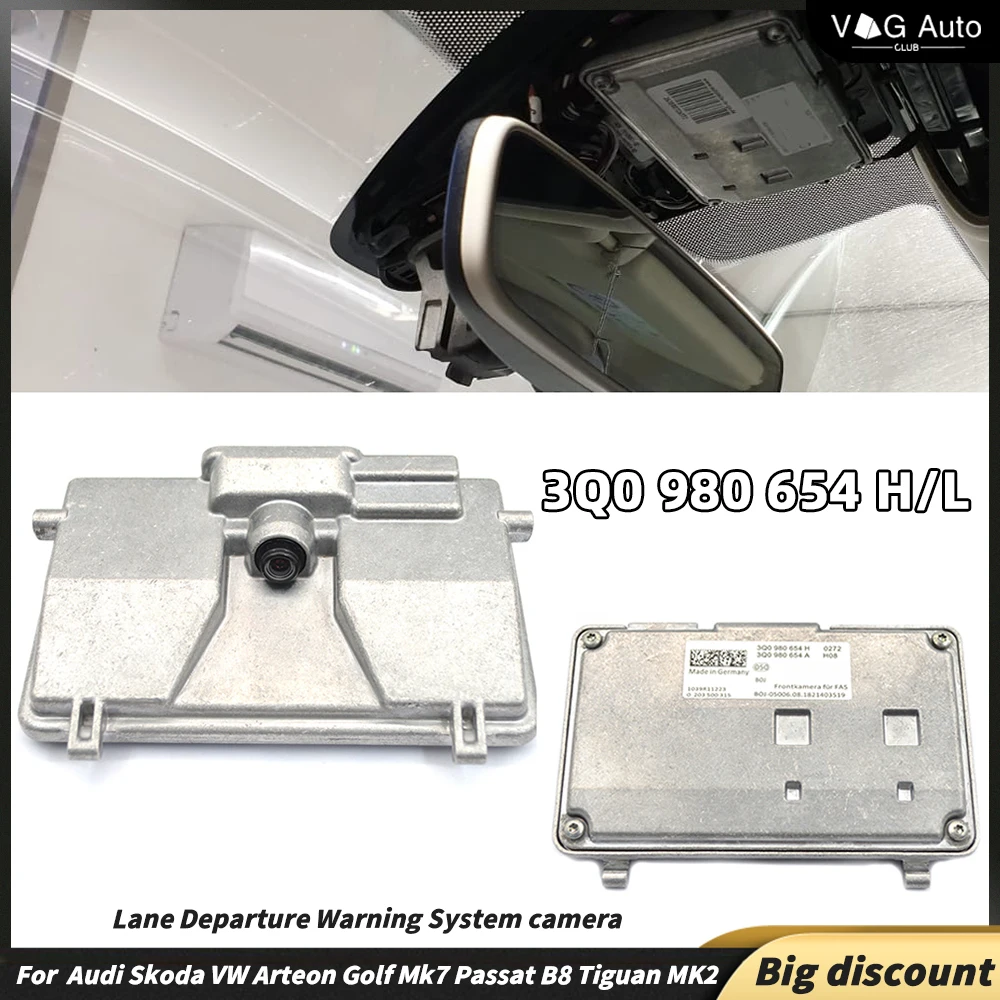

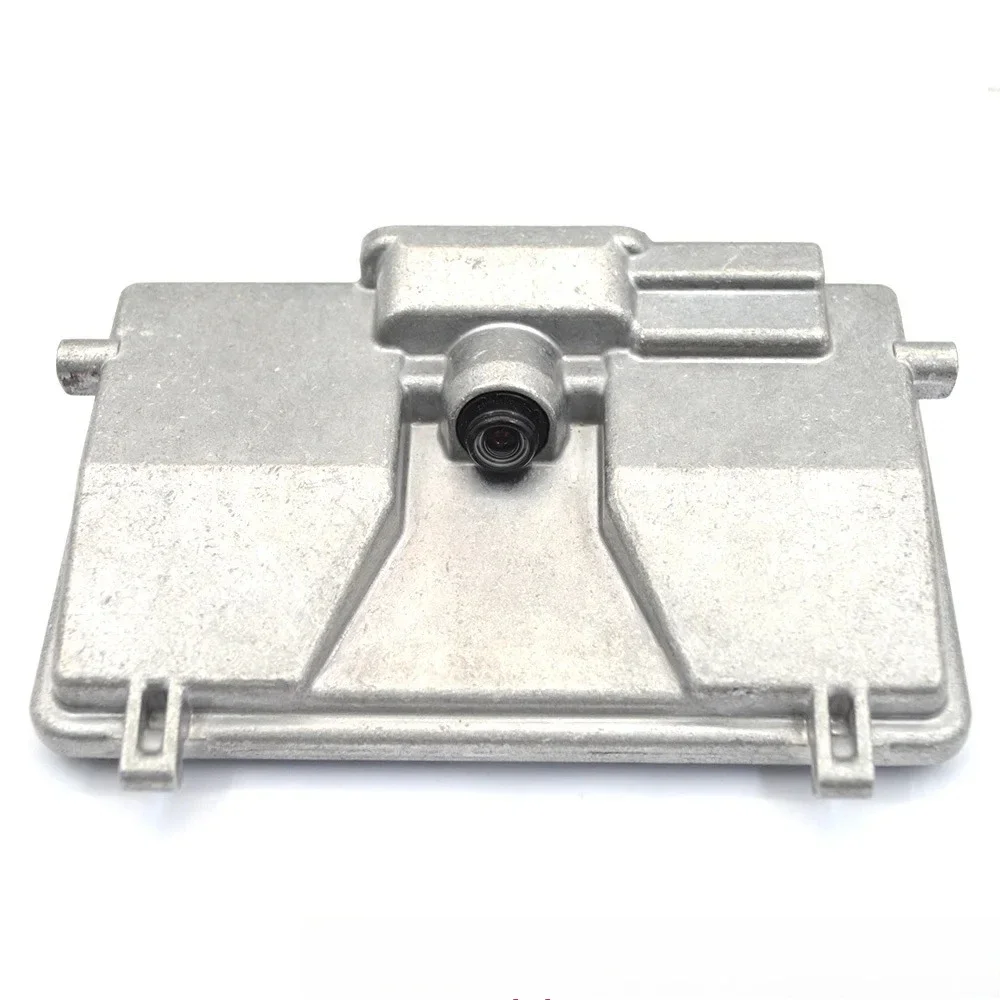

The lane departure warning camera mounts behind the rearview mirror on the windshield's interior surface, positioned to capture a forward-facing view of the road ahead. The optical system uses CMOS sensor technology to detect lane markings in varying lighting conditions, processing image data at rates sufficient for real-time lane tracking at highway speeds. The camera housing includes mounting brackets designed for the windshield's curvature and precise alignment specifications critical for accurate lane detection.

Image processing occurs either within the camera module itself or through communication with the vehicle's central gateway module, depending on model year and equipment level. The system typically operates within a temperature range of -40°C to +85°C, meeting automotive-grade environmental standards. Power consumption remains minimal, drawing current through the vehicle's 12V electrical system without impacting battery performance during normal operation.

Installation Considerations and Calibration

Installing the 3Q0 980 654 H camera requires windshield removal or working through the mirror area, depending on your specific vehicle configuration. The camera must be positioned with precise angular alignment—typically within ±0.5 degrees horizontally and vertically—to function correctly. After physical installation, professional calibration using VCDS (VAG-COM Diagnostic System) or dealer-level diagnostic equipment is mandatory to establish correct lane detection parameters.

Windshield replacement in vehicles equipped with this camera necessitates recalibration, as even minor angle variations affect lane detection accuracy. Some installers use static calibration targets positioned in front of the vehicle, while others employ dynamic calibration requiring test drives on marked roads. DIY installation is possible for mechanically skilled enthusiasts with access to diagnostic software, though professional installation ensures warranty protection and proper system validation.

OEM Versus Aftermarket Options

Genuine OEM 3Q0 980 654 H cameras from Volkswagen Group suppliers undergo rigorous quality testing and carry manufacturer warranties. Aftermarket alternatives vary significantly in build quality, with some using recycled or refurbished components while others offer new-manufactured units. Critical quality indicators include lens clarity, housing seal integrity to prevent moisture ingress, and connector quality to ensure reliable electrical contact over the vehicle's lifetime.

Price variations reflect these quality differences, with budget options potentially sacrificing long-term reliability or requiring more frequent recalibration. When evaluating options, examine seller descriptions for mentions of testing procedures, warranty coverage, and whether units are plug-and-play compatible or require additional coding. Cameras lacking proper sealing may develop condensation issues, causing intermittent system failures or complete malfunction in humid conditions.

Common Issues and Troubleshooting

Frequent problems with lane departure warning cameras include calibration drift, moisture contamination, and connector corrosion. Dashboard warnings indicating lane assist system unavailability often trace to camera misalignment rather than component failure. Windshield contaminants, including dirt, salt residue, or washer fluid streaks in the camera's field of view, trigger system deactivation until visibility improves. Regular windshield cleaning in the camera viewing area maintains consistent system performance.

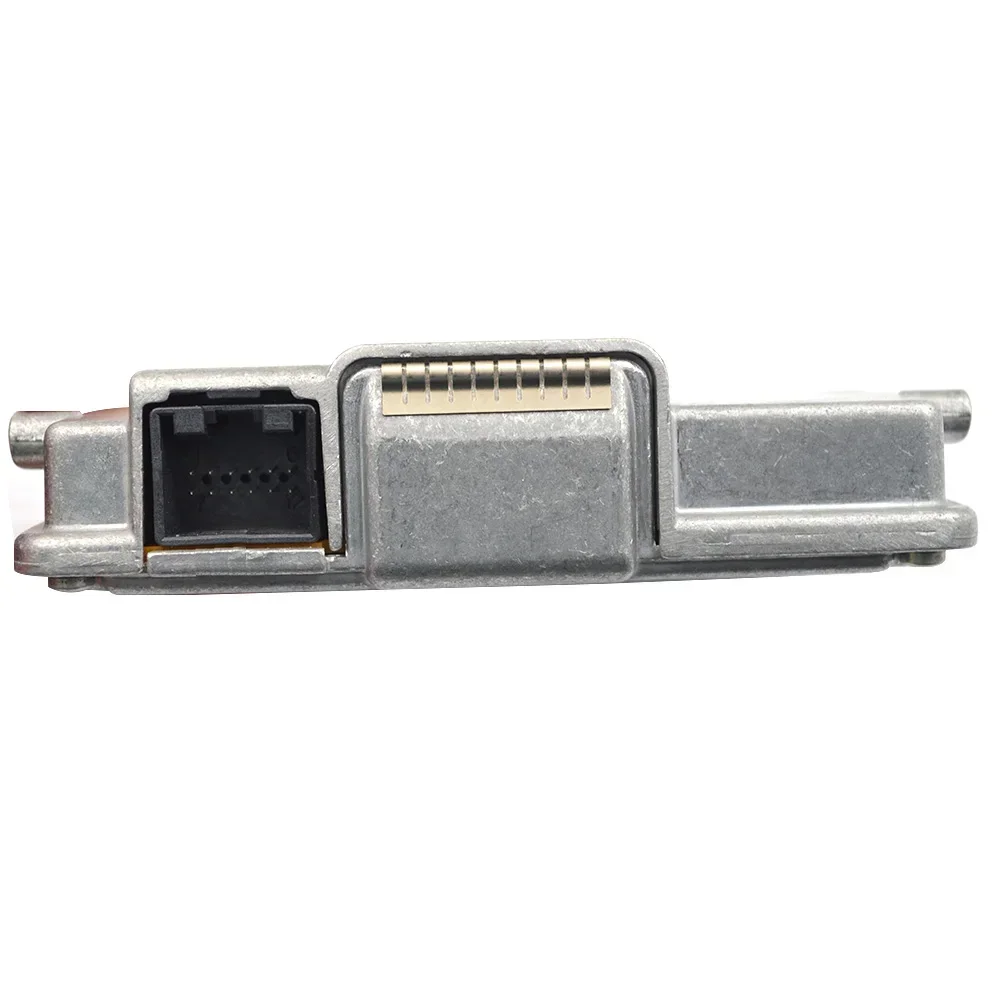

Electrical faults typically manifest as complete system non-operation rather than intermittent warnings. Check connector pins for corrosion and ensure proper seating before replacing the camera unit. Software updates released by Volkswagen Group occasionally address lane detection algorithm improvements, requiring dealer programming to implement. Some phantom warnings on certain road surfaces result from software calibration rather than hardware defects.

Retrofit Applications and System Upgrades

Vehicles without factory lane departure warning can be retrofitted using the 3Q0 980 654 H camera, provided the vehicle's gateway module supports the necessary software protocols. Successful retrofits require not only the camera hardware but also appropriate wiring harnesses, enabling within the vehicle's coding, and potentially additional control modules depending on the base equipment level. Retrofitting complexity varies significantly between model years and trim levels.

MQB platform vehicles typically share similar electrical architectures, making camera retrofits more straightforward than cross-platform installations. However, proper research into your specific vehicle's capabilities through owner forums and coding documentation is essential before purchasing components. Some vehicles require only the camera and software activation, while others need comprehensive wiring modifications and additional hardware investments.

Key Takeaways

• The 3Q0 980 654 H camera fits VW MQB platform vehicles including Golf Mk7, Passat B8, Tiguan MK2, Arteon, and compatible Audi/Skoda models
• Professional calibration using diagnostic equipment is mandatory after installation or windshield replacement
• Part number suffix letters (A, H, L) indicate hardware revisions—verify your existing part number before ordering
• Quality varies significantly between suppliers; prioritize sealed housings and clear lens optics for reliability
• Retrofit installations require vehicle-specific research regarding wiring, coding, and module compatibility

Frequently Asked Questions

What's the difference between 3Q0 980 654 H, 654 A, and 654 L part numbers?

The letter suffixes represent hardware revisions or software updates within the same camera family. Version H typically represents newer iterations with updated algorithms or improved components. Most are interchangeable with proper coding, but checking your vehicle's compatibility through ETKA ensures the correct match for your specific model year and equipment level.

Can I install this camera myself without dealer equipment?

Physical installation is possible for skilled DIY mechanics, but calibration requires diagnostic software like VCDS or OBDeleven with appropriate coding capabilities. Without proper calibration, the lane departure system will not function correctly or may display constant error messages. Professional installation ensures proper alignment and system validation through manufacturer-specified procedures.

Will this camera work if I replace my windshield?

The camera itself remains functional after windshield replacement, but mandatory recalibration is required because mounting angle variations affect lane detection accuracy. Inform your windshield installer about the camera system to ensure proper reinstallation positioning. Recalibration must be performed immediately after installation to restore lane departure warning functionality.

Why does my lane assist system stop working in certain conditions?

Lane departure warning systems deactivate when the camera cannot clearly detect lane markings due to dirt, snow, heavy rain, or worn road paint. Extreme lighting conditions including direct sunlight or nighttime driving on poorly lit roads may also temporarily disable the system. These are normal operational limitations rather than camera defects, and functionality returns when visibility improves.
