Retrofitting 360-degree surround view camera systems requires vehicle-specific wiring harnesses that integrate seamlessly with factory electronics. These aftermarket retrofit kits include camera modules, adapter cables, and complete wiring looms designed for precise OEM fitment across Audi, BMW, Mercedes-Benz, Volkswagen, and Porsche platforms.

Understanding 360 Camera Retrofit Components

A complete retrofit installation consists of three essential elements: the camera units themselves, manufacturer-specific wiring harnesses, and adapter cables that interface with existing vehicle electronics. The 360 Environment Camera for A6 A7 C8 Q7 Q8 (4N0980546) represents the camera module component, while dedicated harnesses handle signal transmission to the vehicle's display system. These systems differ fundamentally from simple backup cameras by providing bird's-eye view synthesis from multiple camera angles.

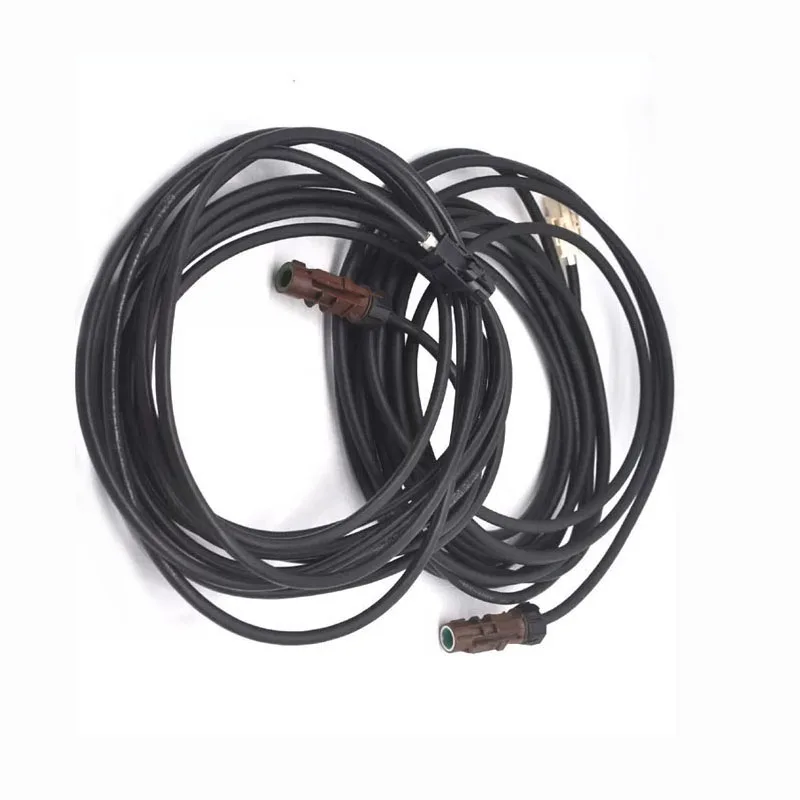

Cable lengths vary by installation location and vehicle architecture. Front camera connectors typically measure 4-7 meters, while complete system harnesses for full surround installations extend to 7 meters or more. The Surround 360 Camera Wiring Harness cable For W166 GLE X166 GLS demonstrates this full-system approach with comprehensive cable routing for Mercedes platforms. Proper length selection prevents signal degradation and ensures clean routing through vehicle body panels.

Audi Platform-Specific Retrofit Solutions

Audi retrofits divide into MQB platform vehicles (A3, Golf, Q3) and MLB Evo platforms (A4, A6, Q7, Q8). The 5Q0980546A 360 Area-View Camera for A4 Q3 Golf 7 Passat B8 utilizes the common MQB camera protocol with 4-pin connectivity. These systems integrate with RNS/MIB infotainment units through dedicated gateway modules that decode camera signals into composite video streams.

MLB Evo platforms require different adapter configurations. The 4N0971192 Night-Vision System Camera Adapter Cable Loom for A6 C8 provides the electrical interface for C8-generation vehicles, incorporating additional pins for advanced driver assistance system integration. Adapter cables compensate for harness differences between model years, particularly important when retrofitting newer camera modules to pre-facelift vehicles.

Rear camera installations on Audi platforms use highline guidance line configurations. The Rear View Camera with Highline Guidance Line Wiring Harness for A5 S5 8W Q5 (8W8827566D) includes dynamic trajectory overlay capability when paired with compatible display units. These harnesses contain additional wiring for reversing light trigger signals and CAN bus communication.

A6/A7/A8 Specific Configurations

C7 and C8 generation A6/A7 models use distinct connector pinouts. The 971192D Rear Camera Adapter Wiring Cable Loom for A7 A6 C7 (4G0971192D) addresses C7 platform requirements, while C8 vehicles require 4N0-series adapters. Installation requires coding through VCDS or factory diagnostic tools to activate camera feeds in the MMI system. Harness routing follows factory service procedures through tailgate or bumper mounting points.

BMW iCAM Retrofit Systems

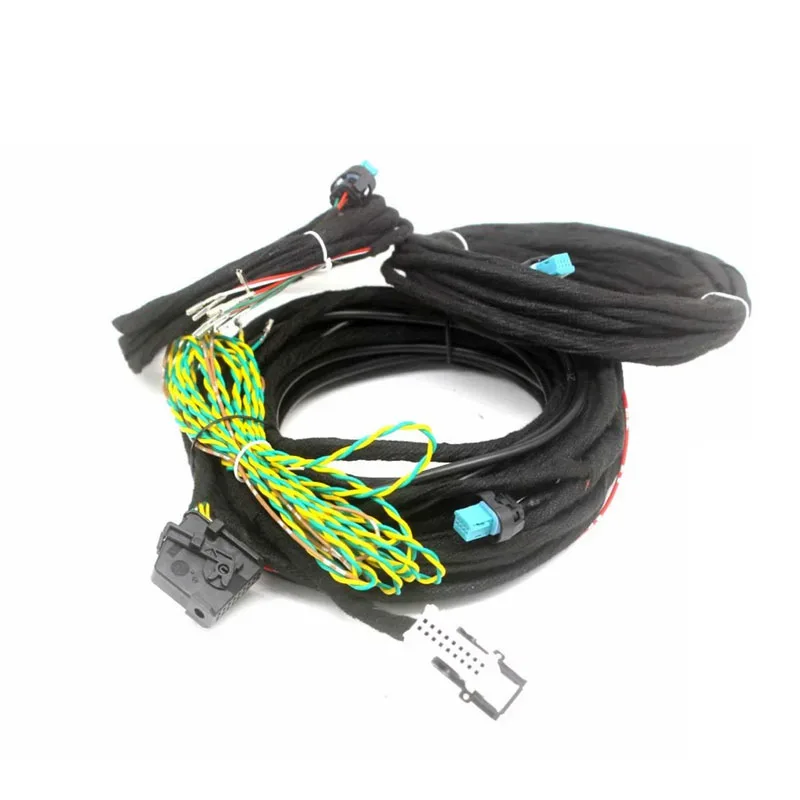

BMW vehicles from F-series through G-series utilize the iCAM (Intelligent Camera) architecture requiring specialized retrofit harnesses. The Retrofit full Camera Cable wiring for iCAM 360 SURROUND G30 G20 G10 provides complete wiring for G-chassis platforms with iDrive 7 systems. These harnesses include power supply lines, CAN bus connections, and video signal wiring for the Surround View Module (SVM).

F-series platforms use different module locations and pinout configurations. The Surround 270 Camera Wiring Harness cable kit for F07 F10 F06 F12 F13 F01 F02 represents the earlier generation system requiring connection to the Top View Module rather than integrated SVM architecture. Cable routing differs substantially between F and G platforms due to relocated control modules.

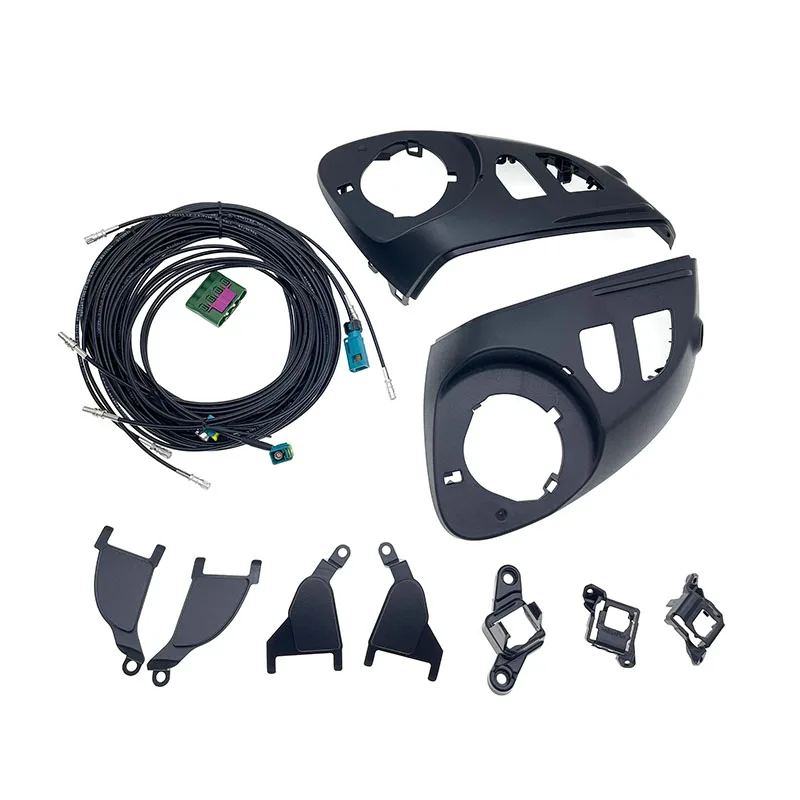

Mirror-mounted side cameras require dedicated harnesses. The 2x Side mirror Camera 360 SURROUND retrofit Cable wiring for iCAM G F series provides the necessary connections from door mirror housings to the central camera control module. These cables incorporate heated mirror wiring pass-through to maintain factory functionality while adding camera connectivity.

F-Series vs G-Series Differences

F-series installations require HSD (High Speed Data) cables with quad-shielded construction. The 2011-2016 F10 5 Series Rear View Backup Camera HSD Wire Harness demonstrates this requirement with specialized cable construction preventing electromagnetic interference. G-series vehicles transition to Ethernet-based camera systems requiring gigabit-capable wiring with different connector types.

Mercedes-Benz Surround View Integration

Mercedes systems differentiate between standard reversing cameras and full 360-degree surround view implementations. The A0009056306 Front 360° Surround Camera for W205 W222 serves as the forward-facing module in complete systems, requiring coordination with side and rear cameras through the central camera control unit. W205 C-Class and W222 S-Class share common camera protocols but differ in harness routing paths.

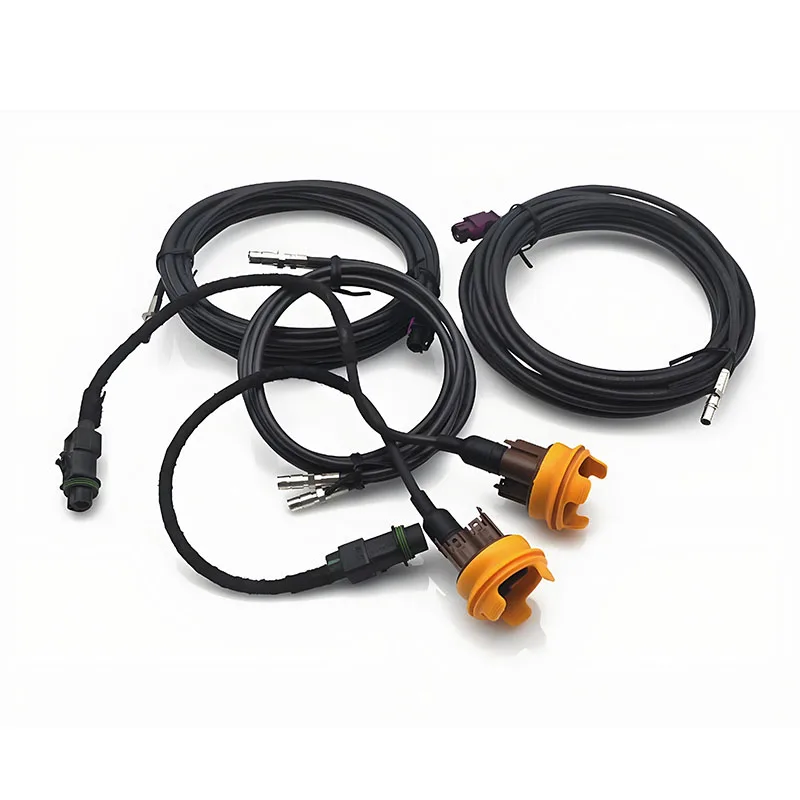

Complete system retrofits require multiple harnesses. The Full surround 360 Camera Wiring Harness cables for E class E300 213 includes front, rear, and side camera connections totaling 7+ meters of specialized cabling. These harnesses integrate with COMAND or MBUX infotainment systems through fiber optic MOST bus connections on newer vehicles.

Cable connector standards vary by production year. The SURROUND VIEW CAMERA CONNECTOR 360 cable mirror for W205 W222 W213 GLE uses the common 8-pin connector format for W205/W213 platforms, while earlier W212 vehicles require different pin assignments. Mirror-mounted cameras use dedicated 4-pin connectors with water-sealed housings rated IP67 for exterior exposure.

W213 and Newer Platform Considerations

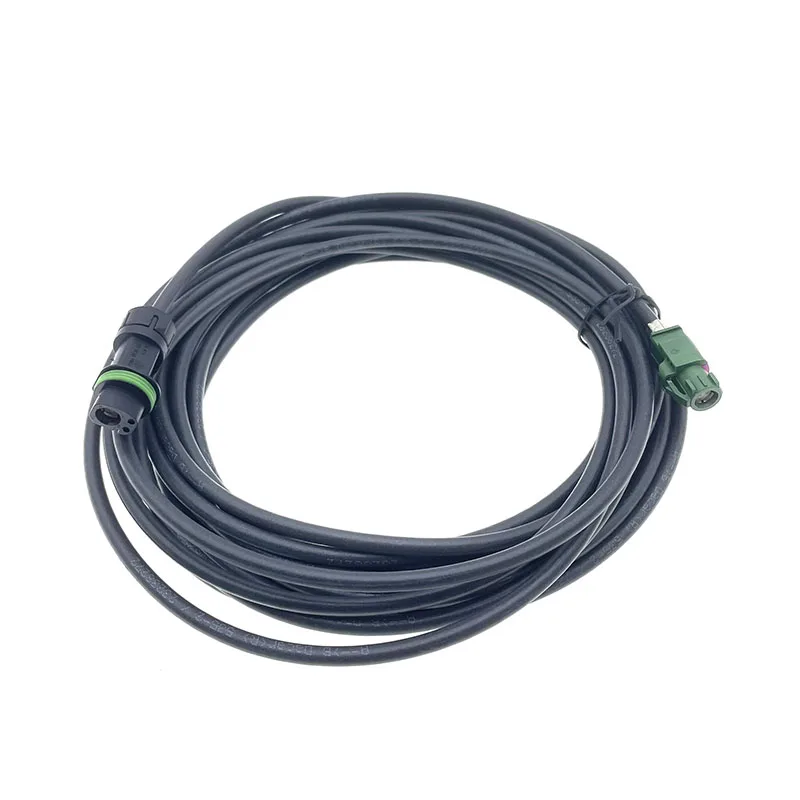

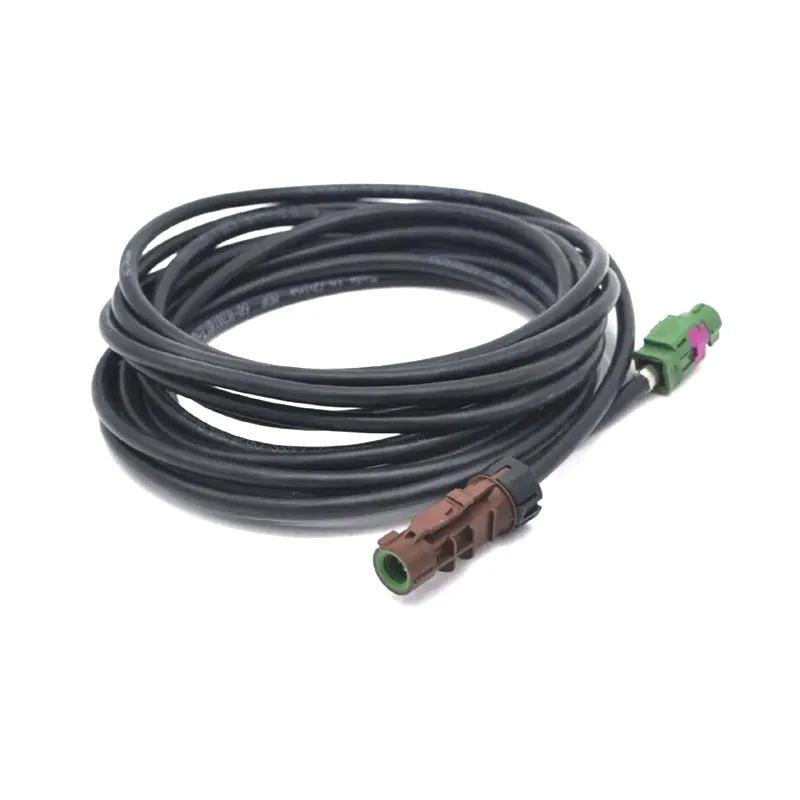

W213 E-Class introduced revised camera positioning and higher resolution sensors. The SURROUND 360 Front CAMERA CONNECTOR cable 6.5m for W206 W213 LCI W214 provides extended length for front camera installations requiring routing through the radiator support structure. LCI (Life Cycle Impulse) facelifts often change connector locations necessitating specific harness variants.

Volkswagen Group MQB Platform Retrofits

MQB architecture vehicles share common camera interfaces across VW, Audi, Skoda, and SEAT brands. The retrofit 360 surround Reverse Camera Cable wiring kit for Golf MK8 applies equally to Octavia, Leon, and Q3 platforms with minor routing differences. MQB systems use the 5Q0980546 camera module family with standardized 4-pin power and video connections.

Harness installation requires access to the vehicle's Composition Media or Discover Pro head unit. The Rear View Camera Cable Harness RCD510 RNS510 for Tiguan A6 A4 A7 demonstrates the connection methodology for earlier RNS-generation infotainment systems. Newer vehicles with MIB2 or MIB3 systems require different gateway configurations but use identical camera-side connectors.

Lane keeping systems integrate with front camera installations. The For Golf 7 Lane Keep Front Camera (5Q0980653) combines reversing camera functionality with forward-facing driver assistance features. These dual-purpose installations require harnesses carrying both video signals and CAN bus data for lane departure warnings.

Installation Considerations and Technical Requirements

Proper installation requires understanding vehicle electrical architecture. Camera systems draw 200-500mA during operation, requiring dedicated fused connections to prevent electrical system overload. Harnesses include inline fuse holders rated 5-10 amperes depending on camera count and auxiliary feature integration.

Signal quality depends on proper cable routing away from high-voltage ignition components and electric motor wiring. Minimum bend radius for camera cables measures 50mm to prevent internal conductor damage. The FRONT CAMERA CABLE WIRE HARNESS (3G0971158H) incorporates reinforced jackets at stress points where cables pass through body panel grommets.

Coding and programming activation varies by manufacturer. Audi systems require dealer-level access or VCDS software with security gateway access. BMW vehicles need ISTA programming to activate camera feeds and calibrate the surround view module. Mercedes retrofits often require dealer SCN coding to register new camera components in the vehicle's electronic inventory.

Common Installation Challenges

Harness routing through sealed body cavities requires careful attention to waterproofing. Factory grommets may lack sufficient openings for aftermarket camera cables, necessitating grommet replacement or modification. Cable ties must avoid pinching camera cables against sharp metal edges that could compromise insulation over time through vibration-induced wear.

Quality Indicators and Component Selection

OEM-specification harnesses use stranded copper conductors with minimum 20 AWG gauge for power lines and coaxial construction for video signals. Connector housings should feature positive locking tabs and gold-plated pins to resist corrosion in exterior-mounted camera applications. The For GLE W167 Front 360° Camera Wiring Harness (A1675402037) represents OEM-equivalent quality with Mercedes part number specifications.

Cable jacket materials significantly impact longevity. PVC jackets suffice for interior routing, but exterior-exposed sections require TPE or XLPE insulation rated for -40°C to +125°C temperature ranges. UV-resistant jacketing prevents brittleness in sun-exposed installations such as front bumper camera routing.

Connector compatibility requires exact matching to vehicle production dates. Pre-facelift and post-facelift models within the same generation often use different connector shells despite identical pinouts. The 4H0971192B 2013-2018 Surround View Camera Adapter Cable for S8 A8L A8 specifies exact year ranges for compatibility verification.

Advanced System Features

Modern retrofit harnesses support additional features beyond basic video display. Dynamic guidance lines require CAN bus integration to receive steering angle data. The For A5 A7 A8 Rear View Camera UNIT Highline Guidance Line (4M0980556A) includes the necessary signal wires for trajectory overlay functionality.

Night vision systems use infrared-sensitive cameras requiring different power specifications. The dedicated adapter cables for these systems incorporate voltage regulators and filter capacitors to provide clean power to sensitive IR sensors. Standard camera harnesses lack these components and cannot substitute for night vision applications.

Key Takeaways

• Vehicle-specific wiring harnesses are mandatory for successful 360 camera retrofits due to varying connector pinouts and signal protocols across manufacturers
• Complete systems require multiple harness components: camera power cables, video signal transmission lines, and CAN bus adapters for feature activation
• Cable length selection must account for routing paths through vehicle structure, with typical requirements ranging from 4-7 meters per camera location
• Post-installation coding through manufacturer diagnostic systems activates camera feeds and enables advanced features like dynamic guidance lines
• OEM-equivalent harnesses use coaxial video construction, stranded copper power conductors, and temperature-rated insulation for reliability

Frequently Asked Questions

Can I use a universal camera harness for any vehicle?

No. Each manufacturer uses proprietary connector types, pin assignments, and communication protocols. A harness designed for Audi MQB platforms will not physically connect to BMW iCAM systems or Mercedes COMAND modules. Even within brands, generation-specific harnesses are required due to evolving electrical architectures.

What's the difference between 360 and 270-degree camera systems?

360-degree systems use four cameras (front, rear, left, right) providing complete perimeter coverage. 270-degree systems omit one side camera, typically used in older BMW F-series installations. The harness requirements differ substantially, with 270 systems using three camera connections versus four for full 360 coverage.

Do retrofit camera systems require dealer programming?

Most installations require electronic activation through diagnostic software. Audi and VW systems can often be coded using VCDS tools with proper security access. BMW requires ISTA/D programming, while Mercedes typically needs dealer SCN coding to register camera modules in the vehicle's electronic inventory and activate display functions.

How do I determine the correct harness length for my installation?

Measure the routing path from the camera mounting location to the infotainment control module, adding 20% for service loops and avoiding tight bends. Front cameras typically require 4-7 meter harnesses depending on vehicle size. Rear cameras need 3-5 meters. Side mirror cameras use 2-3 meter harnesses from door hinges to the central control unit.
