Replacement wiring harnesses and door cable sets restore electrical functionality in Volkswagen, Audi, and Mercedes vehicles when factory looms deteriorate or fail. These components manage power distribution for windows, locks, speakers, lighting, and control modules across multiple model generations.

Understanding Vehicle Wiring Harness Construction

Factory wiring harnesses use copper conductors with cross-linked polyethylene insulation rated for automotive temperature ranges (-40°C to +105°C). Multi-strand construction provides flexibility during door movement cycles, while connector housings use glass-filled nylon for dimensional stability. Quality harnesses include proper wire gauge sizing: 18 AWG for power circuits, 20-22 AWG for signal wires, and shielded twisted pairs for CAN bus communication.

Volkswagen Group vehicles share electrical architectures across platforms. The MQB platform (Golf MK7, A3 8Y) uses standardized connector pinouts, while older PQ35/PQ46 platforms (Golf MK5/MK6, A4 B8) require generation-specific harnesses. Each harness includes pre-installed grommets, strain relief boots, and vehicle-specific connector housings that match factory mounting points without modification.

Passat CC Trunk and Tailgate Wiring Systems

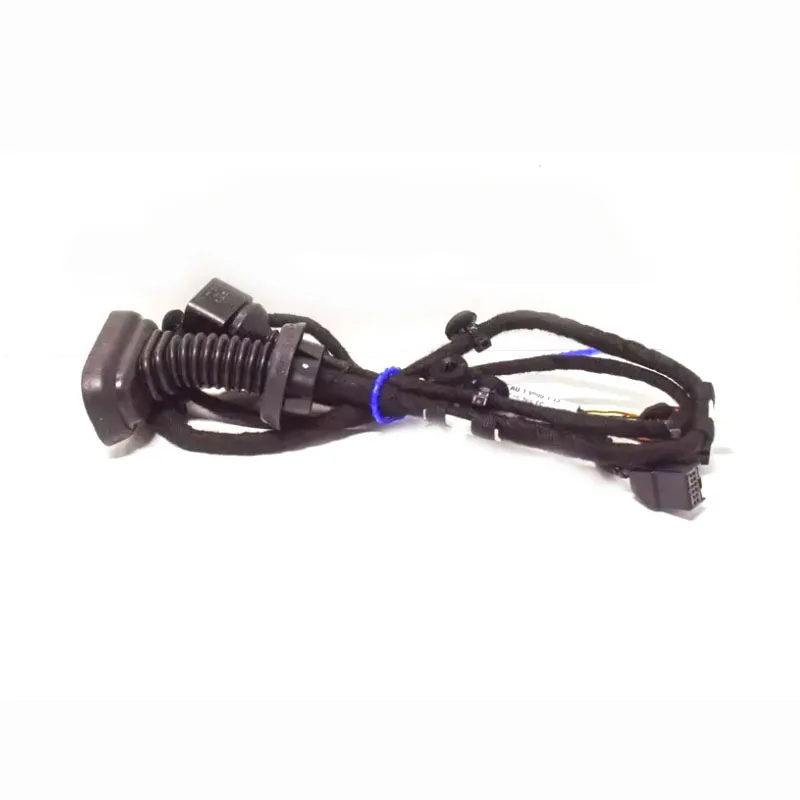

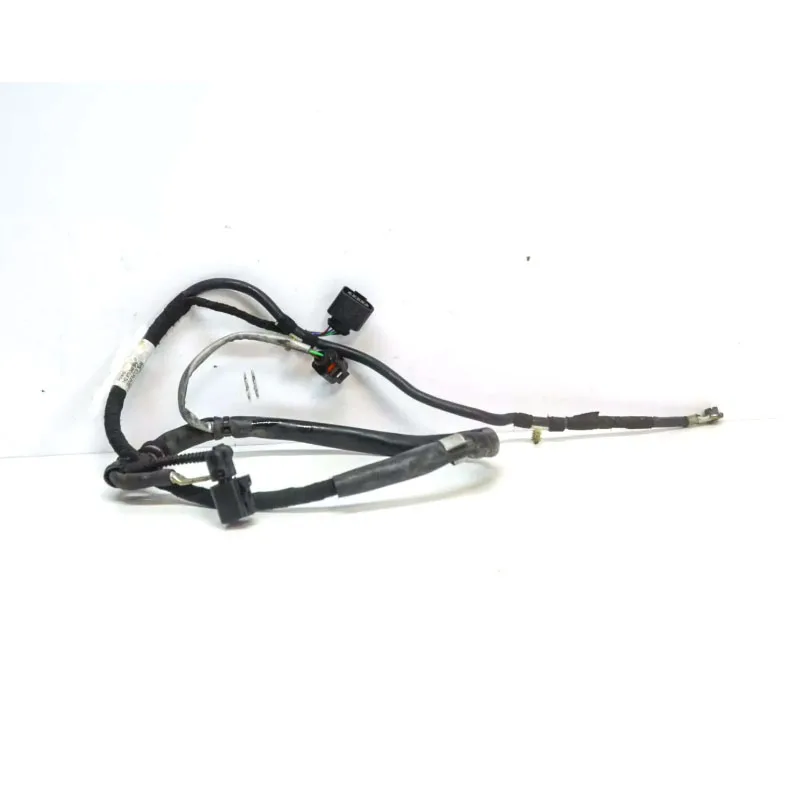

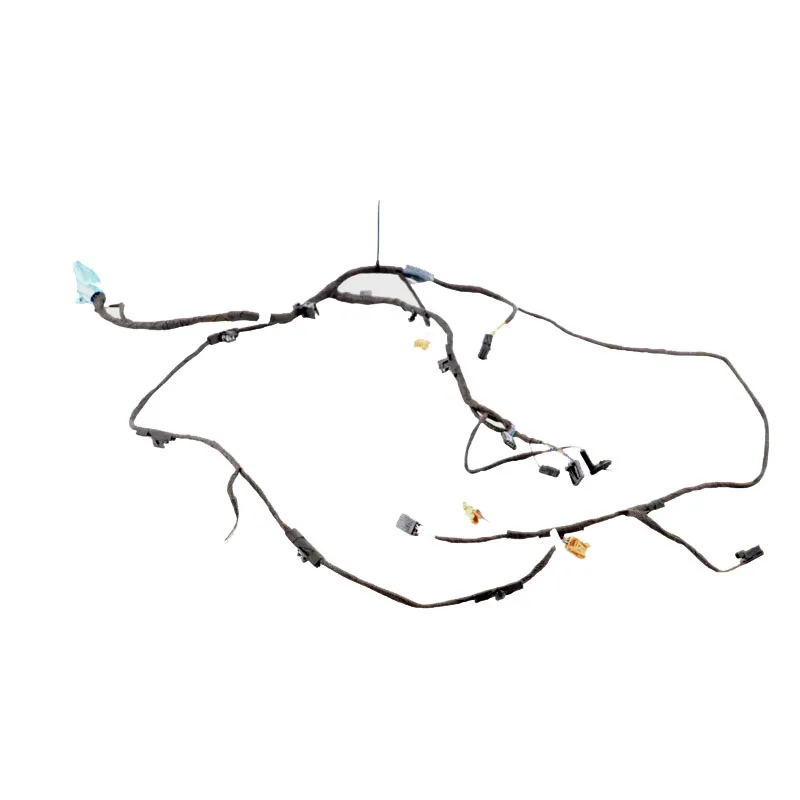

The Passat CC trunk wiring harness (part numbers 3C8971182J, 3C8971182E, 3C8971192C) manages electrical connections between the body control module and trunk-mounted components including license plate lighting, reverse camera power, trunk release solenoid, and rear spoiler illumination on equipped models. Right-hand drive variants use specific routing paths to accommodate steering column positioning.

These harnesses fail primarily from flexing fatigue at the trunk hinge pivot point, where repeated opening cycles create stress concentrations. Symptoms include intermittent trunk release operation, non-functional backup camera, or license plate light failure. Replacement requires removing trunk panel trim, disconnecting the existing harness at body-side connectors, and routing the new loom through factory grommet locations with proper strain relief.

Door Panel Wiring Harness Applications

Front Door Harnesses

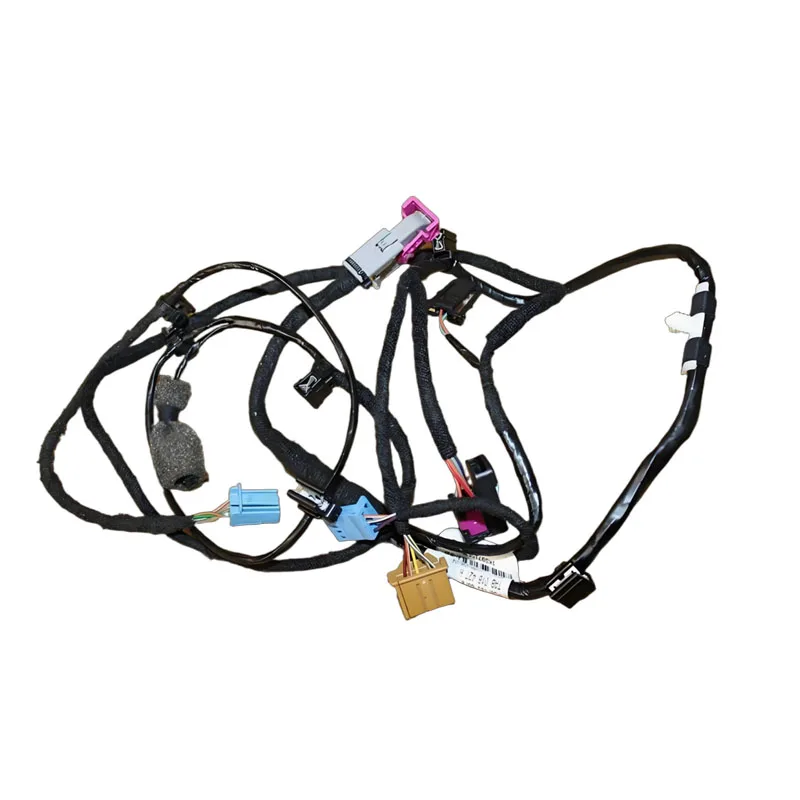

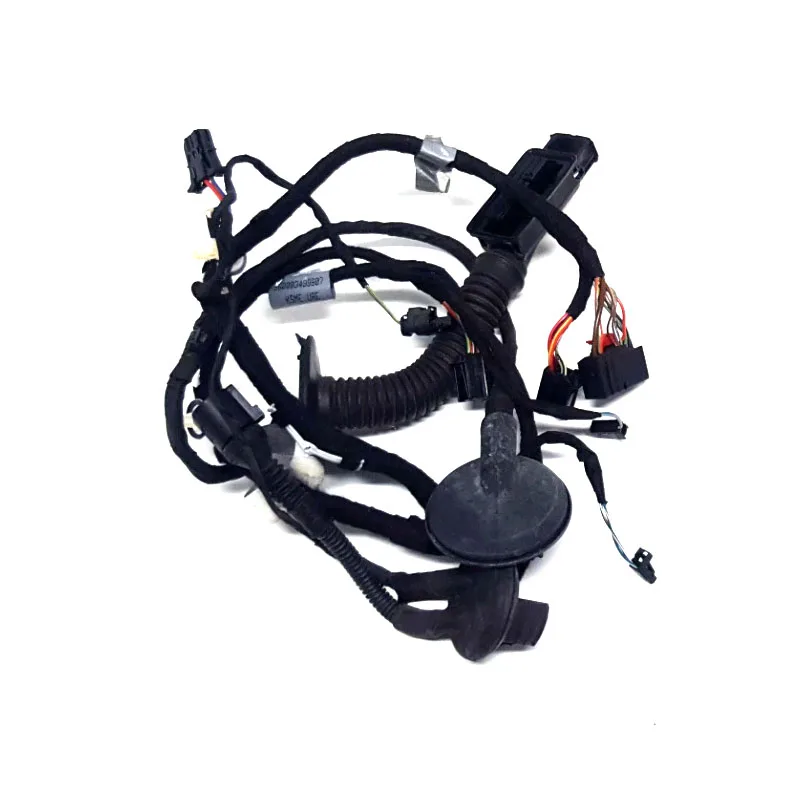

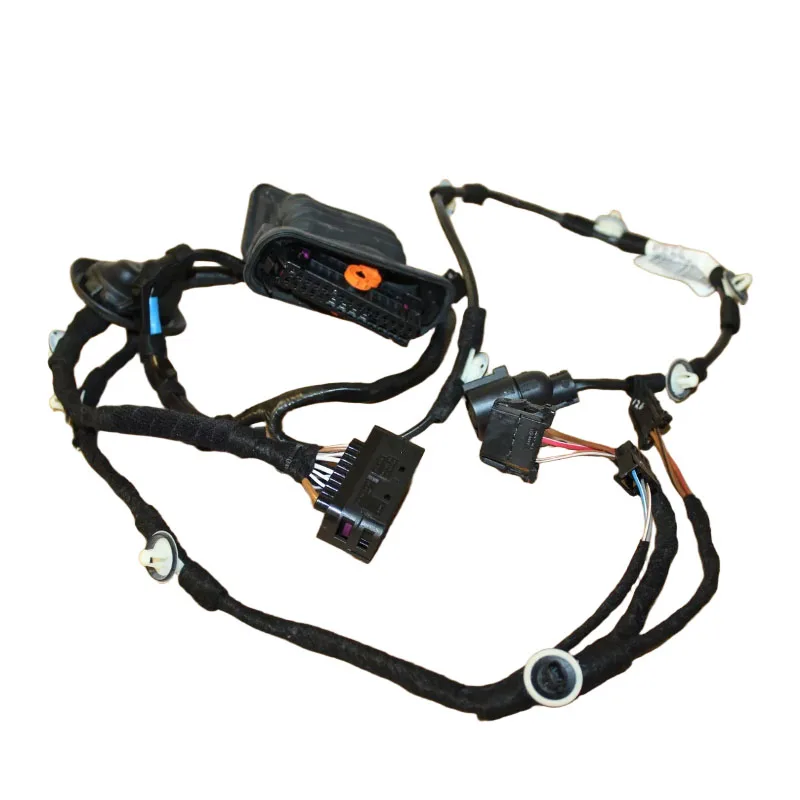

Front door harnesses like the A4 B8 front left door wiring harness 8K0971029AL and Golf MK6 front left door harness 5K4971120DL carry 12-24 circuits depending on equipment level. Base configurations include power window motors (typically 30A circuit), central locking actuators, speaker pairs (front tweeter and mid-bass), and mirror adjustment motors. Premium packages add heated mirror elements, puddle lighting, ambient lighting strips, and multi-color LED accent systems.

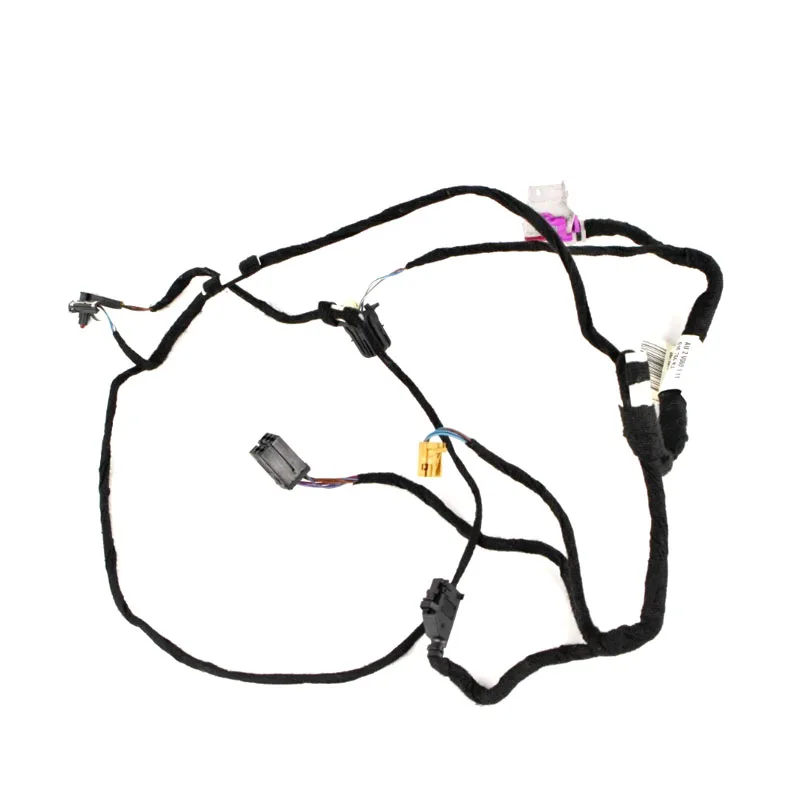

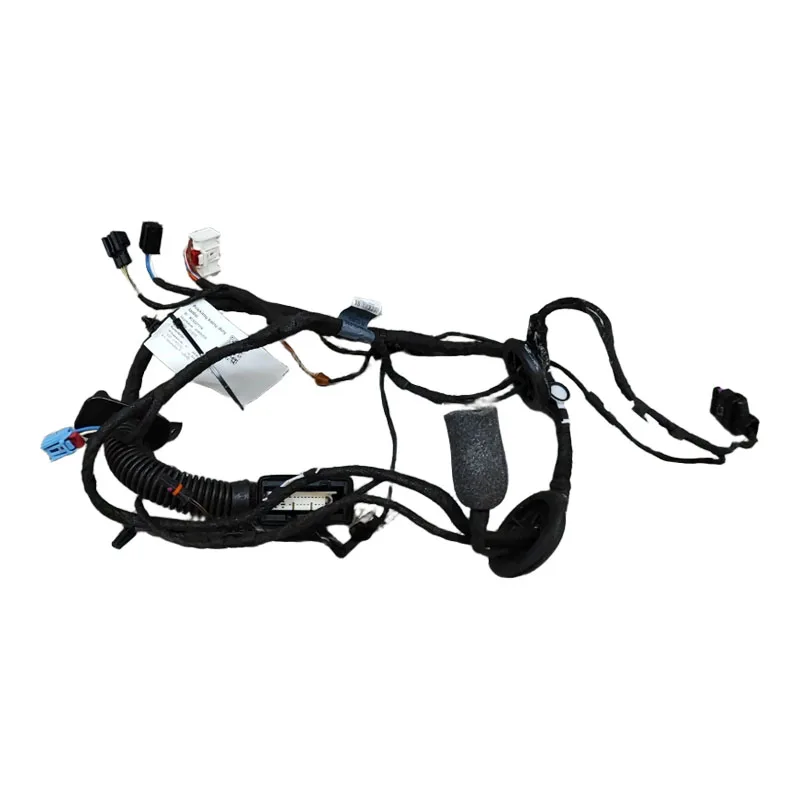

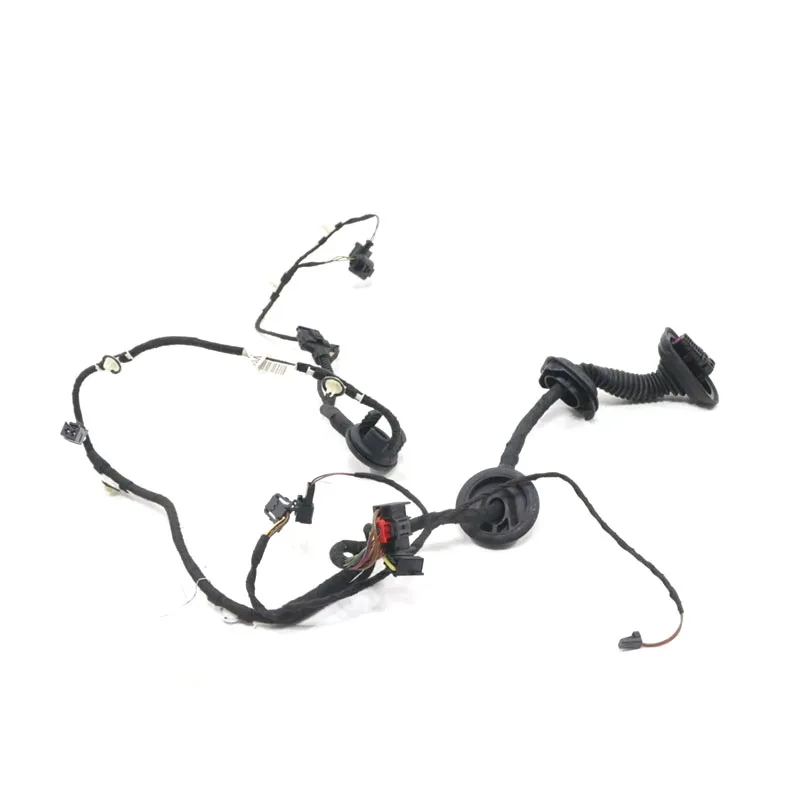

The A3 8P Sportback right front door wiring loom 8P4971029M represents the more complex Premium Plus specification with 22-pin main connectors. This includes separate power feeds for window anti-pinch sensors, door handle capacitive sensors on Keyless Entry systems, and dedicated ground points for audio system shielding. Audi's MMI-equipped models route fiber optic MOST bus signals through door harnesses for premium sound systems.

Rear Door and Seat Harnesses

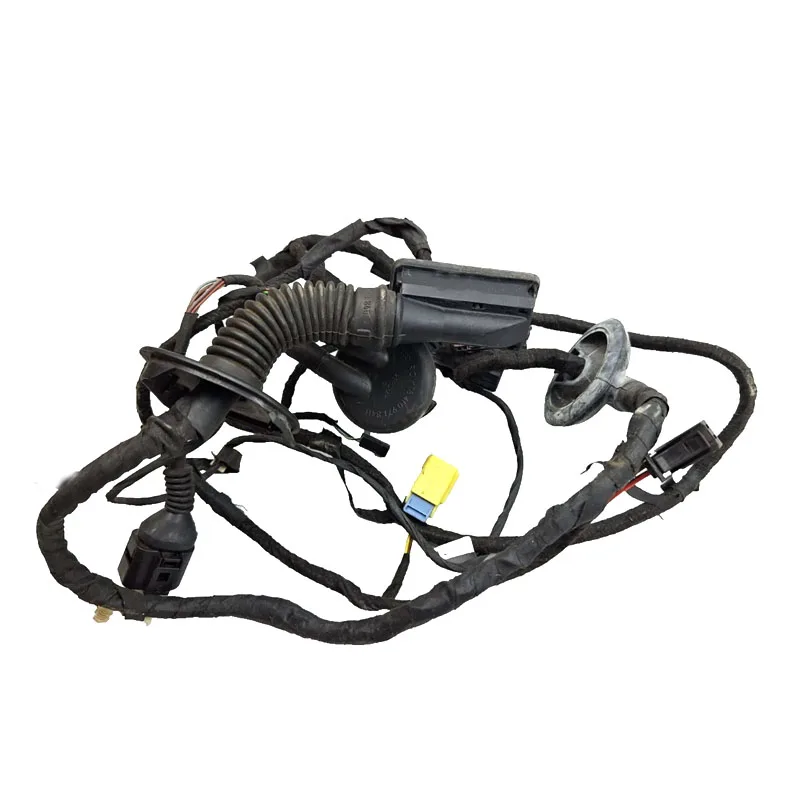

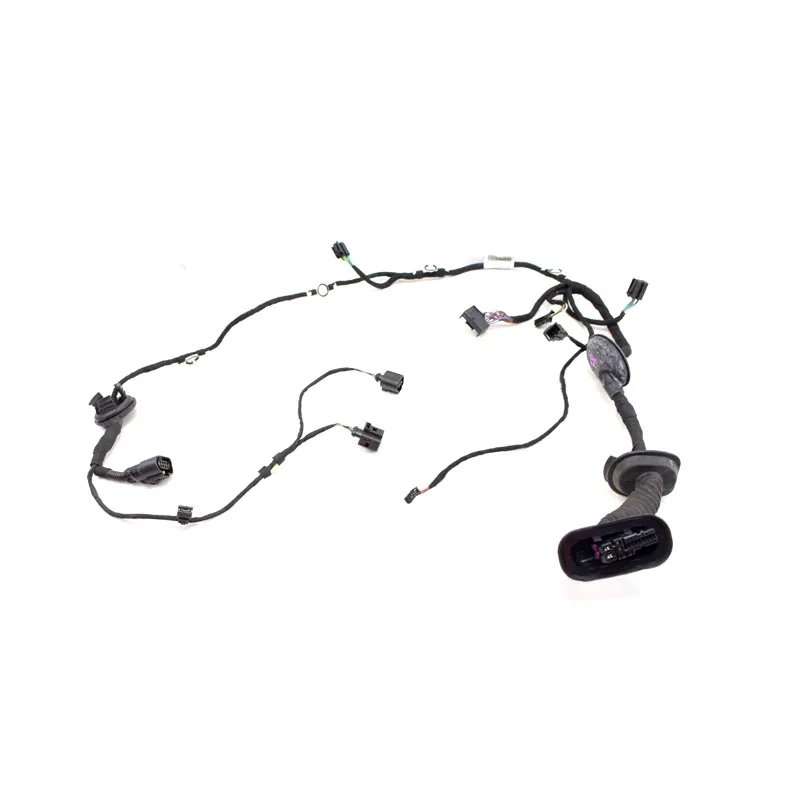

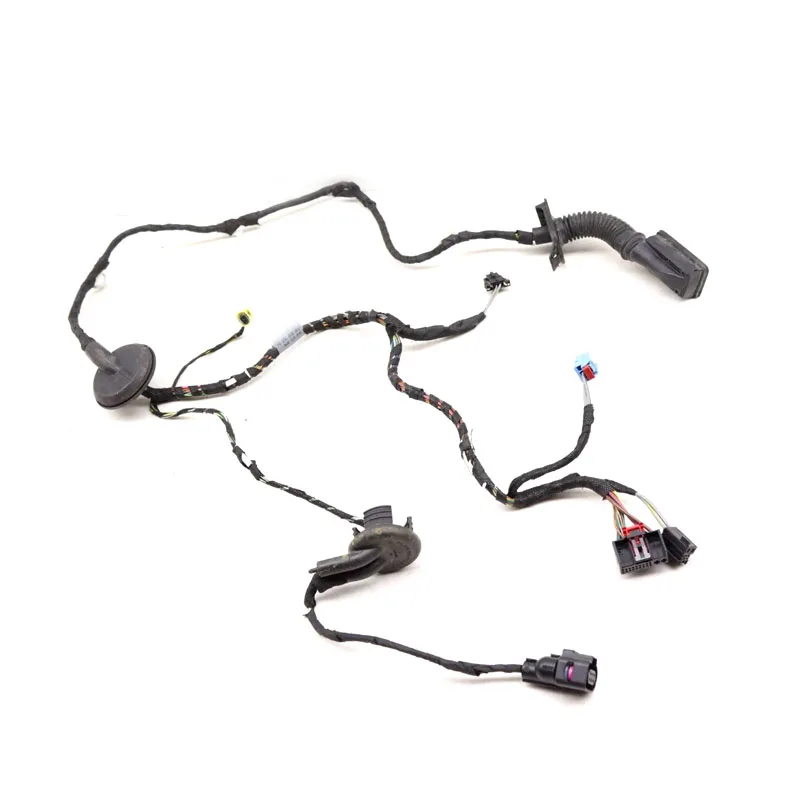

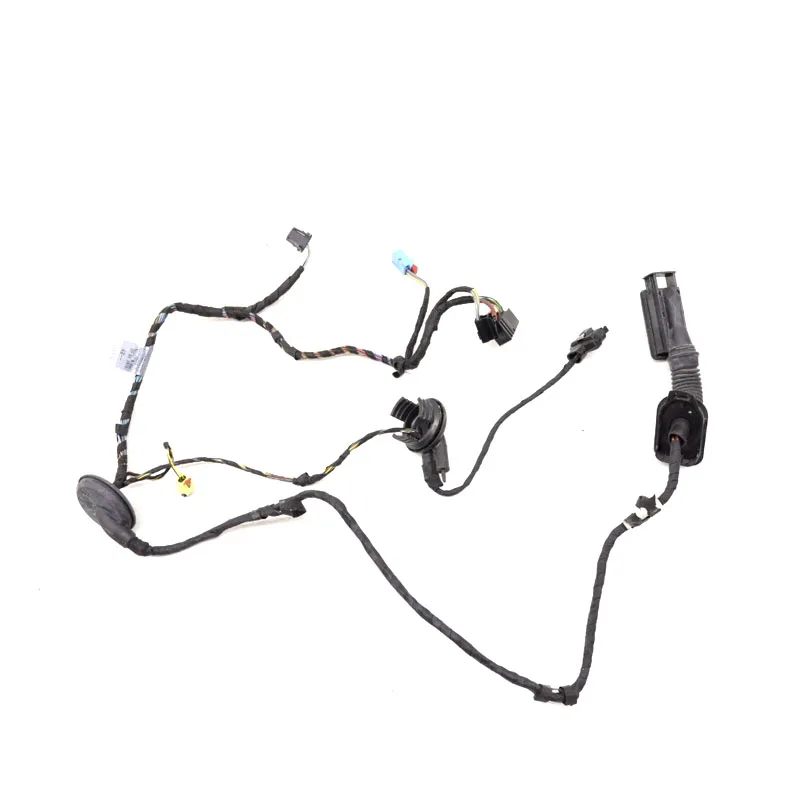

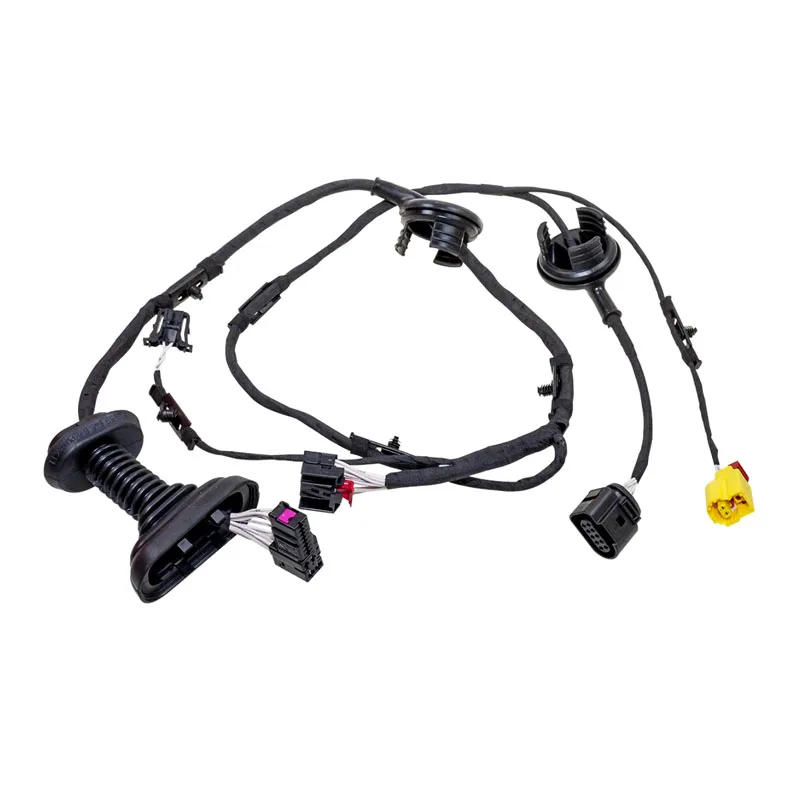

Rear door harnesses like the Golf MK6 left rear door wiring loom 5K4971693AJ manage fewer circuits but face higher failure rates from child safety lock switch corrosion and water intrusion through worn door seals. These looms typically include 8-12 circuits: window motor, central locking, speakers, and optional rear window shades on luxury models. The A3 sedan rear right door harness 8V5971693C adds circuits for rear climate control panels and USB charging ports in later model years.

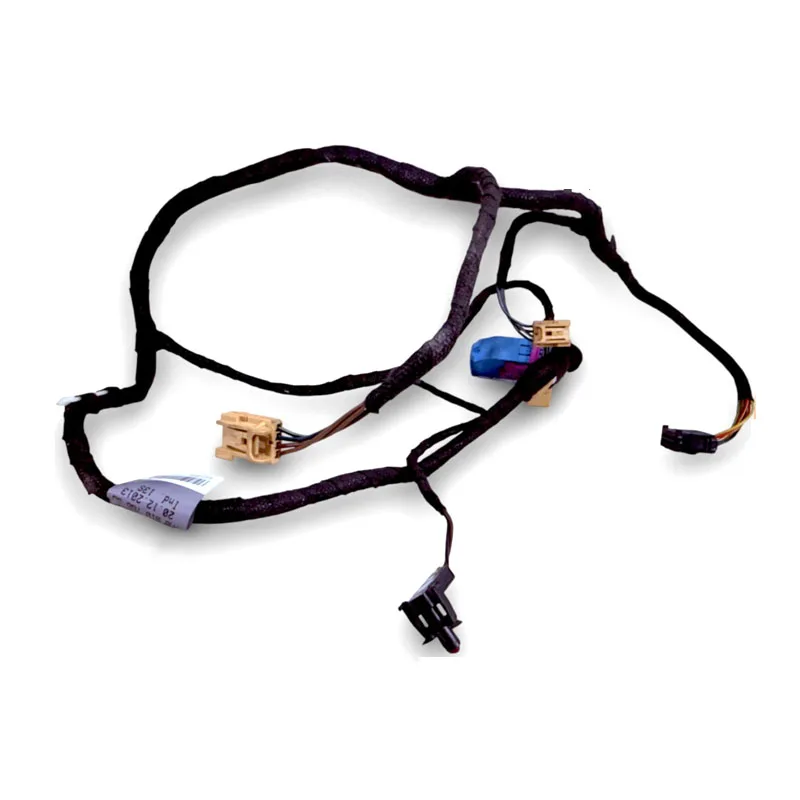

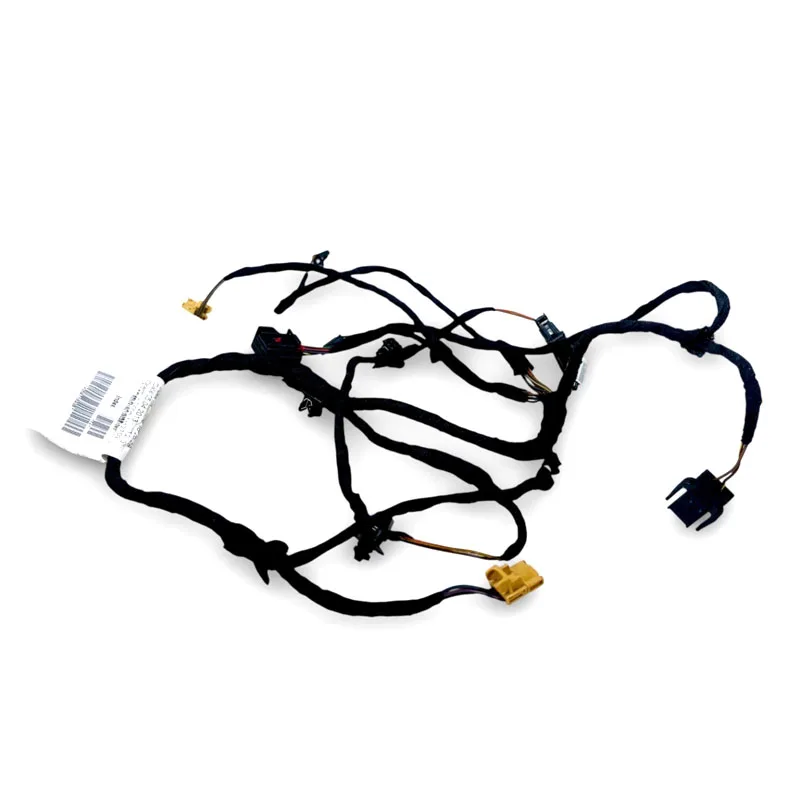

Seat wiring harnesses such as the Golf MK7 front left seat wiring loom 5G0971391 connect airbag modules, occupancy sensors, heating elements (typically 3.5A draw), lumbar adjustment motors, and seat position memory modules. These harnesses route under seat rails where zip-tie failures allow cable contact with moving mechanisms, causing insulation wear and short circuits.

Audi Q-Series SUV Harness Specifications

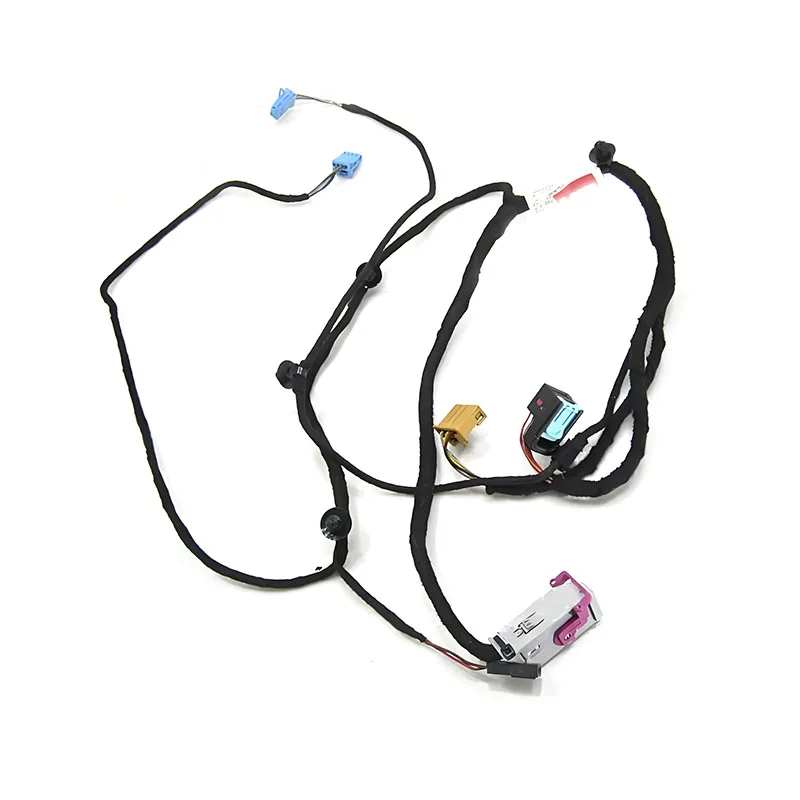

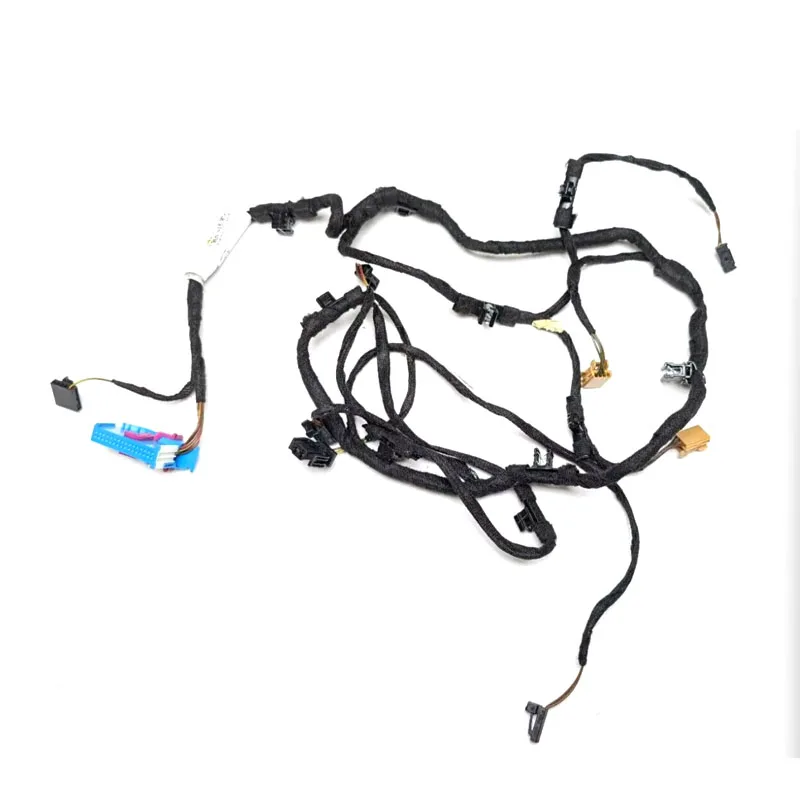

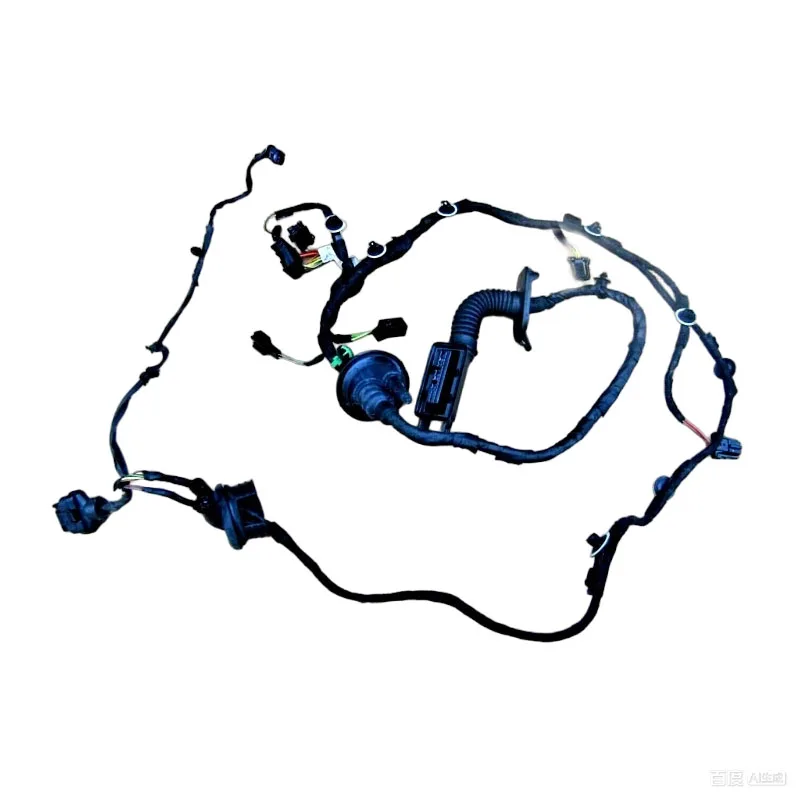

Q-series vehicles use heavier gauge wiring due to larger door mass and additional feature content. The Q5 8R front left door harness 8R0971029K includes reinforced connector housings and additional mounting clips to prevent harness movement during off-road articulation. These harnesses accommodate soft-close door modules, kick-sensor trunk opening on newer models, and puddle projector lighting with model-specific lens patterns.

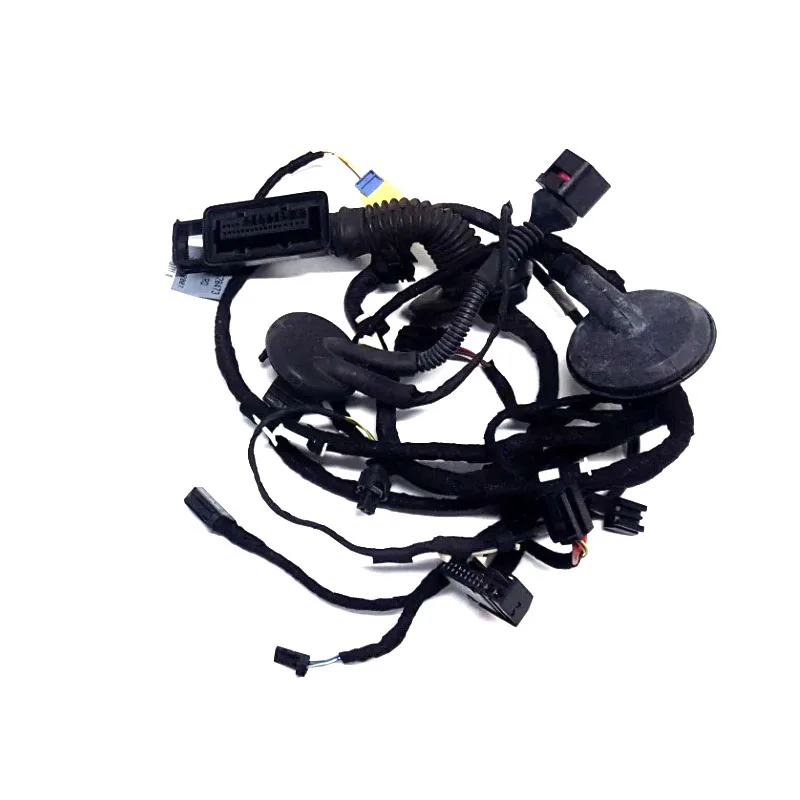

The Q7 4L front right door harness 4L0971030Q for earlier generation models uses 26-pin main connectors versus 18-pin configurations on compact models. This supports four-zone climate control interfaces, rear seat entertainment system controls in captain's chair configurations, and dedicated circuits for electrochromic mirror dimming synchronized with interior ambient lighting levels.

Mercedes-Benz Wiring Harness Differences

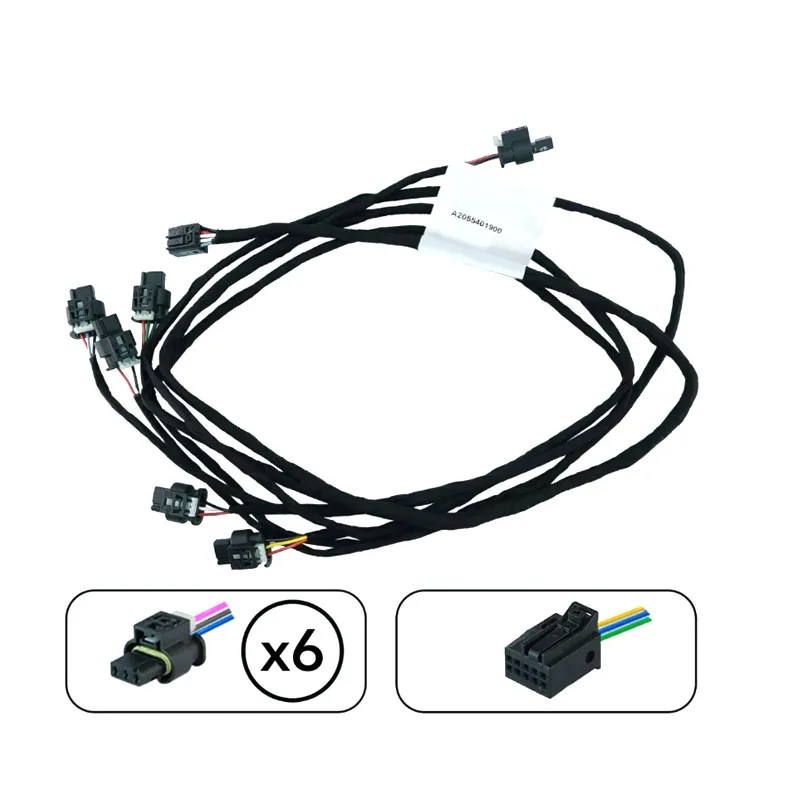

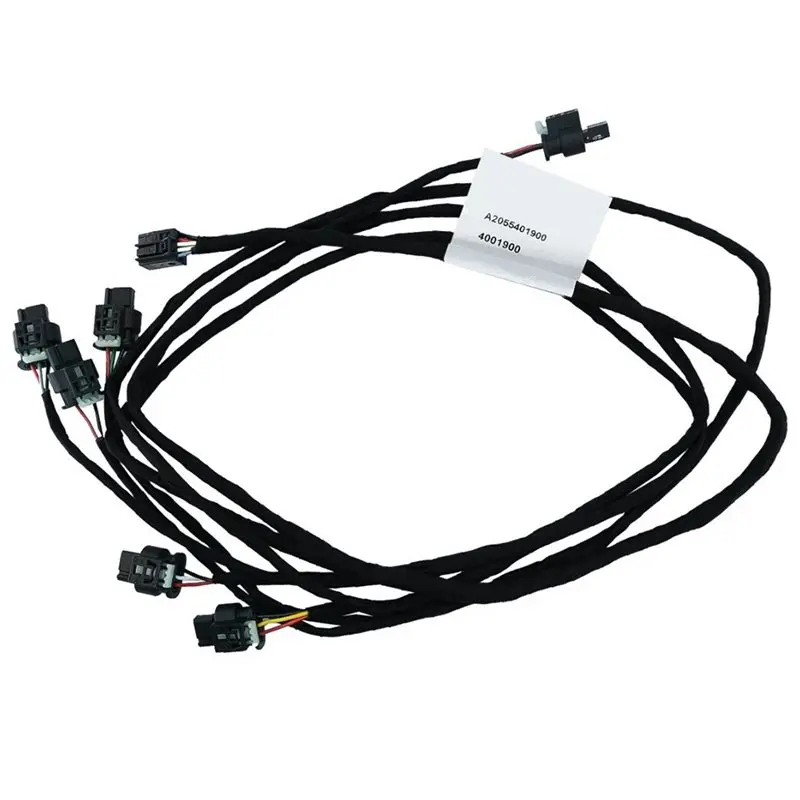

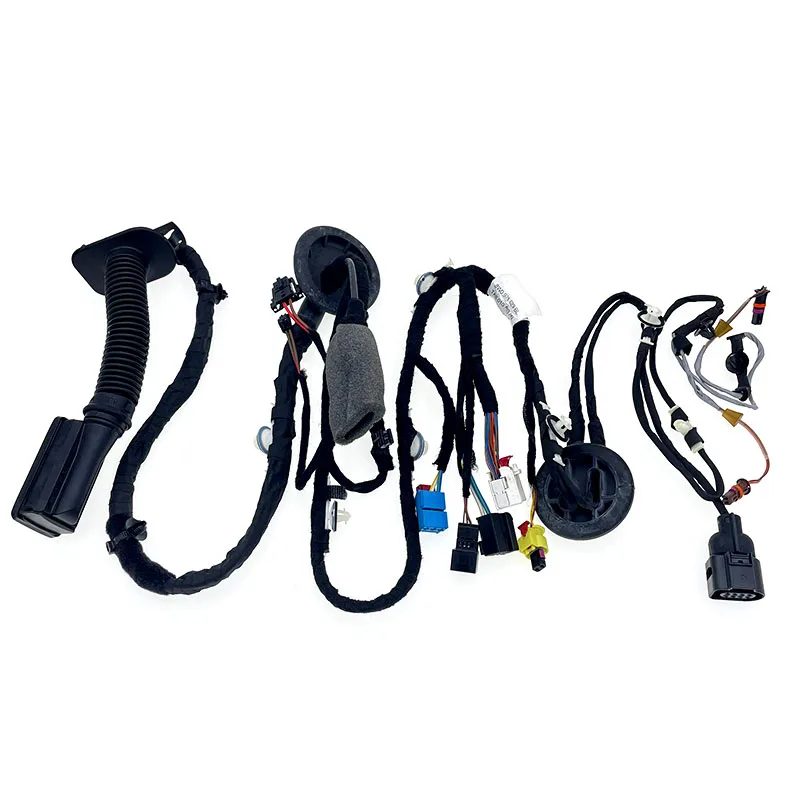

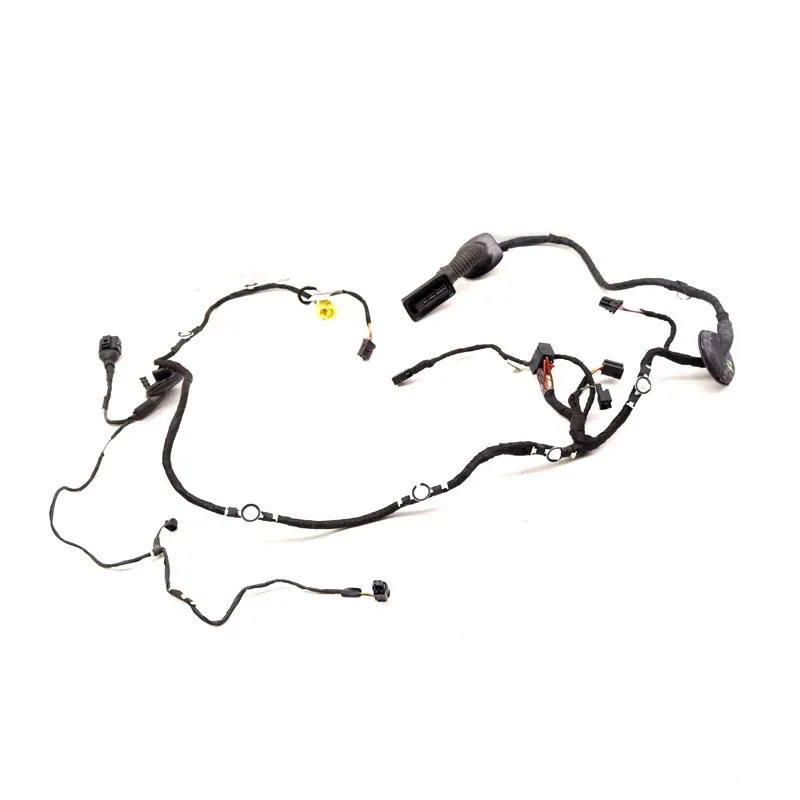

Mercedes harnesses like the W205 C-Class rear bumper parking sensor wiring harness A2055401900 integrate Parktronic ultrasonic sensors (operating at 40kHz) with CAN bus communication to the parking assist control module. These harnesses include pre-wired sensor pigtails with weatherproof sealing and color-coded connectors matching sensor positions (A, B, C, D from driver to passenger side).

The GLC X253 rear bumper electrical wiring harness A2535402306 adds trailer hitch module pre-wiring with dedicated 13-pin connector preparation. Mercedes uses aluminum-core conductors in select high-flex applications to reduce weight while maintaining current capacity, requiring careful handling during installation to prevent conductor fracture.

LED Lighting Integration Components

The A4 B9 LED exterior door handle light 8WD947133/134 represents factory LED upgrade paths requiring compatible wiring harnesses with PWM dimming circuits. These systems use 12V DC input with onboard LED drivers converting to 3.2V forward voltage for LED arrays. Retrofit installations require harnesses with pre-installed load resistors to prevent CAN bus error codes from reduced current draw versus halogen bulbs.

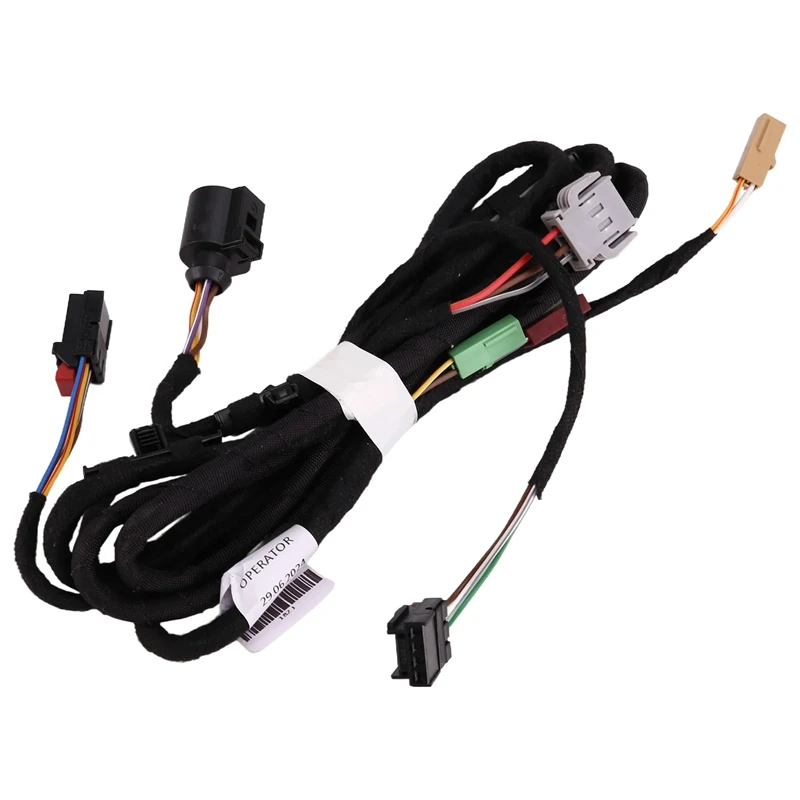

Door courtesy lighting retrofits like the Mercedes door light cable for W176/W205/W212/W213 include fiber optic light guides distributing single LED source illumination to multiple projection points. These harnesses route through door jamb grommets with IP67-rated connectors preventing moisture ingress that causes LED driver failures.

Installation Considerations and Common Issues

Proper installation requires disconnecting battery negative terminals for 10+ minutes to discharge airbag system capacitors before removing door panels. Route new harnesses through factory clips without excessive tension; allow 25-50mm service loop at hinge flexion points. Apply dielectric grease to all connector contacts before mating to prevent galvanic corrosion between dissimilar metals in connector pins.

Common failure modes include broken solder joints at connector backshells (identified by intermittent operation correlating with door position), abraded insulation at door jamb grommets, and corroded ground point connections. Water damage from clogged sunroof drains or failed window seals accelerates copper oxidation, increasing circuit resistance and causing voltage drops affecting motor operation.

Quality Indicators for Replacement Harnesses

Genuine OEM harnesses include date codes, part number labels, and proper connector keying that prevents incorrect installation. Quality aftermarket options use equivalent copper strand counts (typically 19-strand for 18 AWG, 26-strand for 20 AWG) and heat-shrink splices rather than crimp connections prone to loosening. Verify connector housings match original colors: Volkswagen uses gray for sensor circuits, black for power circuits, and brown for ground connections.

Inspect wire insulation for proper flexibility; overly stiff cables indicate PVC rather than cross-linked polyethylene construction. Quality harnesses include woven protective sleeving in high-flex areas and spiral wrap in static routing sections. Connector pins should show gold or tin plating without visible corrosion or discoloration from manufacturing processes.

Key Takeaways

• Vehicle-specific harnesses ensure proper connector fit, wire gauge sizing, and circuit routing without modification
• Front door harnesses typically manage 12-24 circuits including power windows, locks, speakers, and lighting systems
• Trunk harnesses fail primarily at flex points near hinges from repeated opening cycle stress
• Quality replacements use copper conductors with cross-linked polyethylene insulation rated for automotive temperature ranges
• Installation requires proper strain relief, dielectric grease application, and adequate service loops at flex points
• Mercedes and Audi Q-series use heavier gauge wiring and reinforced connectors for additional feature content

Frequently Asked Questions

Are wiring harnesses side-specific for left and right doors?

Yes, door harnesses are side-specific with different connector pinouts, wire lengths, and mounting clip positions. Left-hand drive and right-hand drive variants also differ significantly. Always verify part numbers match your vehicle's door position and market specification.

Can I repair a damaged harness instead of replacing it?

Minor repairs using solder joints and heat-shrink tubing work for single-wire breaks, but harnesses with multiple damaged circuits, corroded connectors, or water damage should be replaced. Improper repairs can cause electrical shorts, airbag system faults, or fire hazards.

Why do trunk harnesses fail more frequently than door harnesses?

Trunk harnesses experience higher flex cycle counts concentrated at hinge pivot points with tighter bend radii than door applications. Combined with exposure to weather elements and trunk load stress, this accelerates conductor fatigue and insulation cracking leading to circuit failures.

Do aftermarket harnesses work with factory diagnostic systems?

Quality aftermarket harnesses maintain factory wire colors, connector types, and circuit specifications for full compatibility with VAG-COM, ODIS, and Mercedes STAR diagnostic interfaces. However, harnesses missing proper shielding or incorrect wire gauges may trigger intermittent fault codes or communication errors.
