Retrofitting modern infotainment systems, head-up displays, or camera systems into older vehicles requires specialized wiring harnesses that handle protocol conversion and connector adaptation. HSD (High-Speed Data) and LVDS (Low-Voltage Differential Signaling) cables form the backbone of these upgrades, transmitting video and control signals between head units, displays, and vehicle networks.

BMW HSD Retrofit Cables for NBT and CIC Head Units

BMW F-series and earlier E-series vehicles use proprietary HSD connections for video transmission between navigation head units and displays. The HSD Wire LVDS Cable 1m for F20 F22 F34 F32 F15 F16 X5 X6 NBT EVO Head Unit addresses the specific wiring requirements for NBT EVO retrofits, which are never plug-and-play installations. NBT EVO systems require ethernet wiring routed through the vehicle and a DC-DC converter stepping 12V down to 9V for the APIX2 display power line.

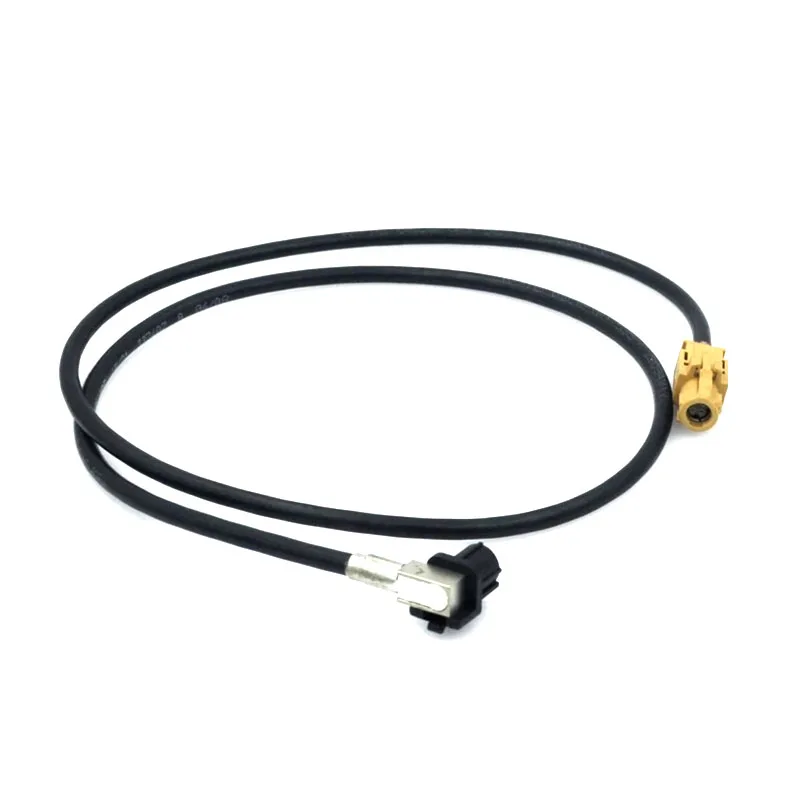

Pre-LCI BMW F-series vehicles (F01, F07, F10, F25) originally equipped with CCC or CIC head units face electrical incompatibilities when upgrading to NBT units. The retrofit process eliminates obsolete MOST optical bus components like MULF, TCU, ComBox, and CD-Changer modules to restore the optical chain. The Car HSD Wire Video LVDS Cable 80cm For CIC Head Unit E90 E70 E60 Navigation provides the correct pinout for E-series CIC installations, maintaining compatibility with PDC, camera modules, and drivetrain functions.

For F10, F20, F30, and F01 platforms, the Retrofit HSD cable wire oabr usb For F10 F20 F30 F01 F15 Navigation NBT EVO includes integrated USB and OABR (optical audio bus ring) connections. This combination cable simplifies installations by consolidating multiple connections into a single harness, reducing installation time and potential wiring errors.

BMW Camera and Rear View Harnesses

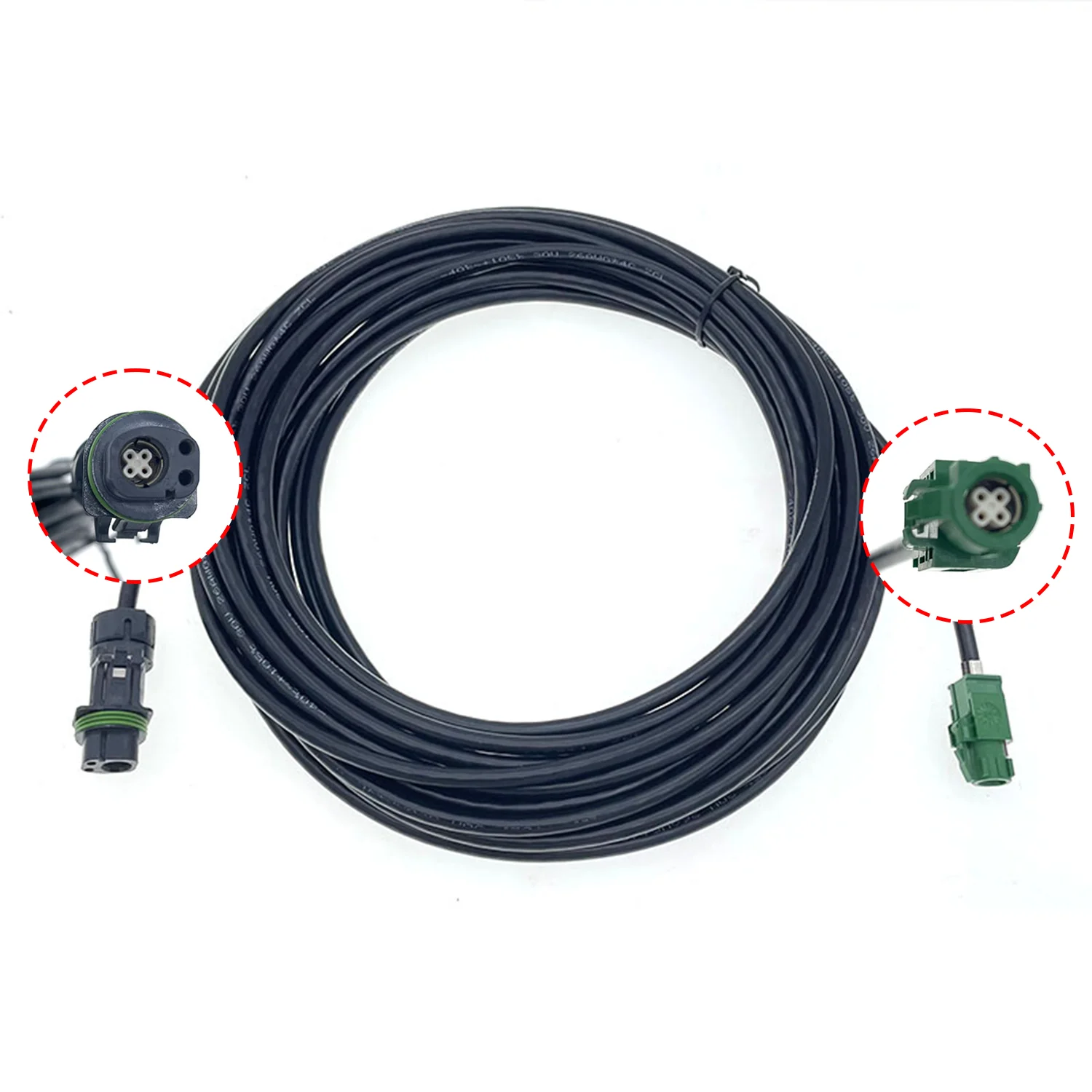

Camera integration presents unique challenges in BMW retrofits due to proprietary HSD video transmission protocols. The 6.5M Camera harness For F07 F10 F11 F12 F01 F02 F03 HSD WIRE provides the extended length necessary for routing video signals from trunk-mounted camera modules to front-mounted head units in long-wheelbase sedans and Gran Turismo models. The 6.5-meter length accommodates the complete run without requiring splice connections that could degrade signal quality.

The NEW For 3 F30 HSD REAR VIEW WIRE 61129281712 9281712 uses the OEM part number designation, indicating compliance with BMW's original connector specifications. This matters because head units perform VIN-specific security checks and may reject non-compliant camera signals. For older E70 X5 platforms, the 1PCS For X5 E70 HSD CABLE 9244256 61119244256 maintains compatibility with the E-series HSD protocol, which differs from F-series implementations in signal voltage and timing.

BMW HUD (Head-Up Display) Retrofit Cables

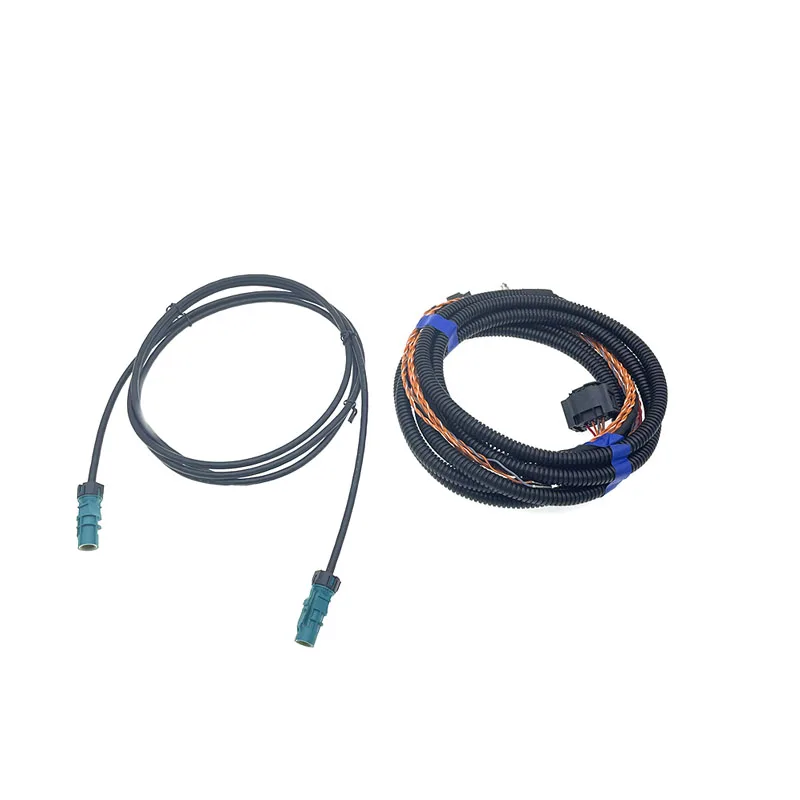

Head-up display retrofits require both power delivery and bi-directional communication between the head unit and projector module. The retrofit HUD cable HSD Head up For X5 X6 F15 F85 F16 F86 F10 F30 F20 M3 M4 covers multiple F-series platforms using the first-generation HUD protocol. BMW's HUD system transmits vector graphics rather than simple video, requiring specific protocol support in both the cable and head unit firmware.

G-series vehicles introduced the HSD2 protocol with increased bandwidth for full-color HUD displays. The RETROFIT display head-up Cable HSD2 For G30 G31 G32 G11 G12 G01 G02 M5 X3 X4 provides the updated connector pinout and signal conditioning necessary for these newer systems. The HSD2 standard supports up to 1920×720 resolution at 60Hz, compared to the original HSD's 800×480 limitation. A separate Retrofit HUD cable HSD Head up For G30 G31 G32 G11 G12 G01 G02 M5 X3 X4 Idrive 6 variant includes iDrive 6-specific integration features.

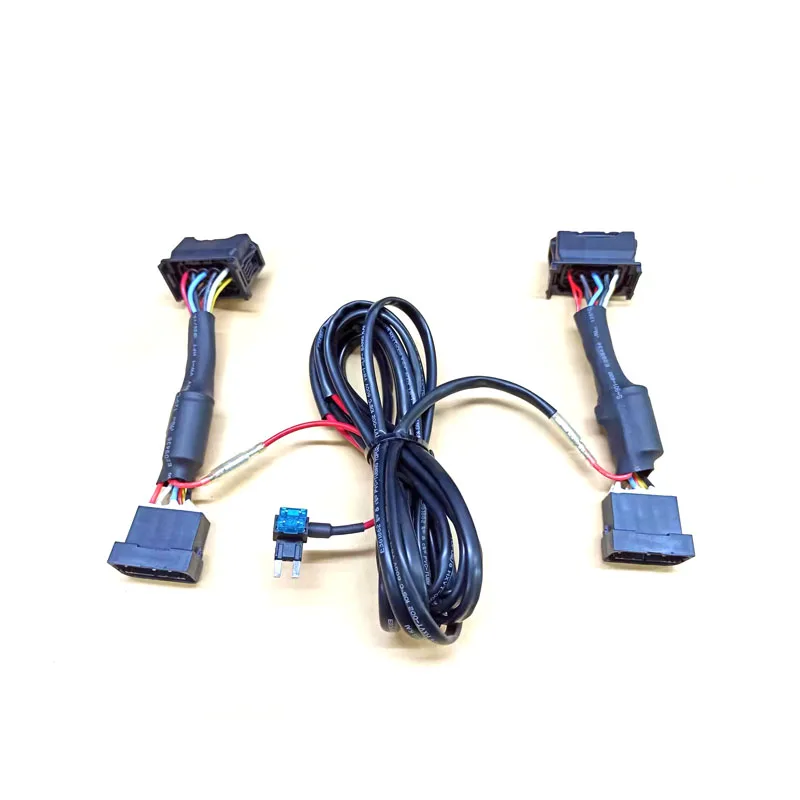

The HUD cable HSD Head up For 3 4 F20 F22 F30 F31 F32 F33 F34 F36 X5 F85 F15 F16 and Retrofit HUD cable HSD Head up adaptor kit For 4 series F32 F36 M4 F82 F83 address the specific dashboard wiring configurations in these compact and mid-size platforms, where space constraints require different routing paths compared to larger sedans.

Audi MIB Platform Retrofit Cables

Audi's MIB (Modular Infotainment Platform) systems use LVDS connections for virtual cockpit and head-up display integration. The 1.8M FOR HSD A3/A4/A5/Q5/Q7 liquid crystal Screen Virtual Cluster LVDS LCD Install Special Wiring harness Wire provides the 1.8-meter length required for routing signals from the dashboard-mounted head unit to the instrument cluster position. Virtual cockpit retrofits require both video transmission and CAN bus integration for vehicle data display.

The Night vision System Upgrade Adapter cable Wiring Harness cables FOR A6 A7 A8 Q7 Q8 addresses the specific protocol requirements of Audi's infrared camera systems, which integrate with both the head unit and virtual cockpit displays. Night vision systems require real-time video processing and thermal image overlay capabilities, demanding higher bandwidth than standard camera feeds.

Volkswagen MQB Platform Retrofit Solutions

The MQB (Modularer Querbaukasten) platform shares components across VW Group brands but requires platform-specific harnesses due to different dashboard configurations. The Retrofit HUD cable HSD Head up adaptor For MQB plateform Golf tiguan provides the correct connector types for the shared instrument cluster architecture used in Golf, Tiguan, Passat, and related models. MQB HUD systems communicate via FlexRay protocol in addition to LVDS video, requiring cables that maintain proper impedance matching for both signal types.

Mercedes-Benz W205 Retrofit Cables

Mercedes-Benz uses a different HSD implementation than BMW despite similar naming. The Retrofit hud Head-Up display Cable wire video For W205 C class GLC addresses the specific pinout and protocol requirements of Mercedes' Command Online system. W205 platforms integrate HUD data through the MOST 150 optical network rather than dedicated video cables, requiring protocol conversion at the adapter level.

Porsche PCM Retrofit Adapters

Porsche Communication Management (PCM) systems present unique challenges due to proprietary connections and integration with chronograph functions. The RETROFIT adapt cable Chrono Analog Clock For Macan PCM pre lci specifically addresses the analog clock module connection in pre-facelift Macan models, where the clock shares connector space with PCM communication lines. This cable maintains chronograph functionality while enabling upgraded PCM head units.

Lighting System Retrofit Adapters

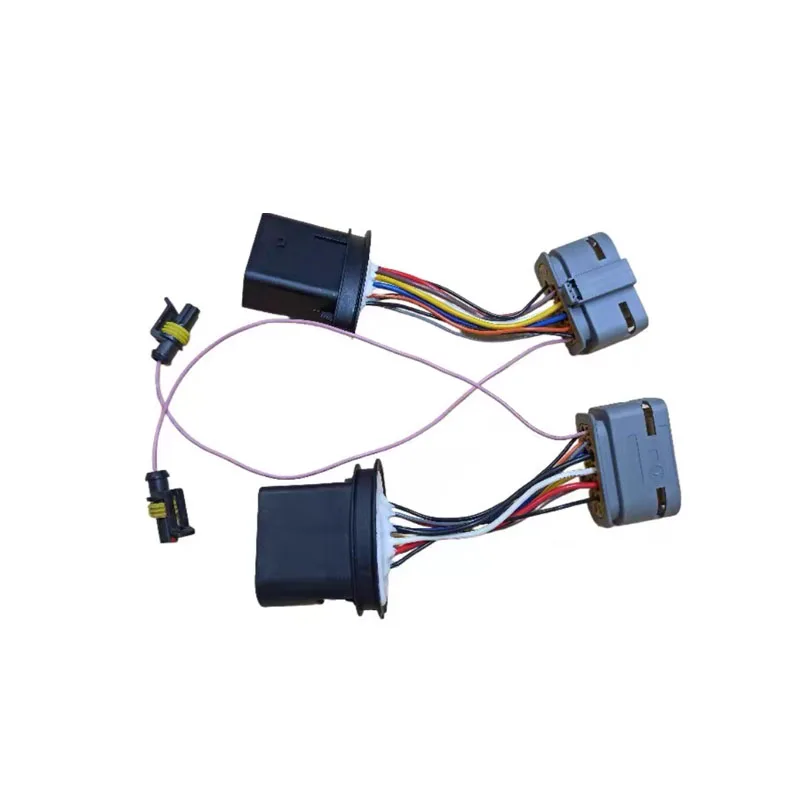

Beyond infotainment, retrofit harnesses enable lighting upgrades across platforms. The Retrofit facelift LCI tail head light cable adaptor For Q5 8R Pre and 2x Retrofit facelift LCI xenon Head light cable adaptor For x1 e84 pre lci address the connector and protocol changes BMW and Audi implement during mid-cycle refreshes. LCI (Life Cycle Impulse) updates often change headlight communication protocols from simple power delivery to CAN bus-controlled adaptive lighting systems.

The Retrofit halogen to xenon Head light cable adaptor For GLK provides the ballast power connections and CAN bus integration necessary for xenon upgrades in Mercedes GLK models originally equipped with halogen lighting. The Retrofit Led IQ Head light cable Illuminated grill emblem adaptor For ID.4 ID 4 id4 Cro addresses the specific requirements of VW's electric platform, where LED matrix headlights integrate with driver assistance camera systems.

Installation Considerations and Technical Requirements

All retrofit installations require VIN-specific FSC (Freischaltcode) coding to enable features in BMW systems. Head units perform security checks via K-CAN and MOST buses, rejecting incompatible or improperly coded modules. Pre-installation planning should verify that the donor head unit's software version supports the target vehicle's option codes, as features like PDC, KAFAS camera systems, and HUD require specific head unit capabilities.

Cable quality significantly impacts signal integrity in high-speed digital video applications. LVDS cables must maintain 100-ohm differential impedance across their length, with any deviation causing video artifacts or complete signal loss. Shielding effectiveness matters particularly in engine bay routing, where electromagnetic interference from ignition systems and alternators can corrupt differential signals. Quality cables use twisted pair construction with 90% or greater shield coverage.

Power delivery represents another critical specification. APIX connections in BMW NBT EVO systems require precisely regulated voltage, as both over-voltage and under-voltage conditions trigger head unit protection shutdowns. The required DC-DC converter must provide clean 9V power with less than 50mV ripple to prevent display flickering and communication errors.

Key Takeaways

• HSD and LVDS cables transmit video and control signals for infotainment, HUD, and camera retrofits
• BMW NBT EVO retrofits require custom ethernet wiring, microphone relocation, and 12V-to-9V conversion
• Pre-LCI to LCI upgrades necessitate protocol adapters and removal of obsolete MOST components
• VIN-specific FSC coding is mandatory for BMW retrofits to enable installed features
• Cable impedance matching and shielding quality directly affect signal reliability
• Platform-specific harnesses account for different connector pinouts and communication protocols

Frequently Asked Questions

Can I use any HSD cable for BMW NBT retrofits?

No. NBT and NBT EVO systems use different protocols and connector pinouts. NBT EVO requires APIX2 connections with 9V power delivery, while standard NBT uses APIX with 12V power. Additionally, F-series and E-series platforms have different HSD implementations. Using incorrect cables results in no video output or head unit errors.

Why do camera harnesses need specific lengths?

LVDS signal integrity degrades over distance due to capacitance and resistance in the cable. Each platform requires specific lengths to reach from camera mounting points to head unit locations without excess cable that could induce signal reflections. Too-short cables won't reach; too-long cables create impedance mismatches causing video artifacts.

Do retrofit cables work across different vehicle brands?

No. BMW, Audi, Mercedes, and Porsche use completely different connector types, pinouts, and communication protocols despite sometimes using similar naming conventions. A BMW HSD cable will not fit or function in an Audi application. Even within a single brand, different platform generations require specific cables.

What happens if I skip VIN coding after a BMW retrofit?

The head unit will operate in limited mode or not at all. BMW head units verify installed options against VIN-coded vehicle configuration. Without proper coding, features like navigation, HUD, cameras, and even basic radio functions may be disabled. NBT EVO units are VIN-locked and cannot be swapped between vehicles without dealer intervention.
