Heated seat retrofits depend on platform-specific wiring harnesses that match your vehicle's electrical architecture and connector types. VW Group vehicles use distinct harnesses for PQ, MQB, and MQB EVO platforms, while BMW and Mini require separate F-series and R-series specific cables. These adapter harnesses bridge the gap between aftermarket or OEM heating elements and your vehicle's existing power distribution system.

Understanding Platform Architecture Requirements

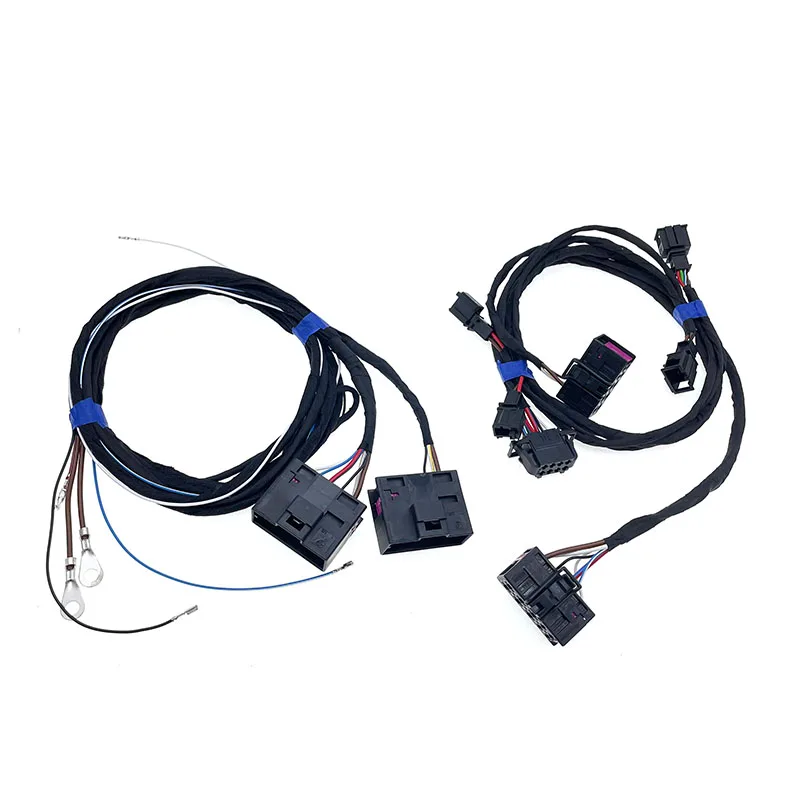

Vehicle manufacturers design electrical systems around platform architectures that share common components across multiple models. VW Group's PQ platform (used in Golf 6/MK6 and Passat B6) uses different connector pinouts and voltage management than the newer MQB platform (Golf 7/MK7, Passat B8, Tiguan MK2). The FOR PQ Cars Golf 6 MK6 Front Heating Seat Upgrade Adapter Install Wires Harness specifically addresses PQ platform requirements with appropriate connector types for models built between 2008-2015.

MQB platform vehicles require harnesses compatible with their unified electrical architecture. The For Golf 7 MK7 Passat B8 Tiguan MK2 MQB CARS Front or Rear heating seat Upgrade Adapter Cable Wiring Harness cables accommodates both front and rear seat installations across the MQB lineup. This cross-compatibility stems from standardized connector layouts introduced in MQB vehicles from 2012 onward.

MQB EVO Platform Differences

The latest MQB EVO platform introduced with Golf 8 brings updated electrical protocols and connector modifications. Standard MQB harnesses will not fit MQB EVO vehicles due to changed pin assignments and integrated safety systems. The For Golf 8 MQB EVO CARS Front heating seat Upgrade Adapter Cable Wiring Harness cables includes updated connectors and resistor values required for proper communication with the vehicle's climate control module and safety systems.

BMW F-Series and Mini R-Series Specifications

BMW F-series platforms (F10, F11, F15, F30, F32, F34, F36, F80) use LIN-bus communication for seat heating control. The Retrofit SEAT HEATER SWITCH HEATED SEAT cable For F30 F32 F80 F15 F11 F10 incorporates the necessary communication protocols to integrate with BMW's existing switch modules. These harnesses typically include inline resistors to prevent error codes in the vehicle's electrical monitoring system.

Mini R-series vehicles (R50, R52, R53) use simpler direct-switched heating circuits compared to later models. The Front SEAT HEATER Heated adaptor cable For R50 R52 R53 provides straightforward power distribution without complex communication protocols, making installation more accessible for these earlier chassis codes built between 2001-2008.

Audi-Specific Model Requirements

Audi models often share VW Group platforms but use different control modules and connector housings. The Front seat heating wire for A6 4F C6 addresses the C6 generation A6 (2004-2011) which uses a hybrid system combining elements of both PQ46 and MLB platforms. These harnesses must account for Audi's specific MMI integration and comfort control modules that differ from comparable VW implementations.

Skoda vehicles on MQB platforms generally use identical electrical architectures to VW counterparts. The Front heating seat Upgrade Adapter Cable Wiring Harness cables For Kodiaq fits the MQB-A platform used in Kodiaq models, with extended harness lengths to accommodate the larger SUV body and longer cable runs to rear seat positions.

Complete System Components

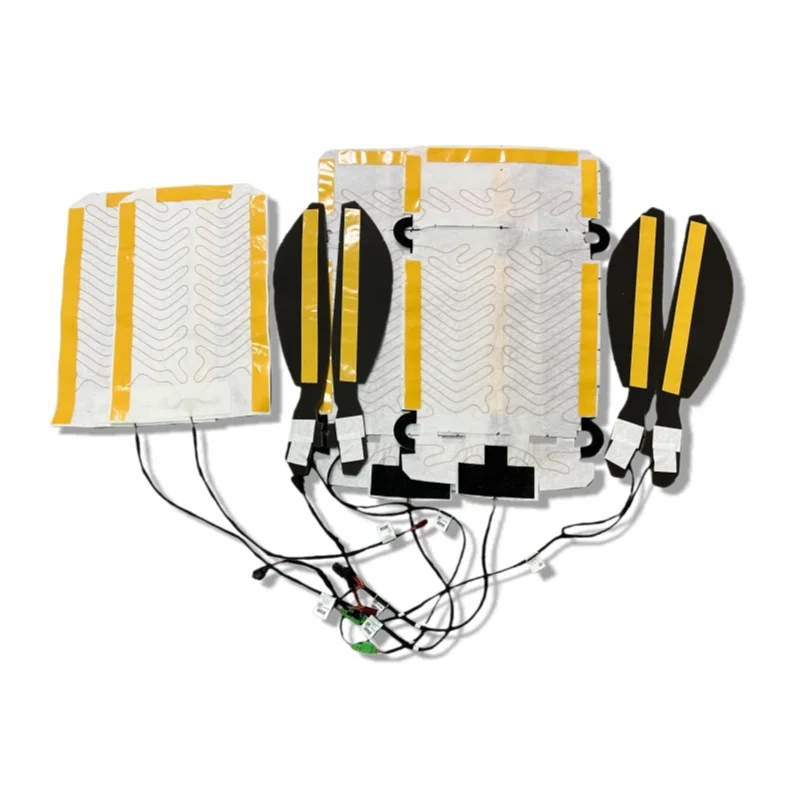

Full heated seat retrofits require more than adapter cables. The For GOLF MK 7 Heated Front Seats And Wire Harness package typically includes the heating elements, wiring harness, and necessary connectors for a complete front-seat installation. These comprehensive kits ensure component compatibility and eliminate the need to source multiple parts from different suppliers.

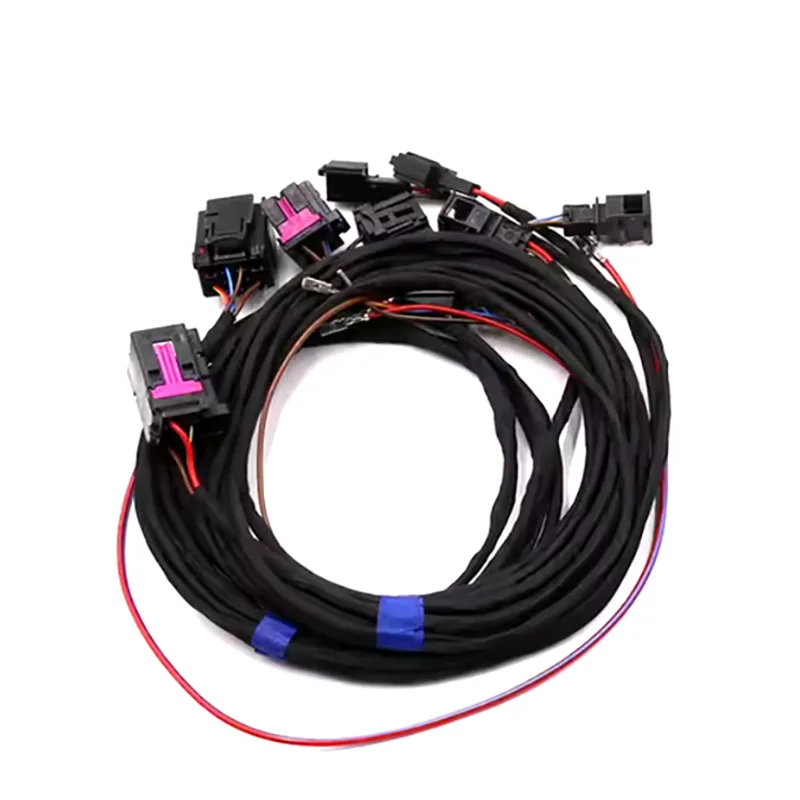

The Front Seat Heating wiring harness Cable Loom Heated Seats Adjustment For Passat B6 represents a complete cable loom including power distribution circuits, control wiring, and adjustment functionality integration. Full looms simplify installation by providing pre-routed cables with correct lengths and connector orientations for specific chassis layouts.

Installation Considerations and Technical Specifications

Heated seat harnesses typically operate at 12V DC with current draws between 3.5-5.0 amps per seat depending on heating element resistance. Most systems use 30-45 ohm heating pads with dual-zone capability (upper back and lower cushion). Wiring gauge must support sustained current loads without excessive voltage drop—typically 16-18 AWG for power circuits and 20-22 AWG for control signals.

Installation requires accessing existing seat connectors beneath seats, typically secured with 13mm or 15mm bolts on sliding rails. Harnesses must route through seat frames without interference with airbag systems or mechanical adjustment mechanisms. Some platforms require coding through diagnostic software to activate heated seat functions in the vehicle's control modules after physical installation.

Connector Types and Pin Assignments

VW PQ platforms use 4-pin Tyco connectors for seat heating, while MQB platforms standardized on 6-pin Mini-Timer connectors with additional pins for diagnostic feedback. BMW F-series vehicles employ 8-pin Molex MicroFit connectors incorporating LIN-bus communication wires alongside power distribution. Verifying connector shell colors and keying orientations prevents installation errors—PQ connectors typically use gray housings while MQB uses brown.

Compatibility Verification Methods

Check your vehicle's build date and platform designation before purchasing harnesses. VW vehicles display platform codes in door jamb stickers and service documentation. Early production runs sometimes mix components from overlapping platforms—late 2012 Golf 6 models may include pre-MQB electrical components despite PQ platform designation.

Physical inspection of existing seat connectors provides definitive compatibility confirmation. Count connector pins, measure connector shell dimensions, and identify locking tab configurations. Photograph existing connectors before disassembly to verify harness compatibility with actual installed components rather than relying solely on model year specifications.

Additional Retrofit Considerations

Some harnesses enable additional interior upgrades beyond basic heating functionality. The For F36 F30 F32 F34 F20 Illuminated Cupholder LED Light Retrofit Cable adapt demonstrates how platform-specific cables facilitate multiple comfort enhancements. While primarily focused on LED lighting rather than seat heating, this illustrates the broader retrofit ecosystem available for platform-specific upgrades.

Key Takeaways

• Platform architecture (PQ, MQB, MQB EVO, F-series) determines harness compatibility—verify your specific platform before purchasing
• Complete kits including heating elements and harnesses simplify installation and ensure component matching
• MQB EVO requires updated harnesses incompatible with standard MQB due to electrical protocol changes
• BMW F-series harnesses must support LIN-bus communication for proper integration with factory systems
• Physical connector verification provides more reliable compatibility confirmation than model year alone

Frequently Asked Questions

Can I use MQB harnesses on MQB EVO vehicles?

No, MQB EVO vehicles require specific harnesses with updated connectors and electrical protocols. Standard MQB harnesses have incompatible pin assignments and will not communicate properly with Golf 8 and newer MQB EVO control modules, potentially causing error codes or non-functional heating.

Do heated seat harnesses require coding after installation?

Most VW MQB and BMW F-series platforms require diagnostic coding to activate heated seat functionality after physical installation. PQ platform vehicles and Mini R-series typically work without coding. Access to VCDS (VW) or ISTA (BMW) diagnostic software enables necessary control module adaptations.

What wire gauge is appropriate for heated seat power circuits?

Power distribution circuits should use 16-18 AWG wire to handle 3.5-5.0 amp current draws without excessive voltage drop. Control signal wires can use lighter 20-22 AWG gauge. Quality harnesses include appropriately rated wiring with proper insulation ratings for under-seat installation environments.

Are front and rear seat harnesses interchangeable?

No, harnesses have specific lengths and connector configurations for their intended positions. Front seat harnesses typically measure 1.5-2.0 meters while rear harnesses extend 3.0-4.0 meters to reach second-row seating. Connector orientations also differ based on mounting positions and control module locations.
