Climate control switch panels, AC vent trims, and related wiring harnesses are essential interior components for Volkswagen and Audi vehicles that frequently require replacement due to wear, fading, or electronic failure. These parts range from cosmetic piano paint trim frames to functional climatronic control units and the specialized wiring harnesses that connect them.

Climate Control Switch Panels and Trim Frames

The LCD Air Conditioner Switch Panel Climatronic for Passat B8 represents the functional heart of dual-zone climate systems, featuring digital LCD displays that show temperature settings and airflow distribution. These panels use backlit LCD technology that operates on 12V automotive electrical systems and communicate via CAN-bus protocols with the vehicle's main computer. OEM panels typically include integrated circuit boards with surface-mounted components rated for automotive temperature ranges (-40°C to +85°C).

Piano paint finish trim frames like the Frame Panel LED LCD liquid crystal Air Conditioner Switch for Tiguan II provide glossy black surrounds that match factory aesthetics. Piano paint finishes use multiple layers of clear coat over black base paint, creating a mirror-like surface. Quality indicators include even coating thickness, absence of orange peel texture, and UV-resistant clear coats that prevent yellowing. These frames typically mount using spring clips or adhesive backing and must precisely match the vehicle's dashboard contours.

The 3G8863041 Climate Control Panel Trim Frame for Arteon features brake gloss finish specific to VW's premium models. This YI2 color code denotes a particular shade of glossy black used across VAG premium interiors. When selecting trim frames, verify the exact part number matches your vehicle's production date, as mid-cycle refreshes often alter dashboard dimensions by 1-3mm, preventing proper fitment.

Dashboard Air Conditioning Vents and Grilles

Dashboard vents serve both functional and aesthetic purposes. The Black Chrome Piano Paint Dashboard vents for Passat CC B6 B7 combine the airflow direction mechanism with decorative trim. These vents use ball-and-socket joints for directional adjustment, with internal fins that should move smoothly without binding. Quality vents feature PA66 plastic housings with UV stabilizers to prevent brittleness over time.

The 3 PCS/sets Car Center Console Air Condition Vents for Passat B6 B7 CC R36 provides complete center stack replacement, including left, center, and right vents with part numbers 3AB 819 701 A, 3AB 819 702 A, and 3AD 819 728 A. These sets ensure color matching across all three vents, crucial since individual vents purchased at different times may exhibit slight shade variations in piano paint finish.

The Rear Air Conditioning Outlet Ventilation AC Vent Grille for T-ROC addresses rear passenger climate control, mounting in the center console or B-pillar depending on trim level. Rear vents typically connect to the main HVAC system via flexible ducting and include manually adjustable louvers. Installation requires removing console trim panels and ensuring proper duct connection to prevent air leaks.

Specialized Control Switches and Modules

The For A6 Auto Start Stop PDC Switch Panel 4G C7 4G0927137D combines multiple functions including engine start-stop control and parking distance control activation. These switches use momentary contact mechanisms rated for 100,000+ cycles and illuminate using surface-mounted LEDs. The 4G0 927 137 D part number is specific to C7 generation A6 models with factory PDC systems.

Multi-function switches like the 3C5 953 501 BM Combination Switch for Passat 3C CC B6 B7 integrate wiper, turn signal, and high beam controls into a single stalk assembly. These switches contain multiple Hall effect sensors for turn signal self-canceling and rain sensor integration. The BM suffix indicates a specific electrical variant with additional pin connections for vehicles equipped with automatic wipers.

The 3GD941633D Headlight Switch Control Unit for PASSAT B8 3G manages lighting functions including auto headlamps, coming home/leaving home features, and fog lamp activation. These modules include light sensors typically mounted behind the windshield and require VCDS coding after installation to activate all features. Part number 3G0941633R represents an alternate supplier for the same specification.

Wiring Harnesses and Connection Cables

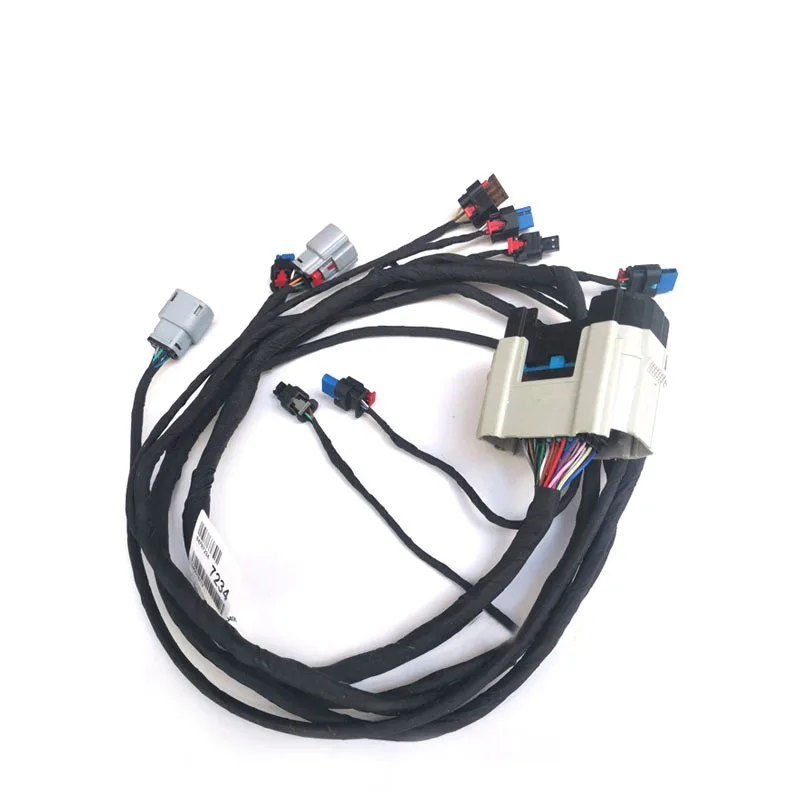

Climate control system wiring harnesses use automotive-grade copper wire with cross-linked polyethylene insulation rated for 105°C continuous operation. The Upgrade Climate Control Switch Panel Harness for Golf 7 PASSAT B8 enables retrofitting of automatic climate control in vehicles originally equipped with manual systems. These harnesses include additional pins for motorized blend door actuators and dual-zone temperature sensors.

The Air Conditioning Vent Cable for Passat B6 B7 CC with part numbers 3AA 971 315 and 3AD 819 728A connects vent position actuators to the climate control module. These cables use individual wire gauges appropriate to current loads: typically 0.5mm² for sensor signals and 1.0mm² for actuator power. Proper crimping of terminals is critical, as poor connections cause intermittent operation.

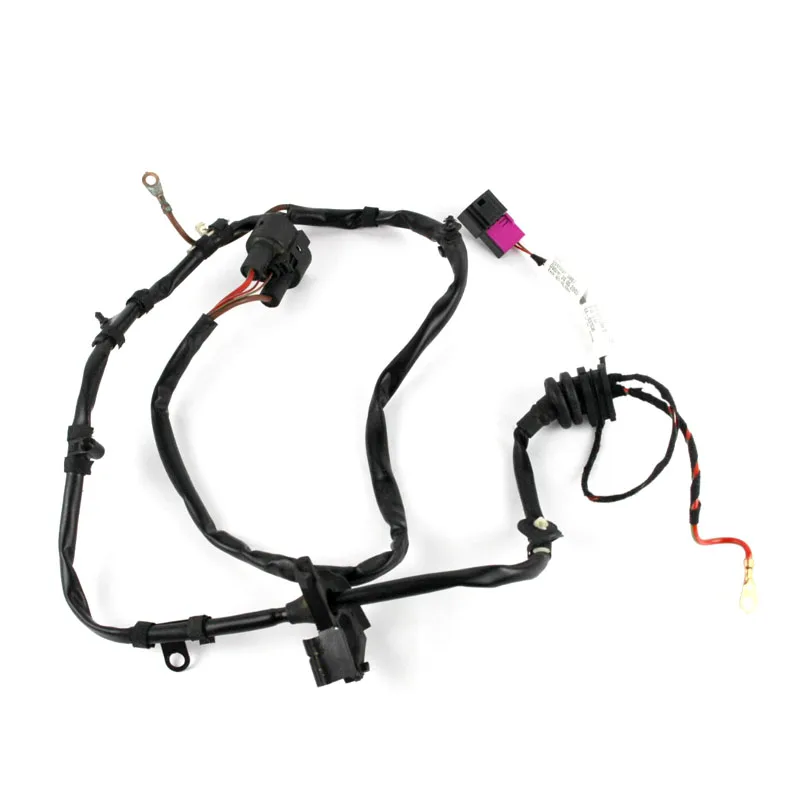

The 1K1971566AD Wiring Harness Air Conditioning Cable for Eos GOLF 5 addresses the specific routing requirements of convertible and hatchback body styles. Harnesses for convertibles include additional flex points and weather sealing where wires pass through folding roof mechanisms. Installation requires following factory routing precisely to avoid pinch points that could sever conductors.

The 4F1971284D Wiring Harness for A6 4F Electric Fan Blower handles high-current blower motor connections, typically rated for 15-20 amperes. These harnesses include in-line fuse holders and use 14-16 AWG wire for power distribution. Overheating or melted connectors indicate undersized wire gauge or excessive resistance from corrosion.

Electronic Control Modules

The 5QA919298C electronics module for TIGUAN MK2 serves as the central control unit for climate functions, processing inputs from temperature sensors, sunload sensors, and user controls to manage HVAC actuators. These modules contain microprocessors operating at 40-80 MHz and require proper grounding to prevent electromagnetic interference. Part coding via OBDII scan tool is mandatory after replacement to match vehicle configuration.

Installation Considerations and Compatibility

MQB platform vehicles (Golf 7, Passat B8, Tiguan MK2, Octavia) share many climate control components, but subtle differences in connector pinouts prevent direct interchange without harness modifications. Always verify the exact part number including suffix letters, as these indicate electrical variants. For example, vehicles with heated steering wheels require additional pins in climate control harnesses.

Piano paint trim pieces require careful handling during installation. Remove protective film only after securing all mounting clips to prevent scratching. Clean mounting surfaces with isopropyl alcohol to ensure adhesive backing bonds properly. Avoid using silicone-based cleaners on piano paint surfaces, as these leave residues that attract dust.

When replacing climate control panels, photograph all connector positions before removal. Many panels use similar-looking connectors that differ in pin count or keying. Forcing incorrect connectors damages both the harness and module. Test all functions before reassembling dashboard trim to avoid repeated disassembly.

Quality Assessment and Common Issues

Aftermarket climate control panels vary significantly in LCD quality. Premium units use IPS LCD technology with 140-degree viewing angles, while economy versions use TN panels that wash out when viewed off-axis. Backlight uniformity is critical—inspect for bright spots or dark edges before installation. LED backlights should produce 6500K color temperature for proper white appearance.

Wiring harnesses should feature molded connector bodies rather than hand-assembled housings. Molded connectors provide superior moisture resistance and retain terminal position under vibration. Inspect wire insulation for flexibility—brittle insulation indicates improper plasticizer content that will crack prematurely. Copper wire should be bright and untarnished; oxidation appears as dark discoloration.

Switch panels commonly fail due to solder joint cracking from thermal cycling. Symptoms include intermittent operation or buttons that require hard pressing. These failures are repairable through PCB reflow soldering but require specialized equipment. Prevention involves avoiding dashboard temperature extremes by parking in shade when possible.

Model-Specific Technical Details

Passat B6/B7 (2006-2015) climate systems use Climatronic I or II, distinguished by button count and display type. The Rear air conditioning panel switch for Passat B7 3AD 907 049A applies only to vehicles with three-zone climate control, a factory option that includes rear cabin temperature control and heated rear seats. Retrofitting requires both the switch panel and additional wiring harness from the front control module.

Tiguan MK2 vehicles (2016+) introduced touch-sensitive climate controls on higher trim levels, replacing physical buttons. Touch panels use capacitive sensing requiring recalibration after replacement. The calibration procedure involves accessing hidden service menus through specific button press sequences documented in factory service literature.

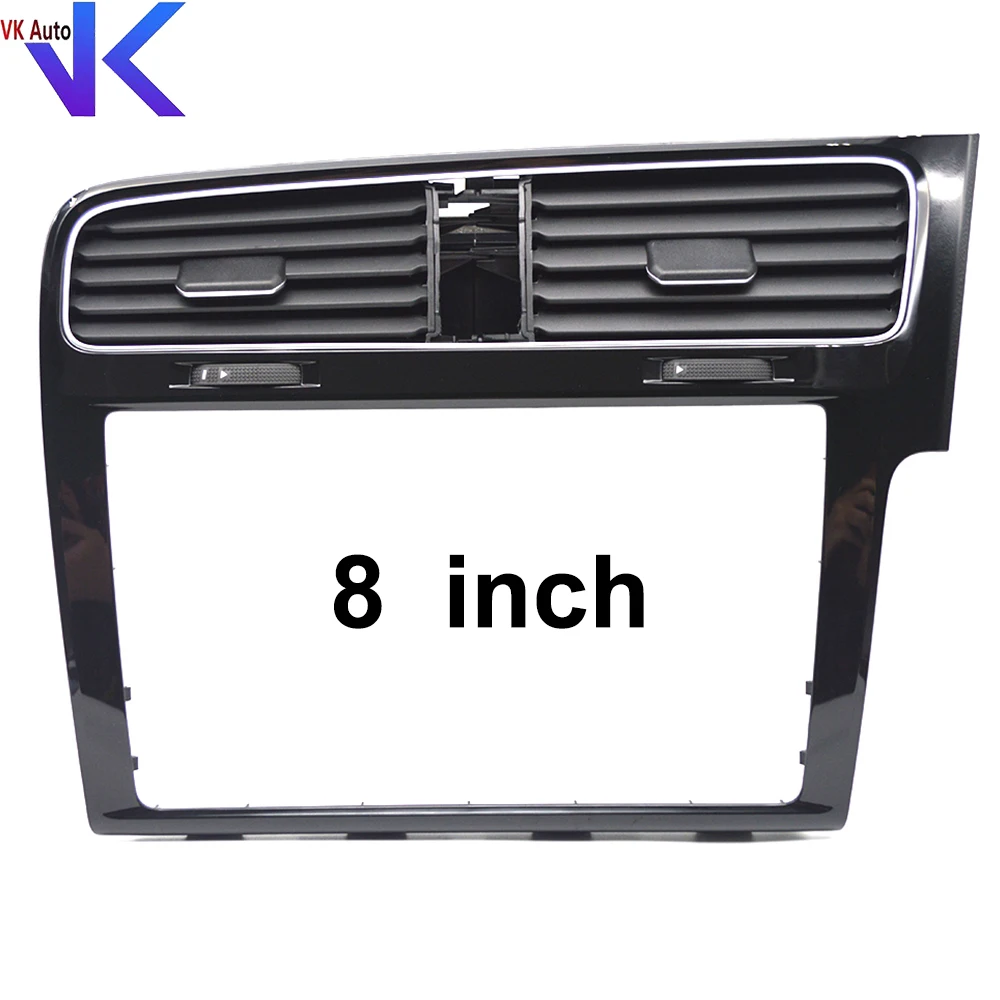

Golf MK7 (2013-2020) dashboard vent assemblies including the Front Dashboard Central A/C Heater Air Vent for Golf MK7 5GG 819 703 integrate with ambient lighting systems on higher trims. These vents include transparent light pipes that distribute RGB LED illumination. When replacing, verify whether your vehicle includes this feature by checking for additional electrical connectors behind the vent assembly.

Key Takeaways

• Always verify complete part numbers including suffix letters to ensure electrical compatibility with your specific vehicle build
• Piano paint trim pieces require careful handling and isopropyl alcohol cleaning for proper adhesive bonding
• Wiring harnesses must match your vehicle's options—heated seats, steering wheels, and rear climate control require additional pins
• Climate control modules require VCDS coding after installation to activate all features properly
• Quality LCD panels use IPS technology with uniform backlighting and wide viewing angles
• MQB platform vehicles share many parts but have critical differences in connector pinouts

Frequently Asked Questions

Can I upgrade from manual to automatic climate control using these parts?

Yes, but requires the complete upgrade harness, control module, temperature sensors, and VCDS coding. The Upgrade Climate Control Switch Panel Harness provides necessary wiring, but you must verify your vehicle has motorized blend doors already installed. Manual systems often use cable-operated doors that require replacement with electronic actuators. Professional coding is essential to activate dual-zone functionality.

Why do piano paint trim pieces develop a cloudy appearance over time?

Cloudiness results from micro-scratching caused by improper cleaning or UV degradation of the clear coat layers. Prevent this by using only microfiber cloths and pH-neutral cleaners. Avoid ammonia-based glass cleaners and paper towels. Once clouding occurs, restoration requires wet sanding with 2000-3000 grit sandpaper followed by polishing compound, but this removes material and should be done sparingly.

What causes climate control LCD displays to fail partially or completely?

LCD failure stems from three primary causes: cold solder joints on the PCB, failed backlight LEDs, or ribbon cable connector issues. Extreme temperature cycling expands and contracts solder joints until fracturing occurs. Most failures happen during winter when dashboard temperatures drop below -20°C. Some panels use ribbon cables connecting the LCD glass to the PCB that become intermittent if not properly seated.

Do aftermarket wiring harnesses match OEM quality and durability?

Quality varies significantly between suppliers. Premium aftermarket harnesses use the same Sumitomo or Yazaki connectors as OEM parts with proper terminal retention force and weather sealing. Economy versions may use incompatible terminals that don't lock properly or lack secondary retention clips. Check wire gauge meets specifications: 0.5-1.0mm² for signals, 1.5-2.5mm² for actuators. Proper crimping requires specialized tools; poor crimps cause voltage drop and overheating.
