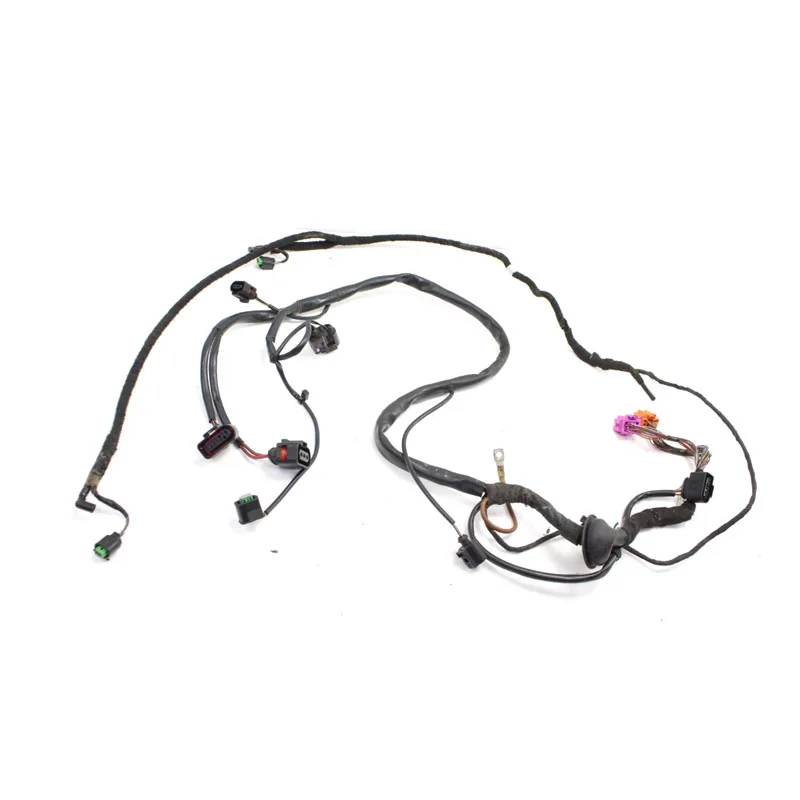

Windshield wiper motor wiring harnesses for Audi A4 and A6 models are critical electrical components that deliver power and control signals between the vehicle's electrical system and the wiper motor assembly. These harnesses are model-specific, with the A6 using part number 4F1971271P for 2005-2011 models and the A4 requiring 8E1971271E for 2002-2005 applications.

Understanding OEM Part Numbers and Fitment

The 4F1971271P wiring harness serves Audi A6 models from the C6 generation spanning 2005-2011. The part number format (4F1 971 271 P) follows Audi's standardized coding system where 4F1 denotes the A6 C6 platform, 971 indicates the wiring system category, and 271 specifies the wiper motor circuit. The suffix P represents a specific revision or variant within that part family.

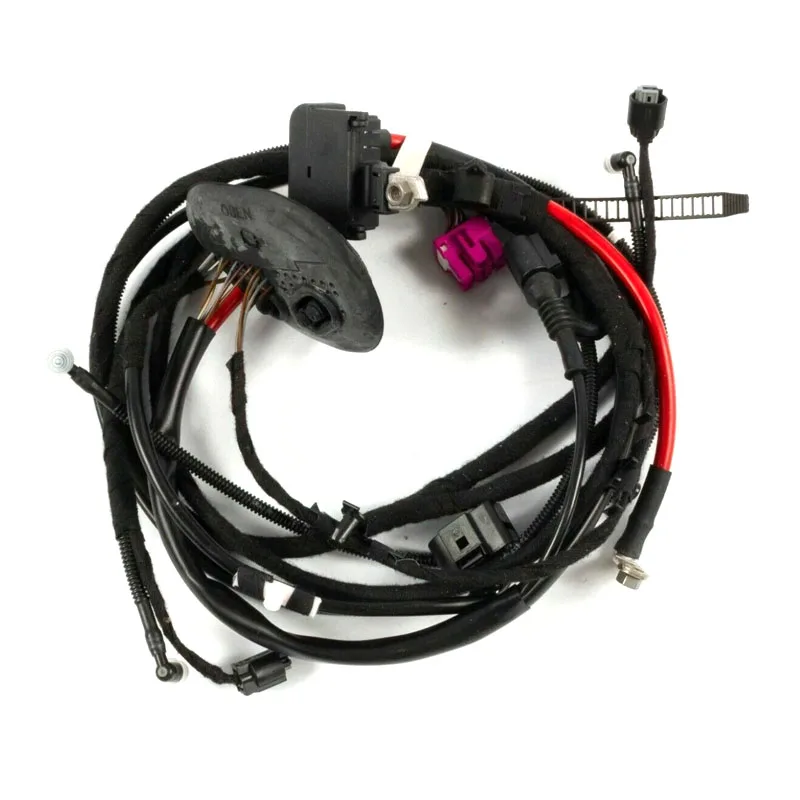

For earlier A4 models, the 8E1971271E harness covers the B6 and early B7 generations from 2002-2005. The 8E prefix identifies the B6/B7 A4 platform, while the E suffix indicates production changes or improvements made during the manufacturing cycle. These part numbers are not interchangeable between models due to connector differences and circuit configurations.

Common Failure Modes and Symptoms

Wiper motor wiring harnesses typically fail due to insulation breakdown from heat exposure near the engine bay, moisture intrusion at connector points, or physical stress from engine vibration. Early symptoms include intermittent wiper operation, wipers that stop mid-cycle, or complete failure to respond to switch inputs. The dashboard may display warning messages related to wiper system malfunctions.

Corrosion at terminal pins is particularly common in these Audi models because the harness routing passes through areas exposed to road spray and temperature extremes. The multi-pin connectors use brass terminals that can oxidize over time, creating high-resistance connections that affect motor performance. Visual inspection often reveals green corrosion or melted insulation near the motor connector.

OEM Versus Aftermarket Harness Quality

Original Equipment Manufacturer harnesses feature copper conductors with 1.5-2.5mm² cross-sections wrapped in heat-resistant PVC or polyethylene insulation rated for automotive environments. The wire gauge must handle the wiper motor's 5-8 amp current draw without voltage drop. Genuine Audi harnesses include molded strain reliefs at connection points and weather-sealed connectors meeting IP67 standards.

Aftermarket alternatives vary in build quality. Premium replacements replicate OEM specifications including correct wire colors, connector pin configurations, and harness length. Lower-tier options may use thinner conductors (below 1.0mm²), inadequate insulation thickness, or non-sealed connectors that accelerate failure. The connector housings should match OEM dimensions precisely to ensure proper mating with existing vehicle plugs.

Installation Considerations and Process

Replacement requires accessing the wiper motor assembly located beneath the cowl panel at the windshield base. Remove the plastic cowl trim pieces after taking off the wiper arms using a proper puller tool. The motor assembly typically mounts with three or four bolts accessible once the cowl is removed. Disconnect the battery negative terminal before beginning electrical work to prevent short circuits.

The harness connects to the motor via a multi-pin connector and routes through the firewall to connect with the vehicle's main electrical system. Note the exact routing path and any mounting clips before removal. New harnesses should follow the same path to avoid chafing against sharp edges or heat sources. Apply dielectric grease to connector pins before assembly to prevent corrosion.

Technical Specifications to Verify

Confirm the harness includes the correct number of circuits for your specific model. Base A4 and A6 models typically use 4-wire harnesses (power, ground, and two speed control signals), while models with rain sensors or heated washer systems may require 6 or 7-wire configurations. The connector shell must match both pin count and physical key arrangement to prevent incorrect installation.

Wire temperature rating should meet or exceed 105°C (221°F) for underhood applications. Check that terminals are crimped rather than soldered, as crimped connections better withstand vibration. The harness length varies by model year and whether the vehicle has left-hand or right-hand drive configuration, affecting routing requirements.

Troubleshooting Before Replacement

Before replacing the harness, verify the wiper motor itself functions properly by testing with direct 12-volt power applied to motor terminals. Check fuse integrity in positions F32 or F42 (depending on model year) using a multimeter. Inspect the wiper control stalk for internal failures that might mimic harness problems. Measure voltage at the harness connector while operating the wiper switch to isolate whether the issue originates upstream or at the harness itself.

Use a continuity tester to check each wire in the harness from motor connector to firewall plug. Infinite resistance indicates a break in the conductor, while unusually low resistance between different circuits suggests insulation failure and short circuits. Pay special attention to areas where the harness bends sharply or contacts metal surfaces.

Key Takeaways

• Part numbers 4F1971271P (A6 2005-2011) and 8E1971271E (A4 2002-2005) are platform-specific and not interchangeable
• Quality harnesses use 1.5-2.5mm² copper conductors with heat-resistant insulation rated above 105°C
• Common failure symptoms include intermittent operation, wipers stopping mid-cycle, and corrosion at connector pins
• Verify correct pin count, connector keying, and wire routing before installation to ensure proper fitment
• Apply dielectric grease to connectors and follow OEM routing paths to maximize harness lifespan

Frequently Asked Questions

Will these harnesses work on Audi models outside the specified year ranges?

No, the 4F1971271P is engineered specifically for A6 C6 platform (2005-2011) and the 8E1971271E for A4 B6/B7 (2002-2005). Different model years use alternative part numbers with different connector configurations, pin counts, and harness lengths that are not compatible.

How do I identify if my wiper problem is the harness versus the motor?

Test the motor by applying direct 12-volt power to its terminals. If the motor operates normally with direct power but fails through the harness, the wiring is faulty. Check for voltage at the motor connector during switch operation—no voltage indicates upstream electrical issues, while voltage present but no motor function suggests motor failure.

Can I repair a damaged harness instead of replacing it?

Temporary repairs using heat shrink tubing and solder are possible for minor damage to individual wires, but complete harness replacement is recommended for corrosion damage, multiple wire failures, or connector housing cracks. Repairs often fail quickly in harsh underhood environments, making full replacement more reliable long-term.

What tools are needed for harness installation?

Basic installation requires a wiper arm puller, trim removal tools, 10mm socket for motor mounting bolts, wire crimpers if modifying connectors, and dielectric grease. A multimeter helps verify proper connections before reassembly. Allow 1-2 hours for complete installation including cowl removal and reassembly.
