Mirror covers and exterior trim panels for VW and Audi models provide functional upgrades beyond aesthetics, particularly when integrated with advanced driver assistance systems like lane change assist and blind spot monitoring. These components require precise OEM part number matching and electrical compatibility verification for proper installation.

VW Golf 7/7.5 Mirror Covers With Integrated Lighting

The Side Mirror Case Chrome Door Wing Cover Cap With Lights For Golf 7 R mk7 7.5 represents a direct replacement option for Golf models spanning the Mk7 generation (2012-2017) and the facelift 7.5 version (2017-2020). Chrome mirror covers for these models integrate the turn signal lighting module, requiring connection to the factory wiring harness through a 3-pin connector standardized across the platform.

Installation requires careful removal of the original mirror cover by releasing three spring clips located at the bottom edge and one locking tab near the hinge point. The electrical connector must be disconnected before fully removing the old cover. Proper seating of the new cover ensures water-tight seals around the LED housing, preventing moisture ingress that can cause premature LED failure or corrosion of electrical contacts.

Chrome Finish Durability Considerations

Chrome-plated ABS plastic covers vary significantly in coating quality. Triple-layer chrome plating (copper base, nickel intermediate, chrome top) provides superior UV resistance and prevents the yellowing common with single-layer coatings. Mirror covers without proper UV stabilizers typically show degradation within 12-18 months of continuous sun exposure, particularly in southern climates where surface temperatures exceed 70°C.

Passat B8 Mirror Covers With Lane Assist Integration

Passat B8 models (chassis code 3G, 2015-2022) feature two distinct mirror cover configurations depending on equipment level. The Black Rearview Side Mirror Cover With lane assist for Passat B8 uses OEM part numbers 3G0857537J (driver side) and 3G0857538J (passenger side), specifically designed for vehicles equipped with Side Assist technology. These covers house the blind spot warning LED in the lower corner of the mirror housing.

The White color Mirror Case Covers & Blind Spot LANE CHANGE Side Assist Light FOR Passat b8 offers an alternative color option with identical functionality. Lane change assist systems require the LED warning indicator to be positioned at specific angles—typically 45-50 degrees from vertical—to remain in the driver's peripheral vision without requiring head movement. Aftermarket covers must maintain this positioning to preserve system effectiveness.

Electrical Compatibility Verification

Side Assist-equipped mirrors use a 5-pin connector instead of the 3-pin used on basic models. Pin assignments include ground, turn signal positive, side assist LED positive, CAN-bus high, and CAN-bus low for communication with the driver assistance module. Installing assist-equipped covers on non-equipped vehicles requires coding via VCDS or OBDeleven to activate the warning LED circuit, though the radar sensors must still be physically installed for functional operation.

Audi Q3 Panoramic Camera Mirror Covers

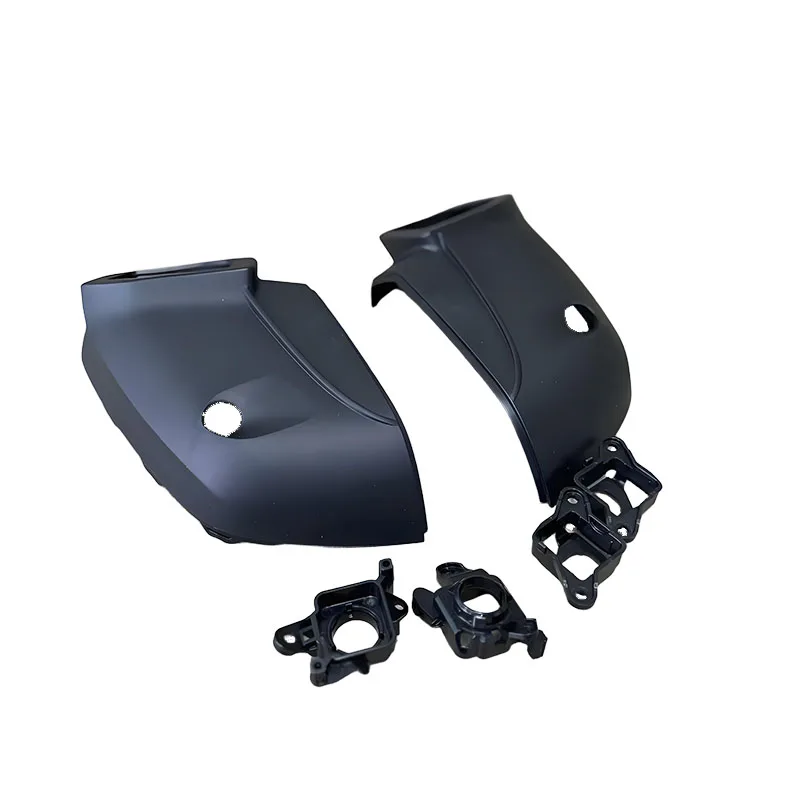

The 360 Panoramic Car Rear Mirror Bottom Cover For Q3 2019 - 2025 addresses the specific mounting requirements for second-generation Q3 models (F3 chassis) equipped with Area View camera systems. These bottom covers house the downward-facing camera lens used for the 360-degree surround view display, positioned to capture the area immediately beside the vehicle at curb height.

Camera housing covers must maintain IP67 waterproof ratings (dust-tight, immersion to 1 meter for 30 minutes) to protect sensitive optical components. The lens window requires optical-grade polycarbonate with scratch-resistant coating, as any surface imperfections directly degrade image quality. Aftermarket covers using standard acrylic instead of polycarbonate show visible image distortion at the edges of the camera's 190-degree field of view.

Installation Alignment Requirements

Area View systems require camera alignment within ±2 degrees of factory specification to maintain accurate stitching between the four camera feeds. Mirror-mounted cameras include adjustment screws accessible through the mirror housing that allow vertical angle correction. After installing replacement bottom covers, the camera calibration procedure should be performed through dealer-level diagnostics to ensure proper image alignment and avoid blind spots in the composite view.

Audi Q7 Headlight Trim Panel Replacement

The For Q7 4M Right Side Headlights Trim Cover Panel 4M0805286A is a body panel component for second-generation Q7 models (4M chassis, 2015-present), not a mirror cover. This trim panel forms the lower edge of the headlight assembly mounting area, protecting the headlight adjustment mechanisms and wiring connections from road debris and water spray.

Part number 4M0805286A specifically fits the right (passenger) side and differs from the left-side panel in mounting tab positioning. These panels clip into place using six retention points along the upper edge and two fasteners at the lower corners requiring 8mm sockets. Damaged or missing trim panels allow water accumulation behind the headlight assembly, potentially causing condensation inside the headlight housing and corrosion of adjustment servo motors.

Material Quality Indicators

Aftermarket mirror covers and trim panels use materials ranging from basic ABS plastic to OEM-spec PC/ABS blends. PC/ABS combines polycarbonate's impact resistance with ABS's ease of processing and surface finish quality. Parts manufactured from pure ABS become brittle below -10°C and may crack during winter removal or from minor impacts. High-quality covers weigh 180-220 grams due to thicker wall sections (2.5-3mm versus 1.5-2mm in economy versions).

Chrome plating thickness should measure minimum 0.3 microns for the chrome layer, 3-5 microns for nickel, verified through coating thickness gauges. Painted covers require automotive-grade polyurethane clearcoat with UV inhibitors meeting ASTM G155 weathering standards. Without proper clearcoat, paint oxidation begins within 6-8 months, appearing as whitish haze on dark colors or yellowing on light colors.

Installation Best Practices

Mirror cover installation in temperatures below 10°C increases breakage risk due to reduced plastic flexibility. Warming covers to 20-25°C using a heat gun on low setting (never exceeding 60°C) improves pliability. Apply silicone dielectric grease to all electrical connectors before mating to prevent corrosion and ensure reliable contact. Spring clips require 3-5kg of force for proper engagement; excessive force indicates misalignment rather than need for more pressure.

Thread-locking compound (medium strength, blue color) should be applied to any fastener screws to prevent loosening from vibration. Torque specifications for mirror housing screws typically range 3-5 Nm; overtightening cracks mounting bosses in plastic housings. Allow 24 hours curing time for any adhesive-backed covers before car washing or high-speed driving to ensure full bond strength development.

Key Takeaways

• Verify exact OEM part numbers for Passat B8 mirrors (3G0857537J/538J) to ensure lane assist compatibility
• Golf 7/7.5 mirror covers require 3-pin electrical connection for integrated turn signals
• Q3 panoramic camera covers demand IP67 waterproof rating and optical-grade lens windows
• PC/ABS material blend provides better impact resistance than pure ABS, especially in cold climates
• Triple-layer chrome plating (minimum 0.3 micron chrome layer) prevents UV degradation and yellowing
• Side Assist equipped mirrors use 5-pin connectors with CAN-bus communication circuits

Frequently Asked Questions

Can I install Side Assist mirror covers on a Passat B8 without Side Assist?

Physical installation is possible using the same mounting points, but the LED warning indicators require vehicle coding via VCDS/OBDeleven to activate the circuits. Functional operation requires installing the radar sensor modules in the rear bumper and enabling the system through adaptation channels, making it impractical for most retrofits focused solely on appearance.

Do chrome mirror covers affect radar or sensor performance?

Chrome plating on mirror covers does not interfere with radar sensors, which are located in the bumper assemblies. However, covers housing blind spot LED indicators must maintain proper positioning to keep warning lights in the driver's peripheral vision zone. Poorly designed aftermarket covers may position LEDs outside this 45-50 degree angle, reducing effectiveness.

How do I verify compatibility for Q3 panoramic camera covers?

Check your Q3's equipment code using the VIN decoder or sticker in the trunk area. Code KA6 indicates Area View camera system. F3 chassis Q3 models (2018-present) have different camera positioning than first-generation models, requiring generation-specific covers. The camera lens window must be optical-grade polycarbonate to avoid image distortion.

What causes mirror covers to crack during installation?

Installation below 10°C when plastic becomes brittle is the primary cause. Excessive force during clip engagement indicates misalignment rather than need for more pressure. Spring clips require 3-5kg force maximum. Warming covers to 20-25°C before installation significantly reduces breakage risk, especially with pure ABS material rather than PC/ABS blends.
